Headlights with High Intensity Gas Discharge (HID) Lamps, assembly

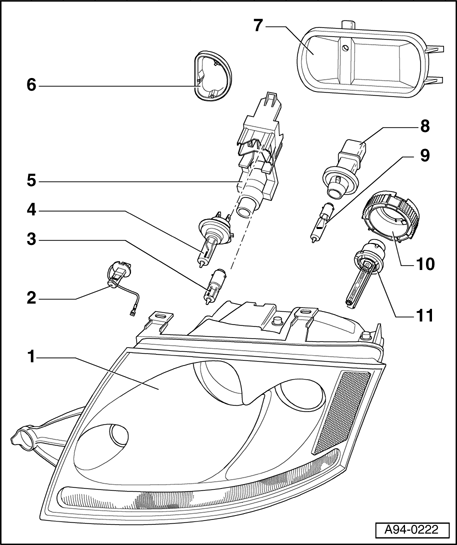

Fig 1: Headlights With High Intensity Gas Discharge Lamps Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

WARNING:

HIGH VOLTAGE!
Always disconnect negative ( - ) battery terminal prior to servicing any parts of the HID lamp system marked with the yellow "HIGH VOLTAGE!" symbol.
After disconnecting battery, briefly turn headlights on and off in order discharge any residual voltage.

NOTE:

After performing any repairs or service that could affect headlight aim, check/adjust aim. Refer to .Halogen headlights, adjusting . See also: 01 MAINTENANCE .
Headlights with HID lamps are equipped with automatic vertical headlight aim control system. Refer to General information .

Fig 2: Headlights With High Intensity Gas Discharge Lamps Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Headlight housing

Lense bonded to housing, cannot be replaced separately.
From approx. 04.00, High Intensity Gas Discharge Lamp Control Modules -J343- and -J344 are mounted directly to housing.
Removing and installing. Refer to Headlight housing, removing and installing .

2 - Fog Light bulb -L22-/-L23

3 - Parking/side marker light bulb -M1-/-M3-

4 - High Beam Headlight bulb -M30-/-M32-

5 - High beam and parking/side marker light bulb holder

Fig 3: Headlights With High Intensity Gas Discharge Lamps Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

6 - Cover (small)

7 - Cover (large)

8 - Turn signal bulb holder

9 - Front Turn Signal Light bulb -M5-/-M7-

10 - Securing ring (bayonet connection) for HID bulb

11 - HID bulb -L13-/-L14-
