Halogen headlights, assembly

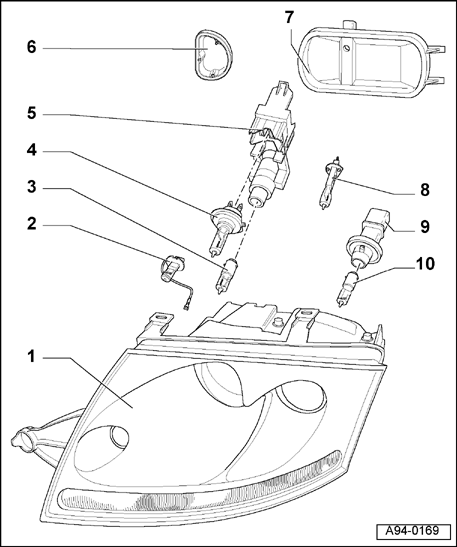

Fig 1: Halogen Headlights Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE: After performing any repairs or service that could affect headlight aim, check/adjust aim. Refer to Halogen headlights, adjusting . See also: 01 MAINTENANCE .

1 - Headlight housing

Lense bonded to housing, cannot be replaced separately
Removing and installing. Refer to Headlight housing, removing and installing .

2 - Fog Light bulb -L22-/-L23-

H3 - 12 V, 55 W
Replacing. Refer to Fog light bulbs, replacing

3 - Parking/side marker light bulb -M1-/-M3-

H6 - 12 V, 6 W
Replacing. Refer to Parking/side marker light bulb, replacing

4 - High Beam Headlight bulb -M30-/M32-

H7 - 12 V, 55 W
Replacing. Refer to Halogen high beam bulb, replacing

Fig 2: Halogen Headlights Assembly

Courtesy of VOLKSWAGEN UNITED STATES, INC.

5 - Bulb holder

for high beam headlight bulb
for parking/side marker light bulb

6 - Cover (small)

7 - Cover (large)

8 - Low Beam Headlight bulb -M29-/M31-

H1 - 12 V, 55 W
Replacing. Refer to Halogen low beam bulb, replacing

9 - Turn signal light bulb bolder

10 - Front Turn Signal Light bulb -M5-/-M7-

H21 - 12 V, 21 W
Replacing. Refer to Turn signal bulb, replacing
