Headlight washer spray jets, removing and installing

Fig 1: Washer Fluid Reservoir Hose

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• The two headlight washer spray jets are supplied from the washer fluid reservoir via hose -1-.

Removing

• Remove front bumper

Refer to 63 BUMPERS

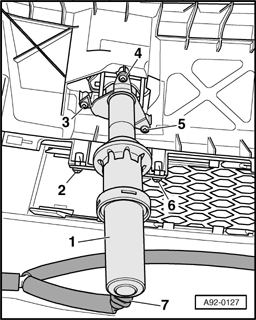

Fig 2: Headlight Washer Spray Jets Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Depress retainer and remove hose coupling -7- at jet -1-.
• Remove screws -3-, -4- and -5-.
• Remove screws -2- and -6- at mounting.
• Remove spray jet.

Installing

Install in reverse order of removal, noting the following:

• Install front bumper

Refer to 63 BUMPERS .

Tightening torque
