Fiber Optic Cables, Repairing

Special tools, testers and auxiliary items required

Fig 1: Fiber Optic Plier Repair Set VAS 6223

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fiber Optic Plier Repair Set VAS 6223

Fig 2: Air Hose Pliers VAS 6228

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Air Hose Pliers VAS 6228

Fig 3: Pliers For Fiber-Optic Conductor VAS 6223/1 Cutting Device

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Checking remaining cut indicator

Start by checking remaining cut indicator:

The Pliers For Fiber-optic Conductor VAS 6223/1 cutting device can perform approx. 1260 cuts. The blade is rotated for each further cut.

The remaining cut indicator - arrow - displays the last 150 cuts available.

Once no further cuts are available, the blade is blocked. It must then be replaced → Pliers For Fiber-optic Conductor VAS 6223/1 instructions.

Fig 4: Preparing Pliers For Fiber Optic Conductor VAS 6223/1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Preparing Pliers For Fiber Optic Conductor VAS 6223/1

Release transportation safeguard at cutter by loosening Allen bolt - arrow -.

Fig 5: Fiber Optic Cable, Cutting To Length

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Fiber optic cable, cutting to length

Establish length of fiber optic cable required.

Open Pliers For Fiber Optic Conductor VAS 6223/1 and insert fiber-optic cable - 1 - into trimming station.

Close cutting tool to cut fiber optic cable to length.

Fig 6: Opening Pliers For Fiber Optic Conductor VAS 6223/1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Stripping

Open Pliers For Fiber Optic Conductor VAS 6223/1.

Stripping lever must be in lower position - arrow -.

Place fiber optic cable - 1 - in stripping point.

Fiber-optic cable must terminate flush to rear side of cutting pliers.

Fig 7: Closing Pliers For Fiber Optic Conductor VAS 6223/1 Until Stop And Keep Closed

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Close Pliers For Fiber Optic Conductor VAS 6223/1 until stop and keep closed.

Lift up stripping lever - arrow -.

Open cutting tool and remove fiber optic cable - 1 -.

Detach separated section of insulation from fiber optic cable.

Fig 8: Sliding Fiber Optic Cable Into Cutting Point

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Precision cutting (production of optical end face)

Slide fiber optic cable - 1 - into cutting point.

Insulation must make contact with cutting point stop - arrow -.

Close Pliers For Fiber Optic Conductor VAS 6223/1.

Fig 9: Pressing Cutting Unit Down

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Press cutting unit - arrow - down.

Open Pliers For Fiber Optic Conductor VAS 6223/1 and remove fiber-optic cable - 1 -.

NOTE:

Fiber optic cable is only to be placed on an absolutely clean surface.

Fig 10: Preparing Pliers For Fiber Optic Conductor VAS 6223/1

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Activating transportation safeguard

Close Pliers For Fiber Optic Conductor VAS 6223/1.

Secure hex socket screw - arrow - for transportation safeguard on blade.

Fig 11: Opening Securing Lever On Crimping Pliers For Fiber-Optic Cable VAS 6223/2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Attaching brass pin contact to fiber optic cable

Open securing lever on Crimping Pliers For Fiber-optic Cable VAS 6223/2 - arrow 1 - and - arrow 2 -.

Fig 12: Closing Securing Lever On Crimping Pliers For Fiber-Optic Cable VAS 6223/2

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Insert brass pin contact - 1 - in mount.

Close securing lever on Crimping Pliers For Fiber-optic Cable VAS 6223/2 - arrow -.

Fig 13: Sliding Fiber Optic Cable Into Brass Pin Contact As Far As Spring-Loaded Stop

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Slide fiber optic cable - 2 - into brass pin contact - 1 - as far as spring-loaded stop.

Slide fiber-optic cable further in up to fixed stop and close Crimping Pliers For Fiber-optic Cable VAS 6223/2.

Open Crimping Pliers For Fiber-optic Cable and remove fiber-optic cable with brass pin contact.

CAUTION: Do not excessively bend or kink fiber optic cables. (min. bending radius 25 mm).

Fig 14: Checking Proper Attachment Of Brass Pin Contact To Fiber Optic Cable

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Check proper attachment of brass pin contact - 2 - to fiber optic cable - 1 -.

4 crimp points must be visible at brass connection pin.

The brass pin contact must not be able to be removed by hand from fiber-optic cable.

End face of fiber optic cable is located 0.01 to 0.1 mm behind brass pin contact (visual inspection).

NOTE:

Plug-in couplings are available for connecting fiber optic cables
For installing new fiber optic cable in wiring harness connector, refer to → Fiber Optic Cable, Separating from Wiring Harness Connector .

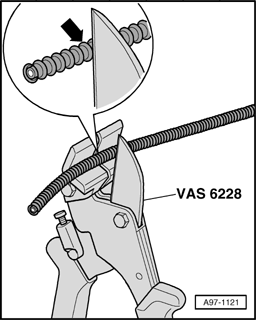

Fig 15: Cutting Corrugated Tube To Appropriate Length Using Air Hose Pliers VAS 6228 Or A Sharp Knife

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Installing corrugated tube on fiber-optic cable

Cut corrugated tube to appropriate length.

Use air hose pliers VAS 6228 or a sharp knife for cutting.

The corrugated tube must not be cut through using a side cutter under any circumstances

The corrugated tube must be cut on the wave peak - arrow - , not in the wave trough.

Fig 16: Guiding Fiber-Optic Cable Into Crimping Pliers For Fiber-Optic Cable VAS 6223/10

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Guide fiber-optic cable into Crimping Pliers For Fiber-optic Cable VAS 6223/10 as shown in illustration.

Position Crimping Pliers For Fiber-optic Cable at slot of corrugated tube.

Position Crimping Pliers For Fiber-optic Cable at slot of corrugated tube. By doing this, fiber-optic cable is fed in corrugated tube.
