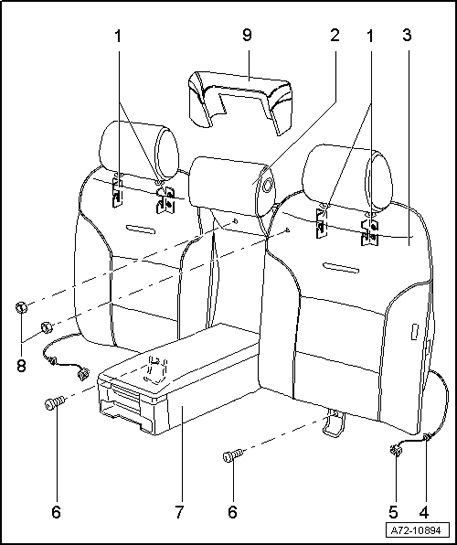

Rear Backrest, Removing and Installing

1 - Center bearings (4x)

2 - Center headrest

3 - Rear seat backrest

• Removing

• Remove rear seat bench → Rear Bench Seat, Removing and Installing .
• Disconnect harness connectors for side airbag - 4  - (2x) → Side airbag connector .
• With seat heater: Disconnect harness connectors for seat heater - 5  - (2x).
• Connect Airbag Adapter VAS 6229 to harness connectors - 4  - and - 5  -.

• Remove bolts - 6  - (qty. 2).
• Pull center headrest - 2  - upward.
• Fold center armrest - 7  - downward.
• Unclip the rear shelf trim - 9  - upward.

• Remove nuts - 8  - (qty. 2).
• Slide rear backrest - 3  - upward out of center bearings - 1  - (4x) and pull out rear backrest - 3  - toward front.

• Installing

• Engage rear backrest - 3  - into center bearings - 1  - (4x).
• Continue to install rear backrest - 3  - in reverse order of removal.

4 - Side airbag connector

5 - Seat heating connector

6 - Screws, (qty. 2)

7 - Center armrest

8 - Nuts (qty. 2)

9 - Rear shelf trim
