Vehicle Tool Kit and Warning Triangle, Removing and Installing

NOTE:

For the 2008 Audi A8, The towing eye/loop can be located either in the vehicle tool kit or the spare wheel well storage compartment.

Removing

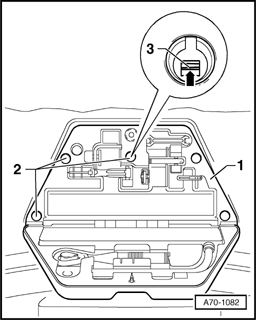

Fig 1: Vehicle Tool Kit And Warning Triangle, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Open vehicle tool kit and warning triangle - 1 -.
Unclip covers - 2 - (5x).
Carefully press tabs - 3 - upward in -direction of arrow- using a flat screwdriver.
Remove vehicle tool kit and warning triangle.

Installing

Installation is reverse of removal. Observe the following when doing so:
