Lower A-Pillar Trim, Removing and Installing

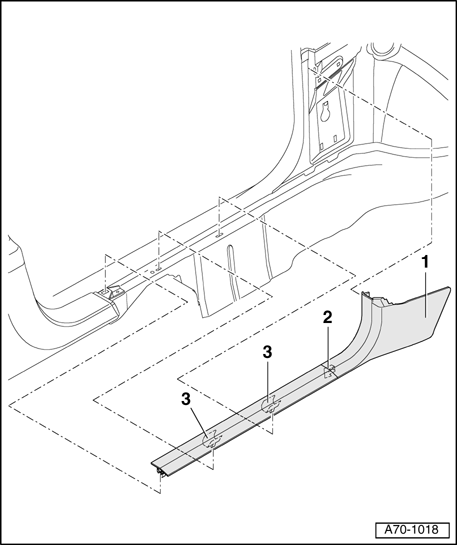

Fig 1: Lower A-Pillar Trim, Bracket & Clips

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Lower A-pillar trim panel

• Removing

• Unclip lower A-pillar trim - 1  - out of both clips - 3  - (2x).
• Remove lower A-pillar trim - 1  - to the rear.

• Installing

• Slide lower A-pillar trim - 1  - at front into foot rest.
• Engage lower A-pillar trim - 1  - into bracket - 2  -.
• Clip lower A-pillar trim - 1  - on to both clips - 3  - (2x).
• Make sure that door rubber is pulled cleanly over lower A-pillar trim.

2 - Bracket

3 - Clips (qty. 2)
