Luggage Compartment Liner, Removing and Installing

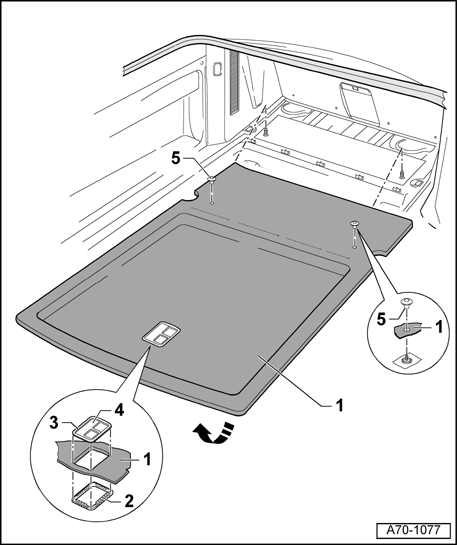

Fig 1: Luggage Compartment Liner Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Luggage compartment floor covering

• Removing

• Unscrew clip nuts - 5  -.
• Raise luggage compartment floor mat - 1  - in direction of arrow and remove it from vehicle.

• Installing

Installation is reverse of removal.

2 - Luggage compartment floor covering bracket retainer

3 - Luggage compartment floor covering bracket

4 - Handle on luggage compartment floor covering bracket

• Removing

• Lift up handle - 4  - of holder - 3  -.
• Remove holder - 3  - at handle - 4  - upward from mount - 2  -.

• Installing

Installation is reverse of removal.

5 - Clip nut
