Rear Parking Aid Warning Buzzer, Removing and Installing

• Component location: At rear right beneath rear shelf

Special tools, testers and auxiliary items required

Fig 1: Pry Lever 80-200

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Pry lever 80 - 200

Removing

Fig 2: Using Pry Lever 80 - 200 To Pry Cover Grille With High-Level Brake Light Out Of Rear Shelf

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Switch off ignition and remove ignition key.
• Use Pry lever 80 - 200 to pry cover grille with high-level brake light out of rear shelf - arrow 1  -.
• Pull out cover grille to front - arrow 2  -.
• Disconnect connector of high-level brake light.

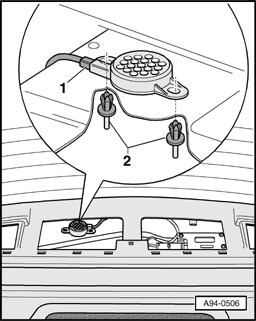

Fig 3: Electrical Connector & Spring Pins

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Disconnect electrical connector - 1  -.
• Press out spring pins - 2  - of expanding clips.
• Lift warning buzzer out of luggage compartment partition.

Installing

Install in reverse order of removal, observing the following:

• Unfasten rear edge of lining for luggage compartment partition.
• Press spring pins into expanding clips.
