Washer fluid reservoir, removing and installing
NOTE:
The washer fluid reservoir supplies washer fluid to both the windshield washers and headlight washer system where equipped.
CAUTION:
Before beginning repairs on the electrical system:
- Switch off all electrical consumers.
- Switch ignition off and remove ignition key.
- Washer fluid reservoir -1- is located at rear of left wheel housing and secured to fender and A-pillar.
Removing
- Lift cap for washer fluid reservoir and remove circlip from filler connection.
- Remove front left wheel and wheel housing liner.
Refer to 66 EXTERIOR EQUIPMENT

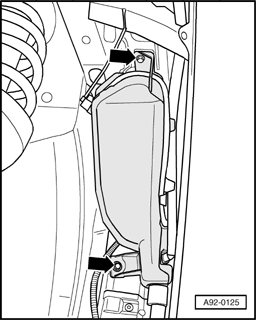

- Remove screws -arrows-.
- Lower reservoir slightly in fender opening.

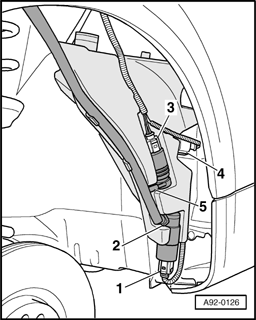

- Disconnect electrical connections -1-, -3- and -4-
- Depress retainer and remove washer hose coupling -2- from pump.
- Remove washer hose -5- from pump.
- Remove washer fluid hoses from retainers (clips).
Installing
Install in reverse order of removal, noting the following:
NOTE:
Ensure washer hose couplings engage audibly when reinstalling.
Tightening torque
| Component | Nm |
| Washer fluid reservoir to body | 7 |
