Testing pressure

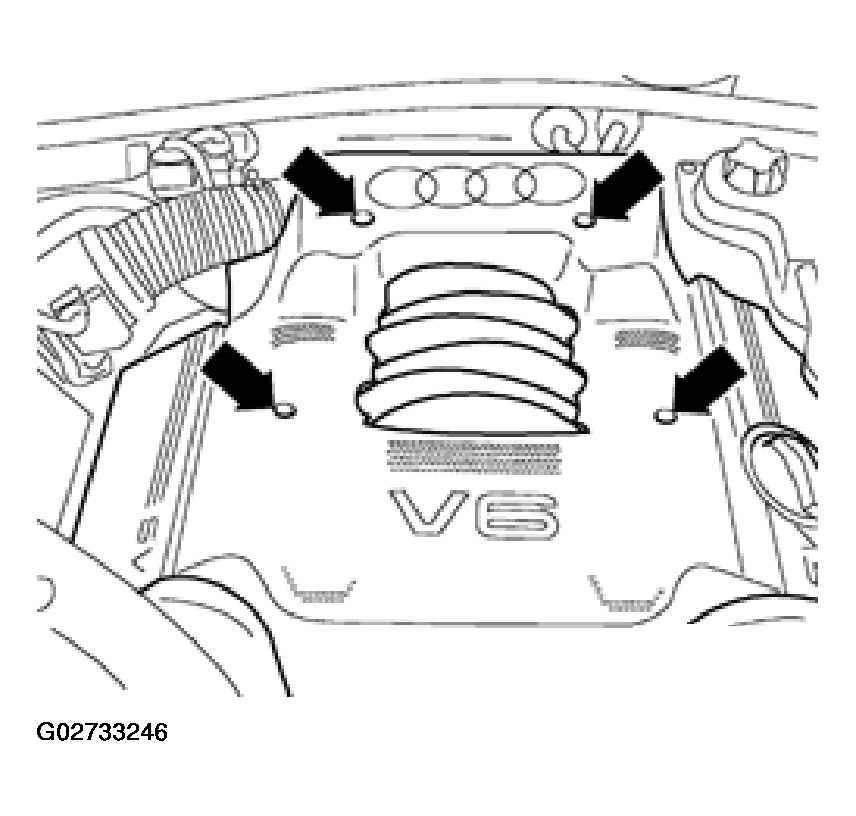

- Unclip upper part of engine cover and remove.
Courtesy of AUDI OF AMERICA, INC.
- Pinch off intake line and return line using 3094 hose clamps.
Courtesy of AUDI OF AMERICA, INC.

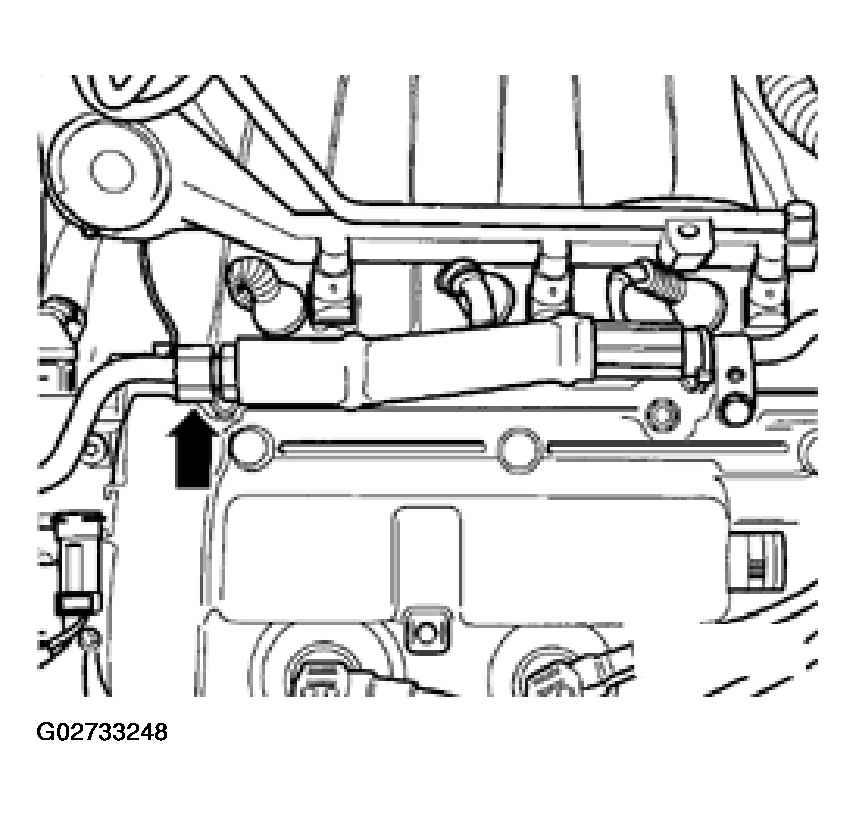

- Unbolt line from expansion hose (arrow), counterhold hex bolt of expansion hose.
- Bolt VAG1402 pressure gauge to part of expansion hose that leads to power steering pump.
Courtesy of AUDI OF AMERICA, INC.
- Close shut-off on pressure gauge (lever faces toward left)
- Remove 3094 hose clamps.
- If necessary, add fluid to power steering fluid reservoir.
Courtesy of AUDI OF AMERICA, INC.
