Faults in charge pressure control function

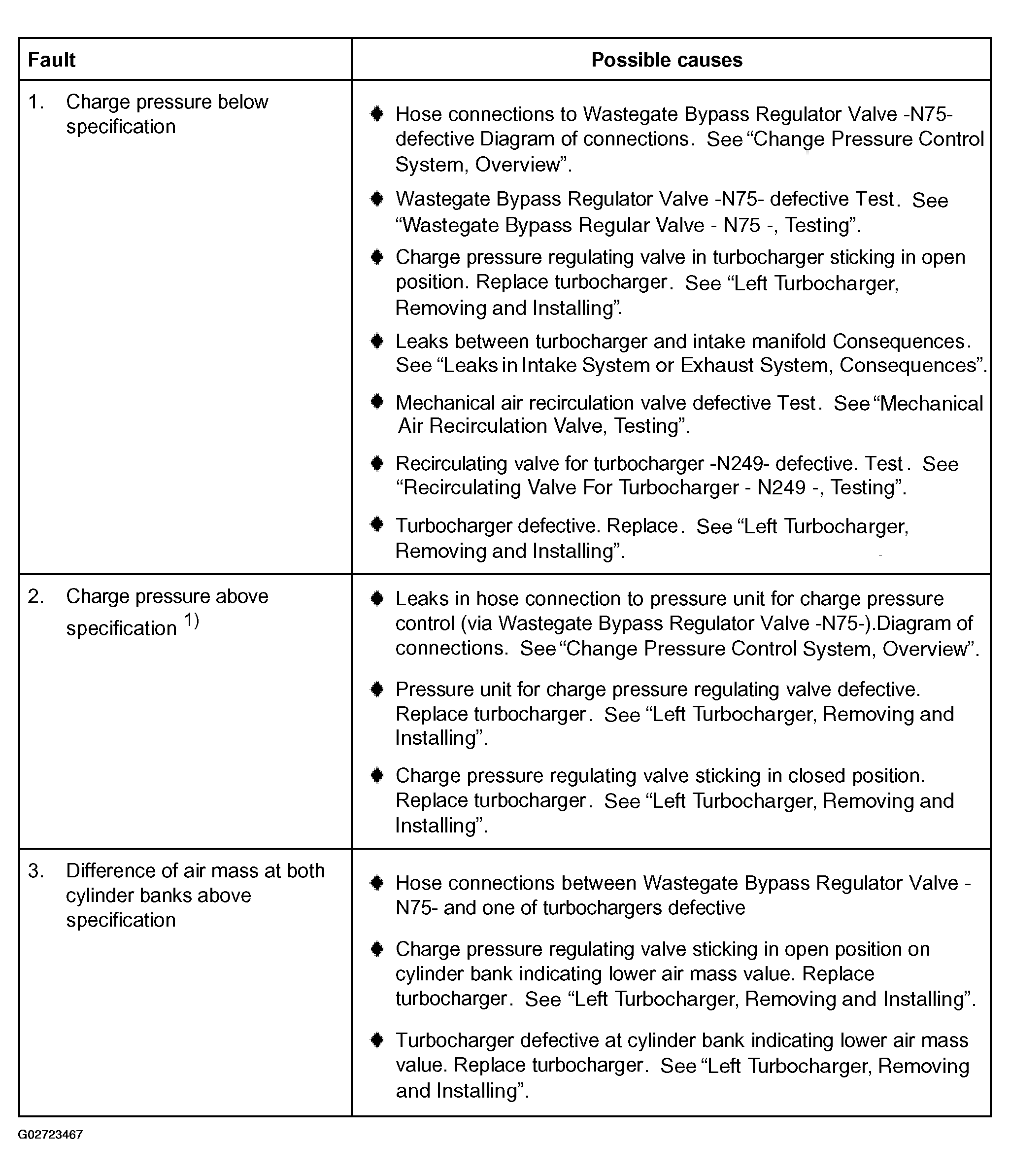

Fig 1: Faults In Charge Pressure Control Function Troubleshooting Chart

G02723467

Courtesy of AUDI OF AMERICA, INC.
