Secondary Air Injection (AIR) Pump Motor -V101-, removing and installing: Removing

Remove right front wheel
Remove front right wheelhousing liner in forward area.
Remove nuts (arrows) at bracket for Secondary Air Injection (AIR) pump.

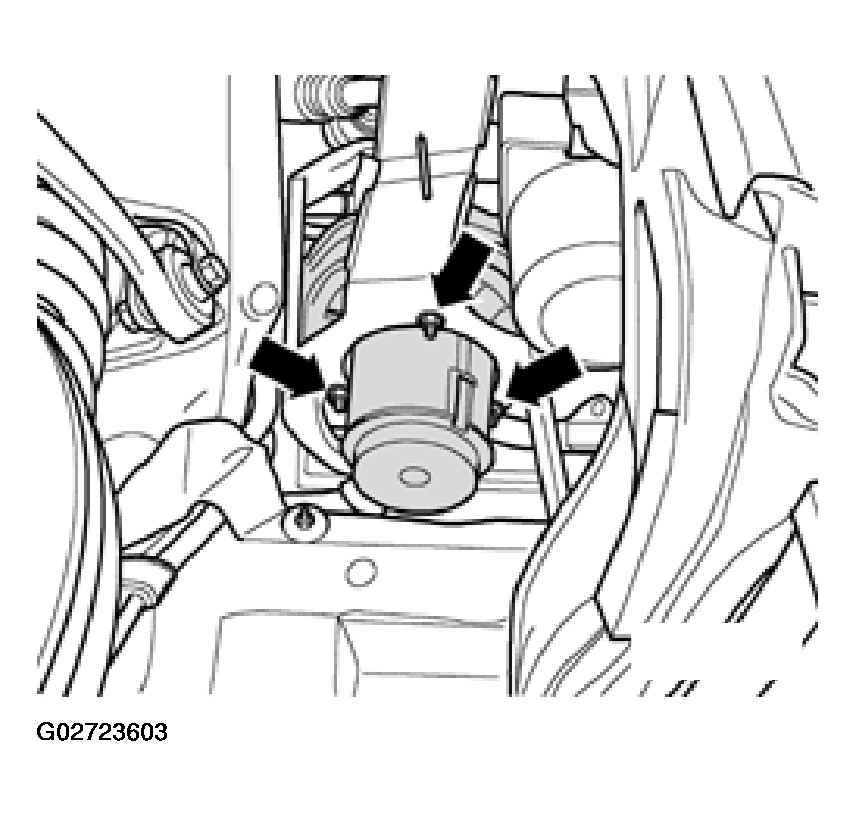

Fig 1: Removing Nuts At Bracket For Secondary Air Injection (Air) Pump Motor

G02723603

Courtesy of AUDI OF AMERICA, INC.

Disconnect air hose -2-. See Fig 2.
Unplug electrical connector -1-.
Detach Secondary Air Injection (AIR) Pump Motor -V101- from bracket.

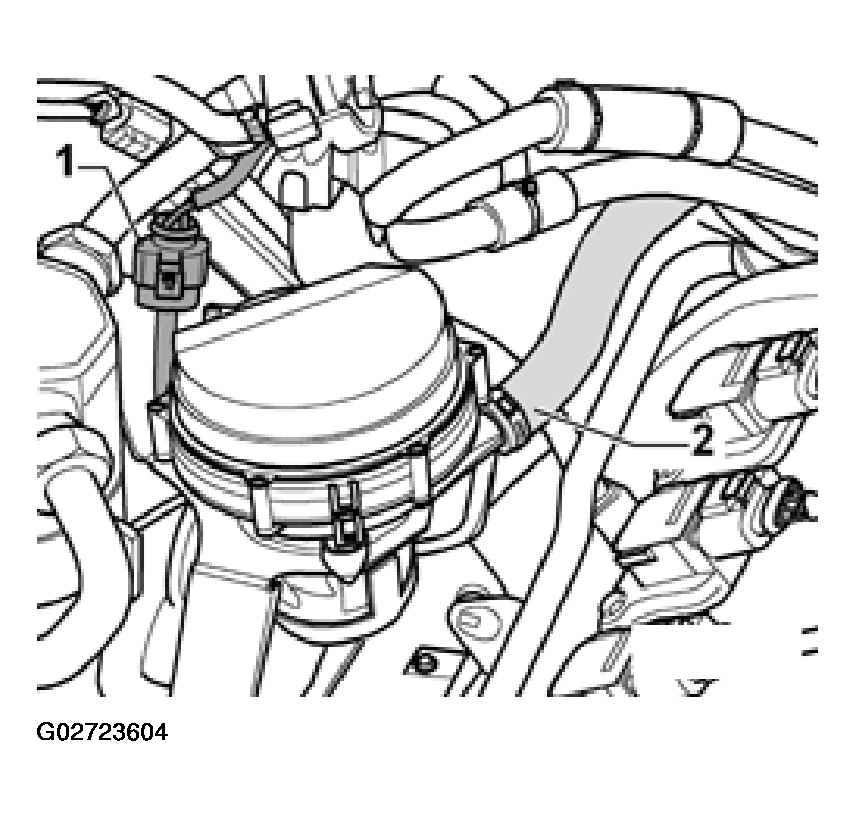

Fig 2: Detaching Secondary Air Injection (Air) Pump Motor From Bracket

G02723604

Courtesy of AUDI OF AMERICA, INC.
