Principle of operation

Due to extra mixture enrichment during cold-start phase, an increased amount of unburnt hydrocarbons is carried in exhaust gas. The secondary air system improves the afterburning (oxidation) process in the catalytic converter, and in this way reduces toxic emissions. Heat generated by oxidation accelerates "light off" of catalytic converter and significantly improves exhaust gas quality during warm-up.

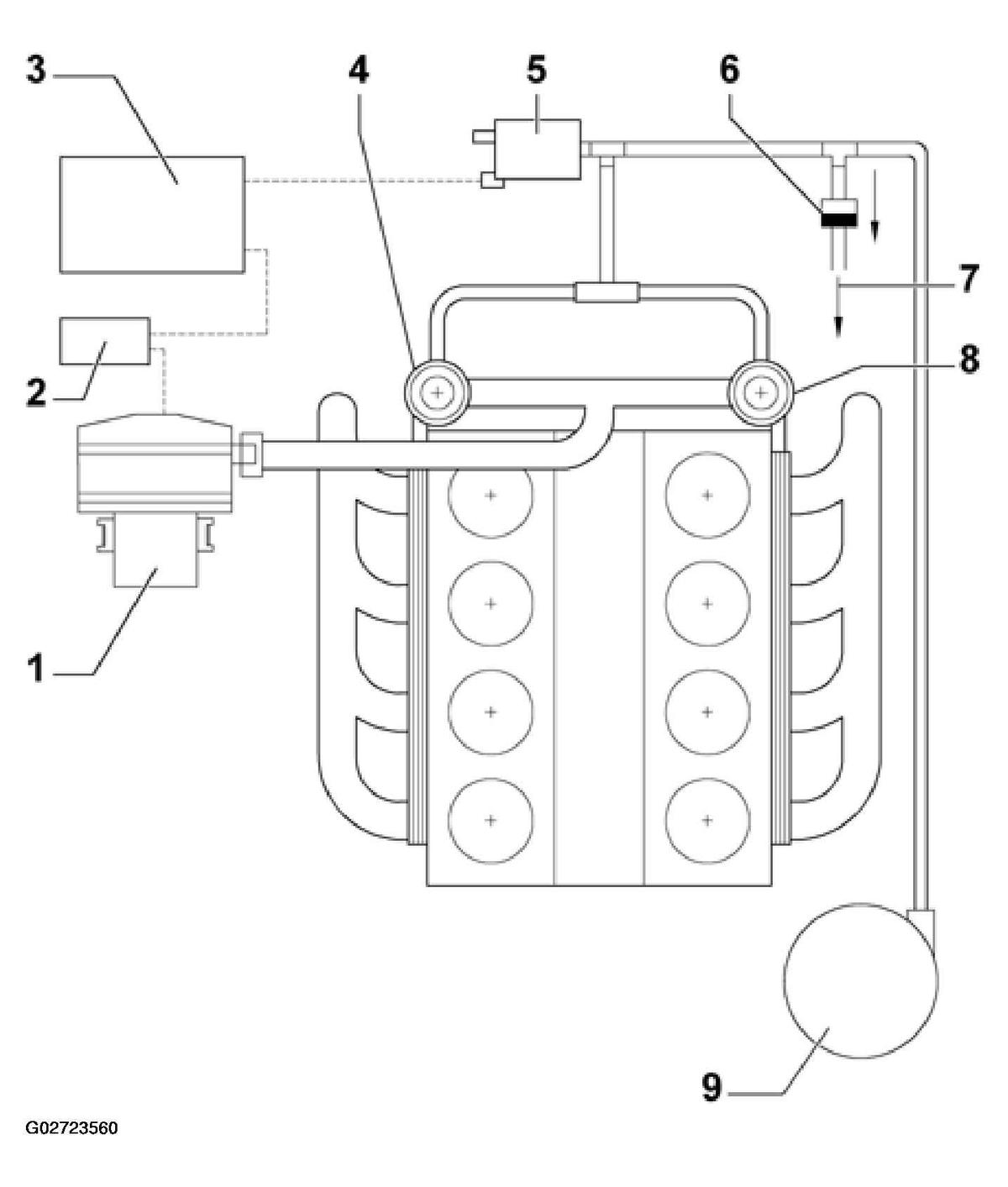

Fig 1: Overview Of Secondary Air System
G02723560Courtesy of AUDI OF AMERICA, INC.
