Combination valve for secondary air system
Combination valve for secondary air system
At rear of cylinder heads
NOTE:
Illustration shows valve on left side.

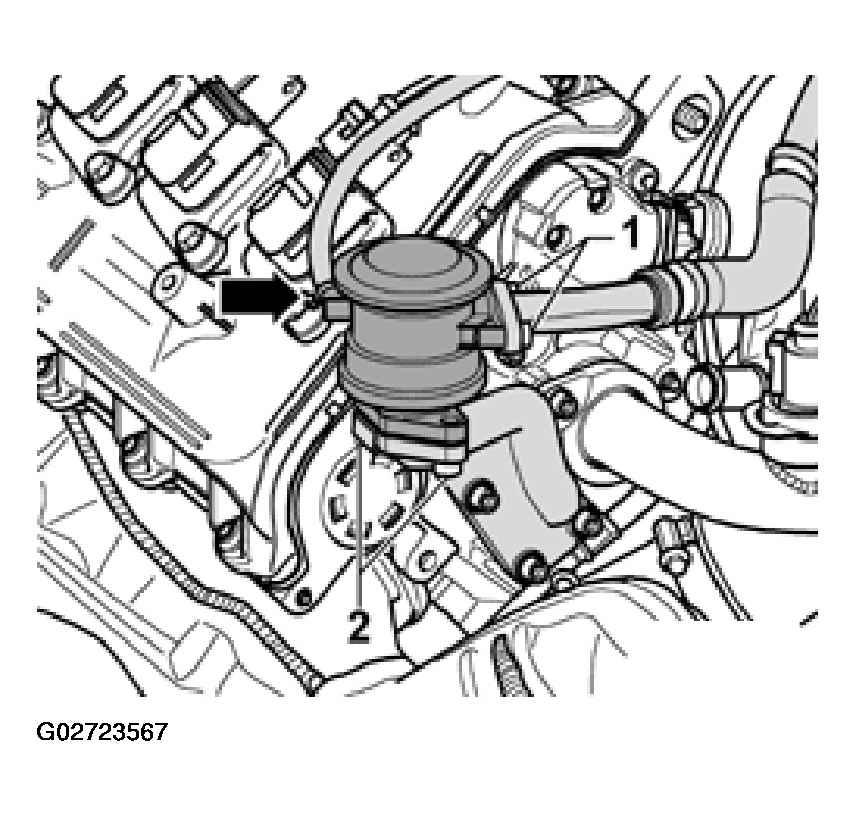

Fig 1: Identifying Combination Valve For Secondary Air System
Courtesy of AUDI OF AMERICA, INC.
