Front exhaust pipe (right), removing and installing: Removing

NOTE: All cable ties which are released or cut open when removing must be installed in same position when installing.

Place engine/transmission assembly on work bench or engine/transmission stand. Support/secure engine and transmission with pieces of squared timber.

WARNING: Engine/transmission assembly must be securely supported to avoid risk of accident.

Unplug connectors for right oxygen sensors before and after catalytic converter.
Move pipes and hoses clear.
Unbolt front right exhaust pipe from turbocharger (arrows).

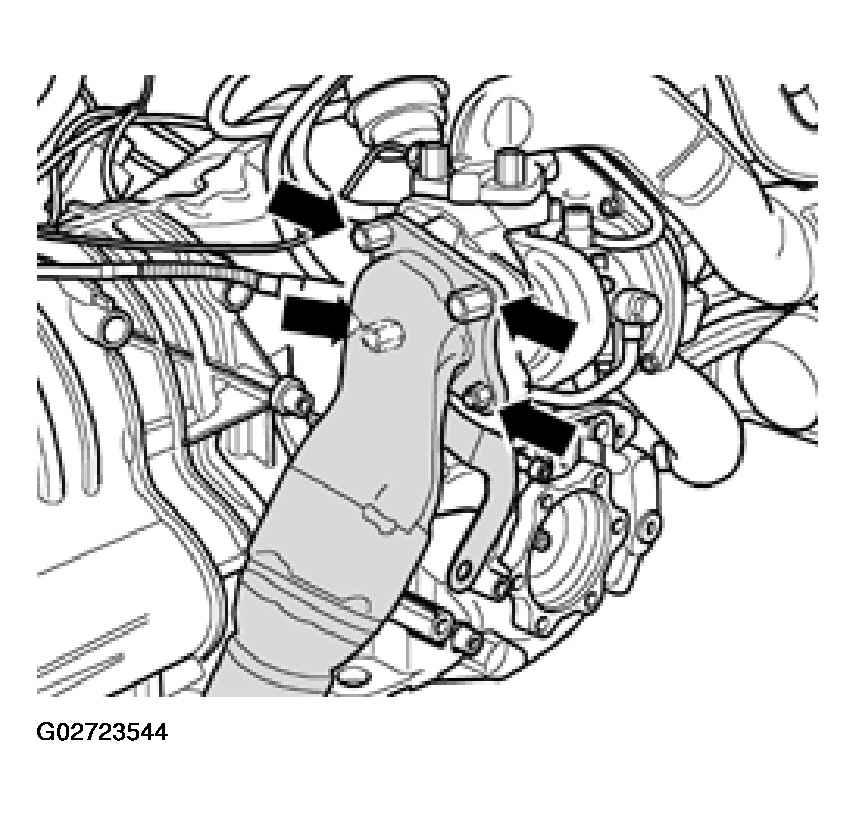

Fig 1: Removing Front Right Exhaust Pipe (Right Side) From Turbocharger

Courtesy of AUDI OF AMERICA, INC.
