Front exhaust pipe (right), removing and installing: Installing

Install in reverse sequence; note following points:

NOTE:

All cable ties which are opened or cut open on removal must be replaced in same position when installing.
Always replace seals, gaskets and self-locking nuts.

Initially screw on nuts securing front exhaust pipe to turbocharger hand-tight.
Check distance between front exhaust pipe and transmission housing at location marked with (arrows).
- Distance a = 9.0 to 9.5 mm

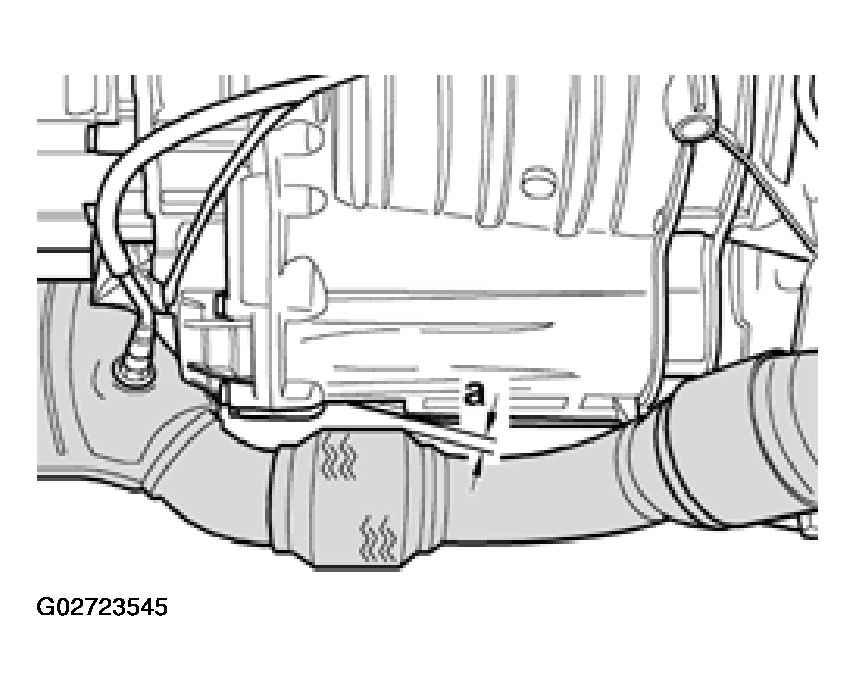

Fig 1: Checking Distance Between Front Exhaust Pipe (Right) And Transmission Housing
Courtesy of AUDI OF AMERICA, INC.
Move front exhaust pipe in mounting bores if necessary.
Tighten mountings assembly to torque.

NOTE: Align turbocharger if it is not possible to attain distance "a". See INSTALLING .
