Components of mounting for front exhaust pipe

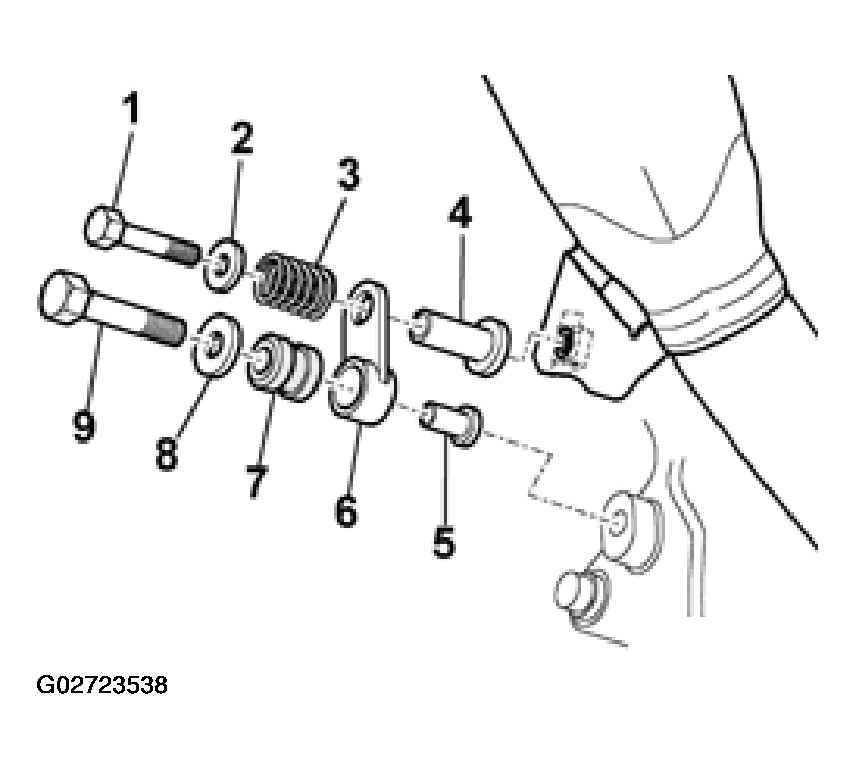

The following list pertains to Fig 1.

  1. Bolt - 25 Nm
  2. Washer
  3. Spring
  4. Spacer sleeve
  5. Spacer sleeve
  6. Lug
  7. Buffer
  8. Washer
  9. Bolt - 25 Nm
NOTE:
  • Collar of spacer sleeve -item 4- must face toward front exhaust pipe.
  • Collar of spacer sleeve -item 5- must face toward transmission support.
    • Fig 1: Identifying Components Of Mounting For Front Exhaust Pipe
    G02723538Courtesy of AUDI OF AMERICA, INC.
