Exhaust gas temperature sensor, removing and installing: Removing

NOTE: All cable ties which are released or cut open when removing must be installed in same position when installing.

Remove engine. See ENGINE, REMOVING .
Unplug connector for exhaust gas temperature sensor.
Move line to exhaust gas temperature sensor clear.
Remove temperature sensor of exhaust gas temperature sensor -3-.

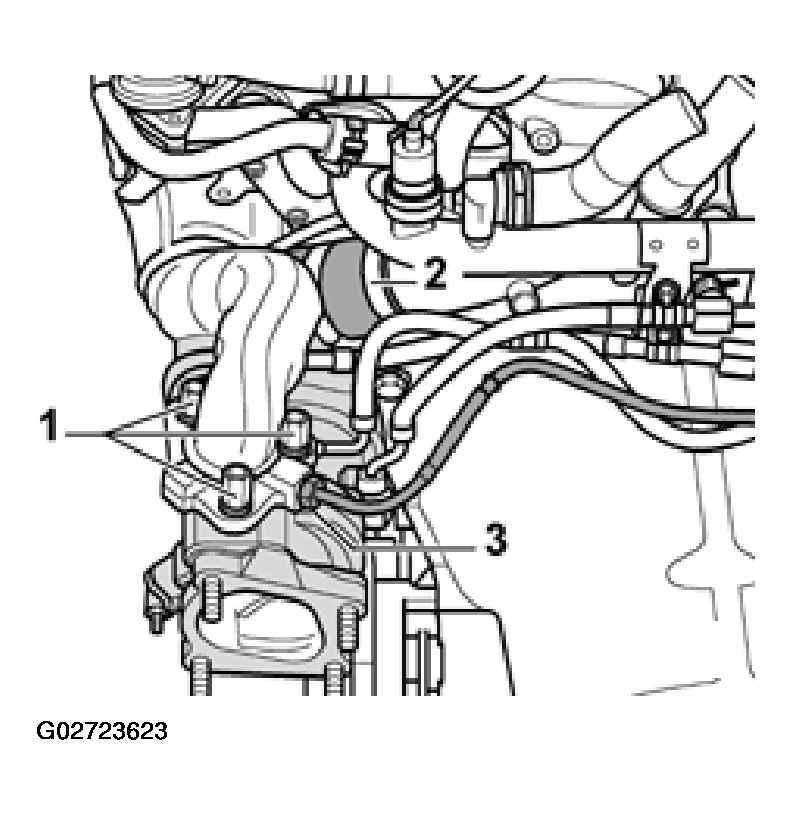

Fig 1: Removing Temperature Sensor Exhaust Gas Temperature Sensor

G02723623

Courtesy of AUDI OF AMERICA, INC.

NOTE:

Illustration shows left temperature sensor.
Items -1- and -2- remain installed. See Fig 1.
