Testing activation

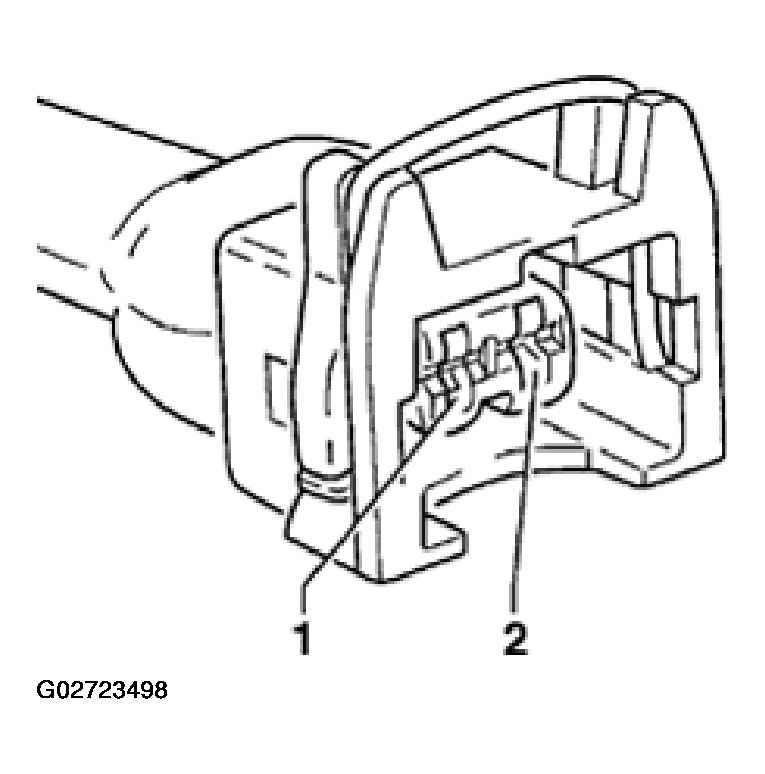

- Connect voltage tester V.A.G 1527 B to contact 1 (positive) and contact 2 of connector.
- Vehicle diagnostic, testing and information system VAS 5051 is connected; vehicle system "01 - Engine electronics" is selected. Ignition must be switched on.
Display on VAS 5051:

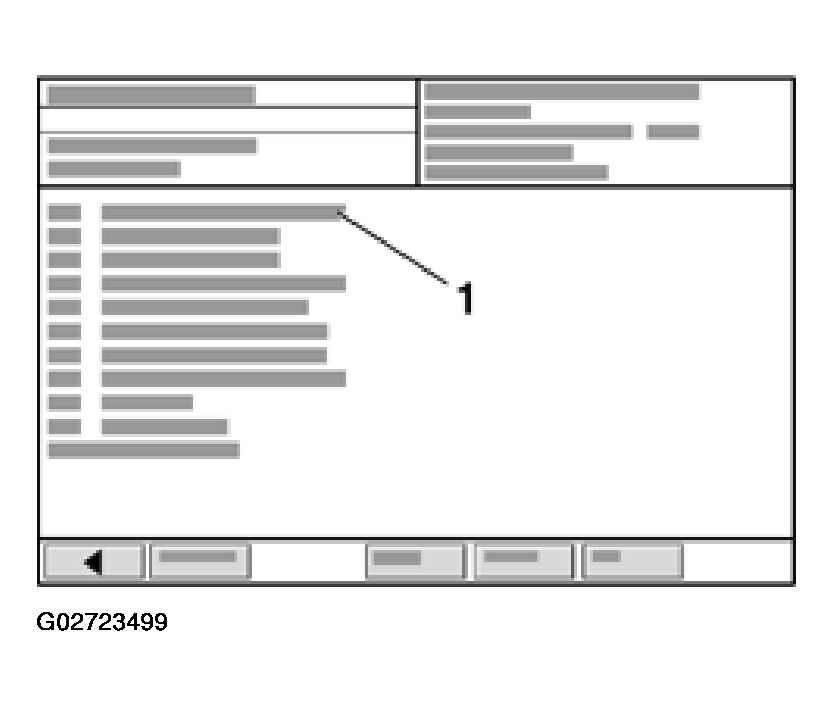

- Select diagnosis function "03 - Final control diagnosis" from menu -1-
- Press the > button repeatedly until following display appears:
Display on VAS 5051:

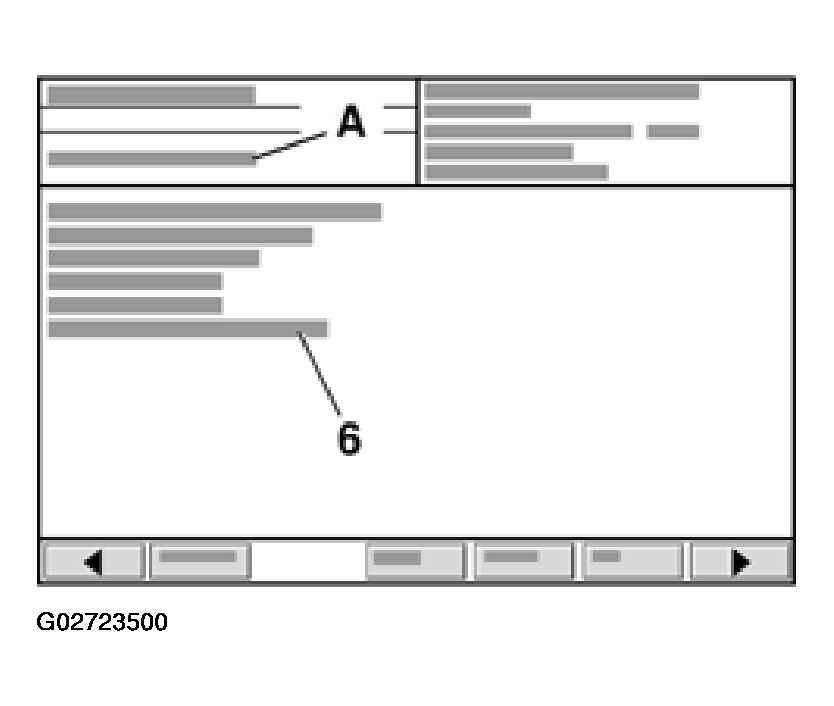

A - Actuator test is waiting - Continued switching required
6 - Air recirculation valve for turbocharger -N249
- Press the > button.
Display on VAS 5051:
A - Actuator is running - Continued switching allowed
- LED should flash.
- Press the < button to exit from function "03 - Final control diagnosis".
If LED lamp does not flash or if it lights up continuously:

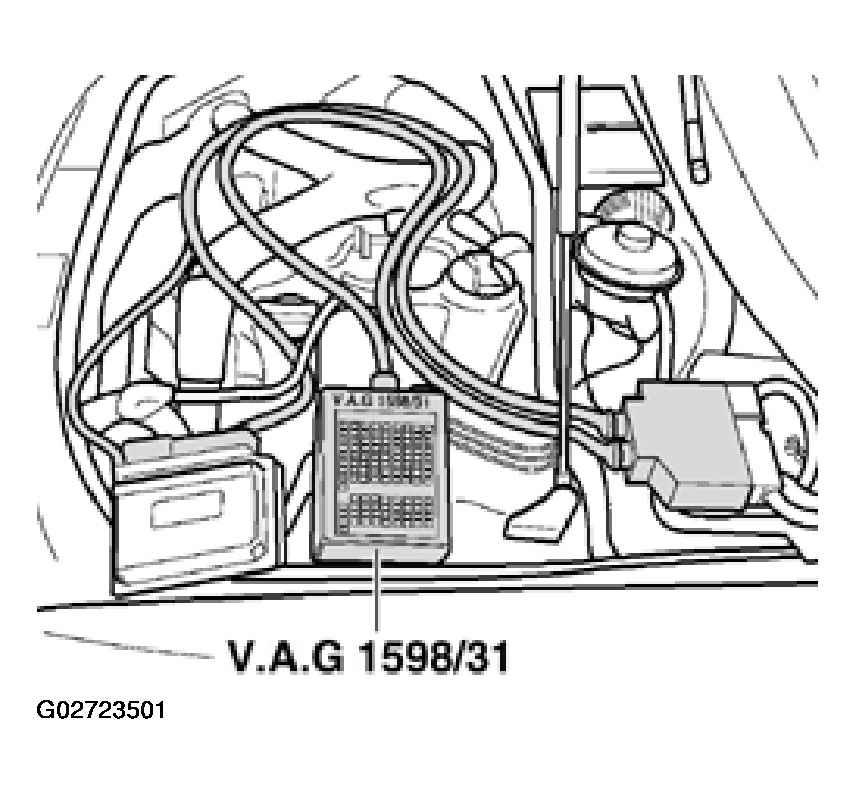

- Connect test box V.A.G 1598/31 to wiring harness connectors; do not connect engine control unit. Attach ground clip of test box to chassis (not shown in Fig 4).
See WIRING AND COMPONENT CHECK USING TEST BOX V.A.G. 1598/31 .
WARNING:
To prevent damage to electronic components, switch to respective measuring range before connecting measuring cable and observe test prerequisites.
- Test for open circuit and short to positive or ground in following wiring connections:RECIRCULATING VALVE FOR TURBOCHARGER CIRCUIT TEST - ACTIVATION

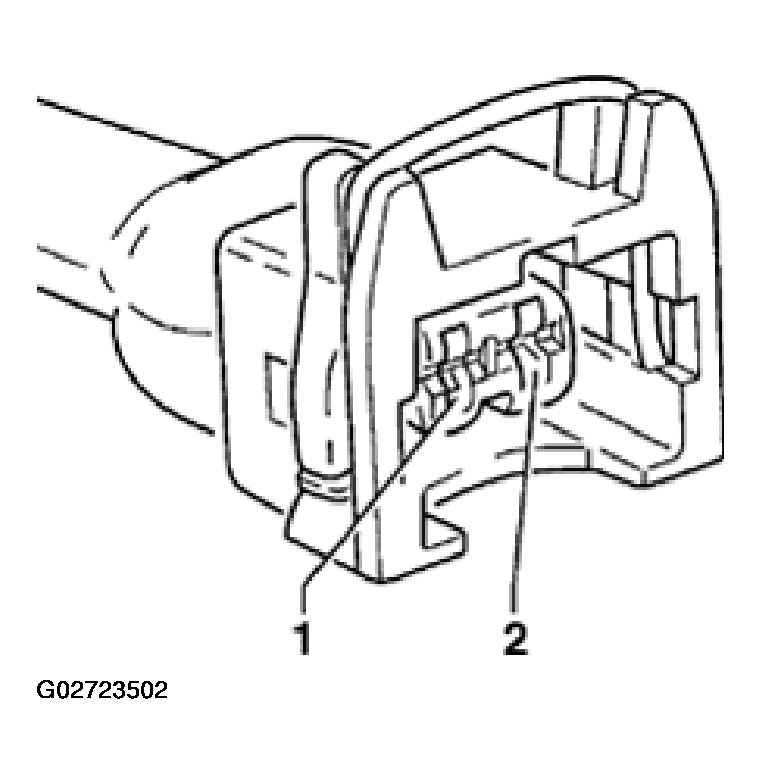

Connector Contact Test box V.A.G 1598/31 Socket 2 9 - Eliminate open circuit or short circuit using wiring diagram.
If wiring is OK:
- Replace engine control module. See MOTRONIC ENGINE CONTROL MODULE (ECM) -J220-, REPLACING .
