Overrun air recirculation control, overview

The following list pertains to Fig 1.

1. Front air intake pipe
   • Pressure side of turbocharger
   • Before throttle valve
2. Mechanical air recirculation valve
   • For turbocharger, cylinder bank 1 (right)
3. Non-return valve
   • Note installation position: arrow on housing points in direction of flow
   • Located below intake manifold
4. Vacuum connection
   • At bottom of intake manifold
   • Supplies vacuum to Recirculating valve for turbocharger -N249-
5. Turbocharger
   • Cylinder bank 1 (right)
6. Rear air intake pipe
   • Intake side of turbocharger
7. Turbocharger
   • Cylinder bank 2 (left)
8. Recirculating valve for turbocharger -N249-
   • Testing, see RECIRCULATING VALVE FOR TURBOCHARGER -N249-, TESTING
9. Mechanical air recirculation valve
   • For turbocharger, cylinder bank 2 (left)
10. Vacuum reservoir
    • Fitting location: in front left wheel housing behind wheel housing liner

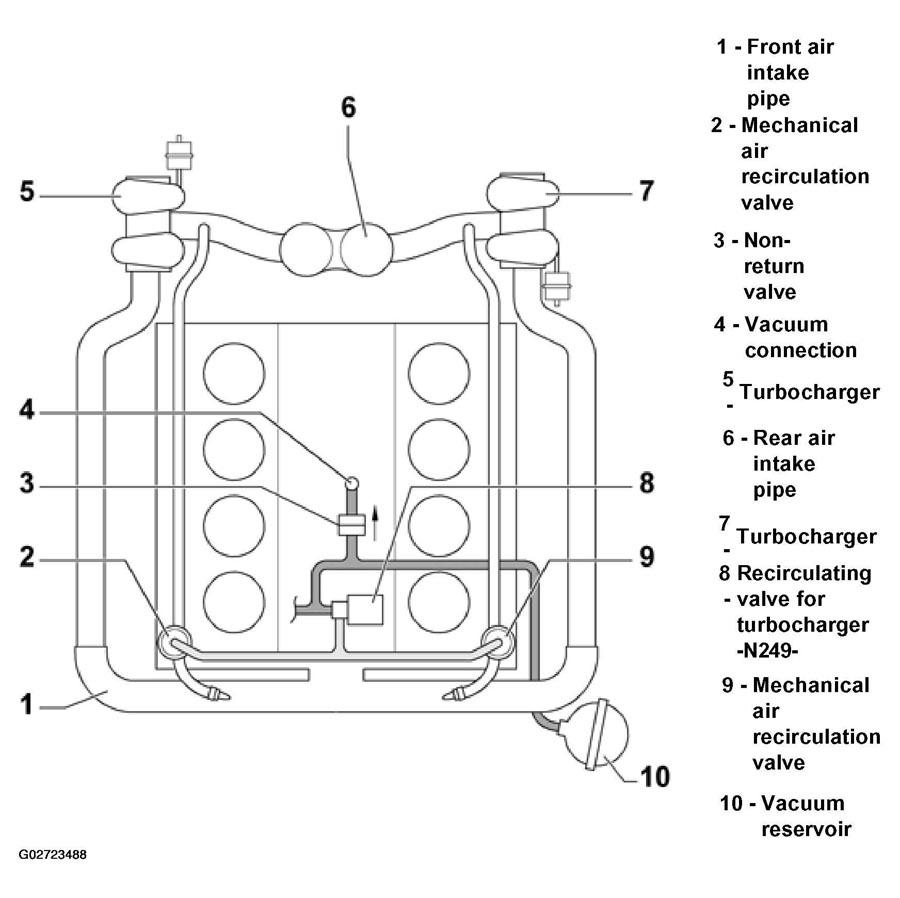

Fig 1: Overview Of Overrun Air Recirculation Control System
Courtesy of AUDI OF AMERICA, INC.
