Right turbocharger, removing and installing: Removing

• Remove engine. See ENGINE, REMOVING .

NOTE: All cable ties which are released or cut open when removing must be installed in same position when installing.

• Place a drip tray underneath.
• Drain engine oil.
• Place engine/transmission assembly on work bench or engine/transmission stand. Support/secure engine and transmission with pieces of squared timber.

WARNING: Engine/transmission assembly must be securely supported to avoid risk of accident.

• Unplug connectors for right oxygen sensors before and after catalytic converter.
• Move wiring clear.

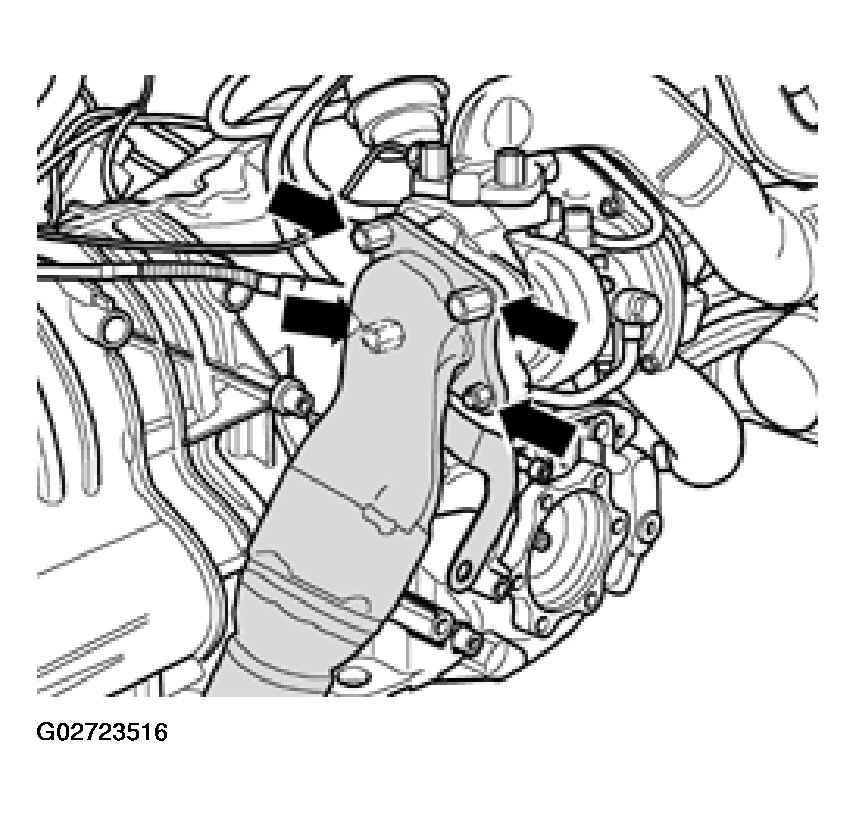

• Unbolt front right exhaust pipe from turbocharger (arrows).
Fig 1: Releasing Front Right Exhaust Pipe From Right Turbocharger
Courtesy of AUDI OF AMERICA, INC.
• Unscrew bolt (arrow) and detach oil return pipe from upper section of sump.
Fig 2: Detaching Oil Return Pipe
Courtesy of AUDI OF AMERICA, INC.

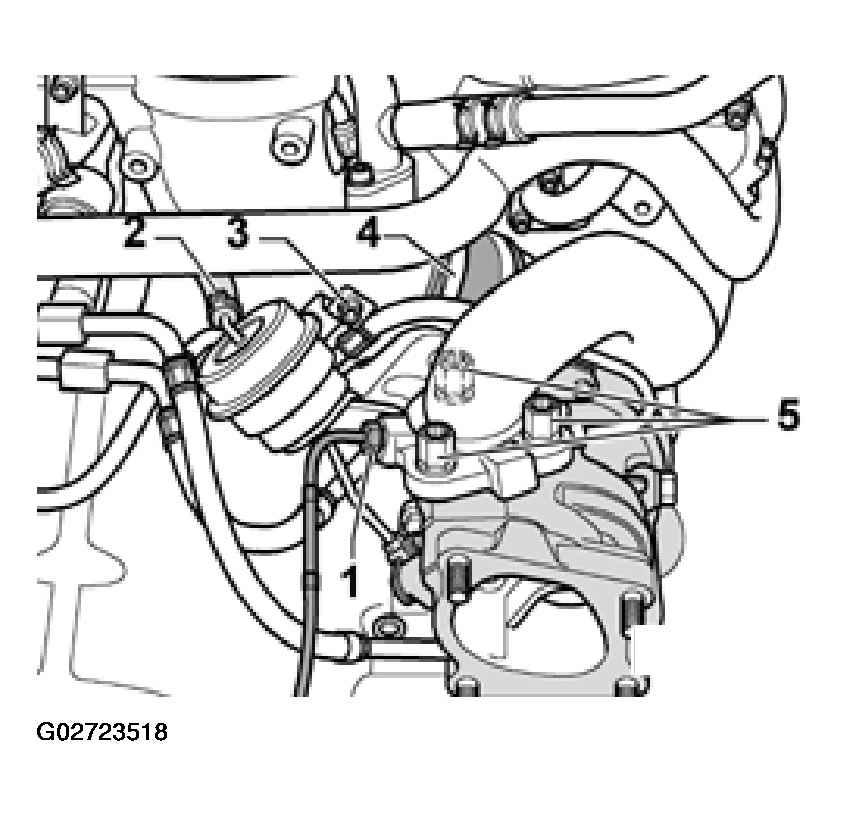

• Disconnect vacuum hose -2-. See Fig 3.
• Remove bolt -3-.
• Release hose clamp -4-. See Fig 3.
• Unscrew temperature sensor of exhaust gas temperature sender -1-.
• Unscrew nuts -5-. See Fig 3.
Fig 3: Disconnecting Hose, Clamp And Nuts
Courtesy of AUDI OF AMERICA, INC.

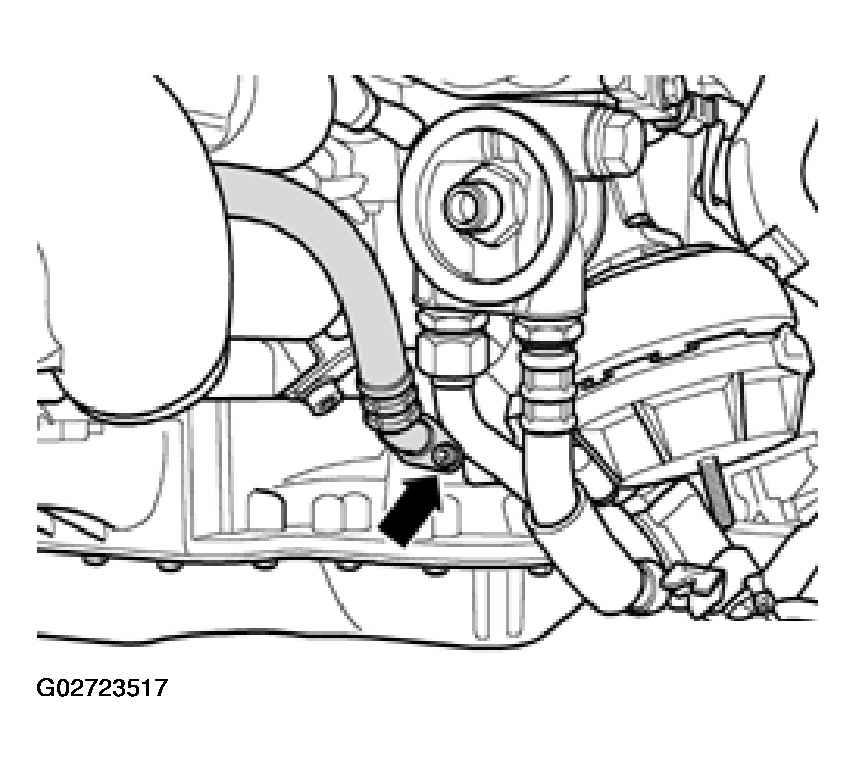

• Unthread bolt (arrow) and remove pressure line from turbocharger.

NOTE: Depicted in illustration with exhaust manifold removed.

Fig 4: Removing Pressure Line From Right Turbocharger

Courtesy of AUDI OF AMERICA, INC.

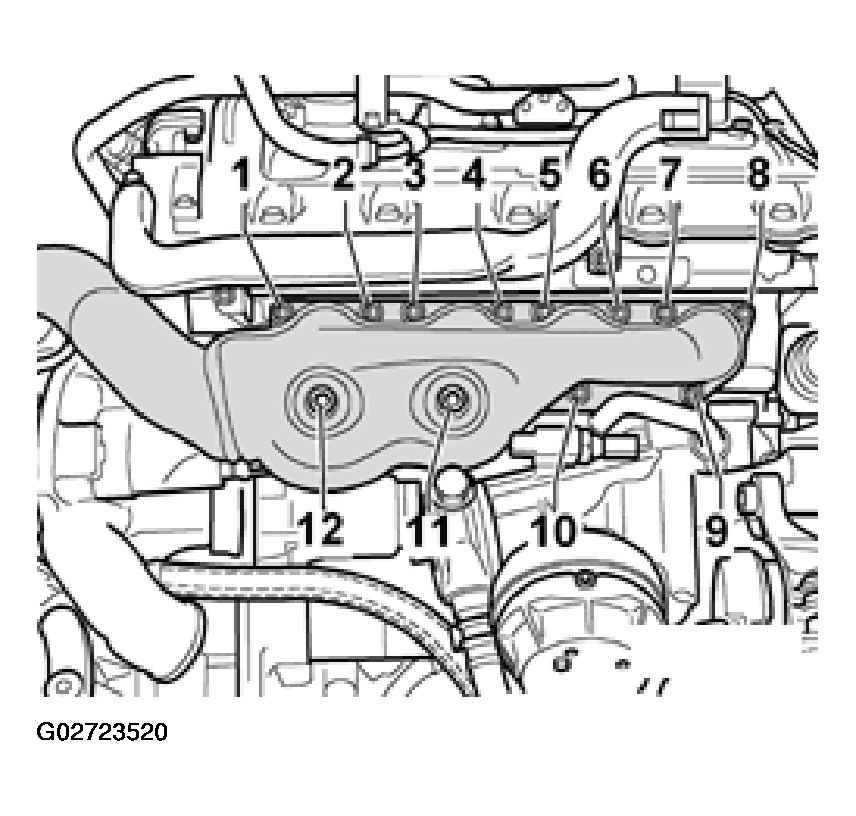

• Remove nuts -1- to -12-.
  Fig 5: Identifying Right Exhaust Manifold Nuts

  Courtesy of AUDI OF AMERICA, INC.
• Remove heat shield over differential cover of transmission.
• Pull turbocharger slightly downward and remove exhaust manifold.

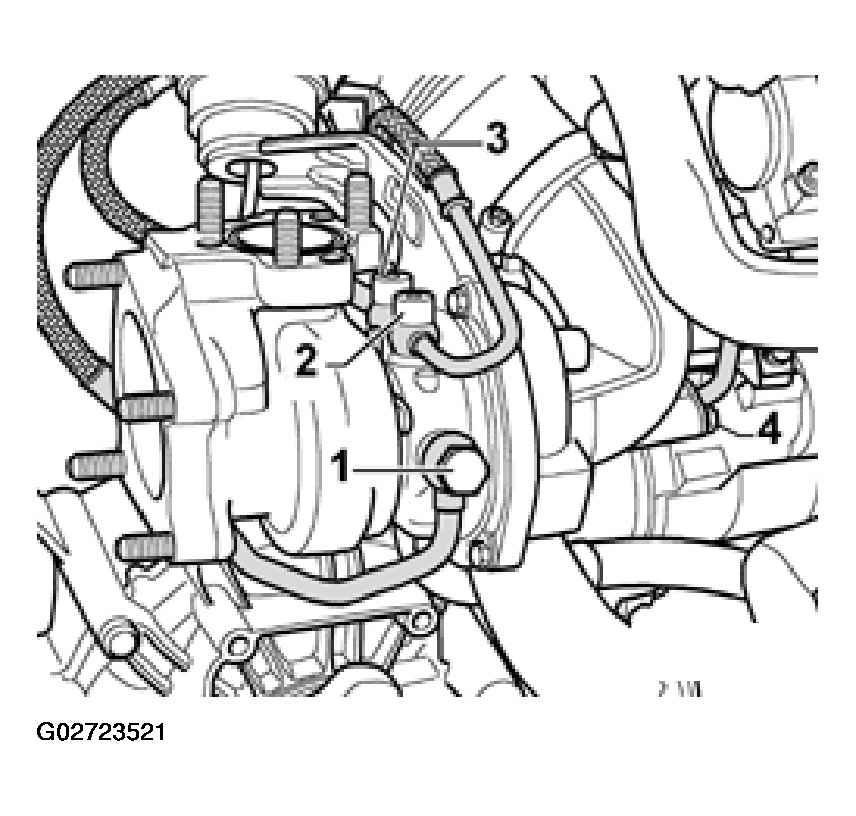

• Remove banjo fittings -1- to -3- and remove turbocharger.

NOTE: Disregard -item 4-.

Fig 6: Removing Banjo Fittings And Right Turbocharger

Courtesy of AUDI OF AMERICA, INC.
