Charge air cooler, removing and installing: Removing

• Remove front bumper:

See FRONT BUMPER (AUDI RS6) .

• Drain coolant. See DRAINING .
• Remove air filter housing. See REMOVING .
• Remove bolts (arrows) and remove air guide from lock carrier.
Fig 1: Removing Bolts And Air Guide
Courtesy of AUDI OF AMERICA, INC.

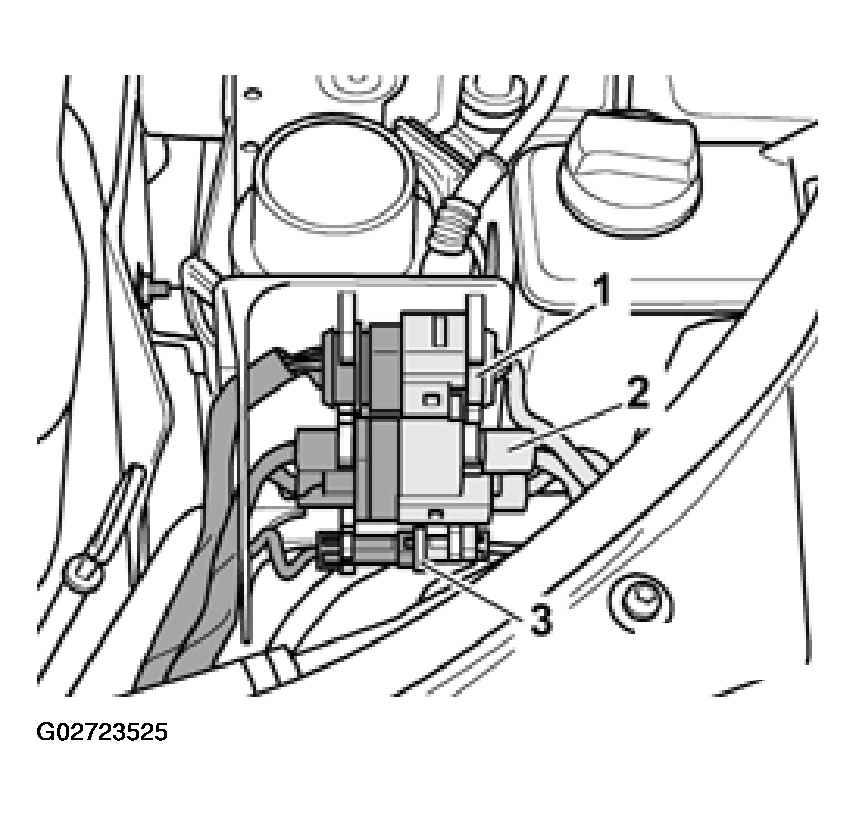

• Disconnect electrical harness connectors -1- to -3- from bracket and disconnect it.
• Expose cables.

Remove left headlight:

Fig 2: Disconnecting Electrical Harness Connectors

Courtesy of AUDI OF AMERICA, INC.

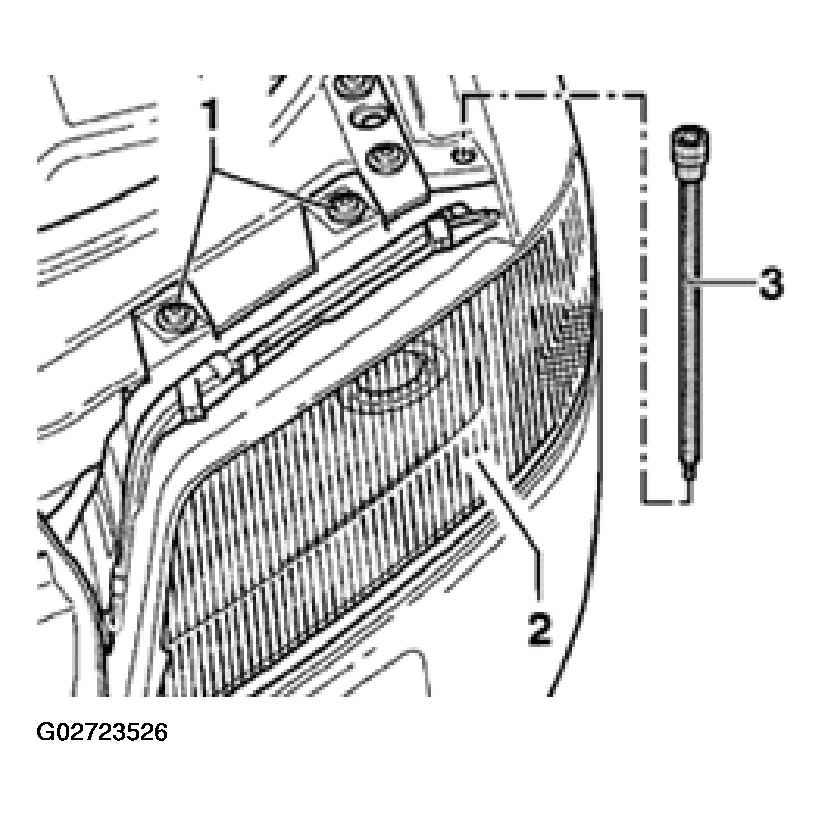

• Remove bolts -1-. See Fig 3.
• Guide a long inner hex wrench -3- through hole and remove lower mounting bolt at headlight housing -2-. See Fig 3.

Fig 3: Removing Bolts Using Long Inner Hex Wrench

Courtesy of AUDI OF AMERICA, INC.

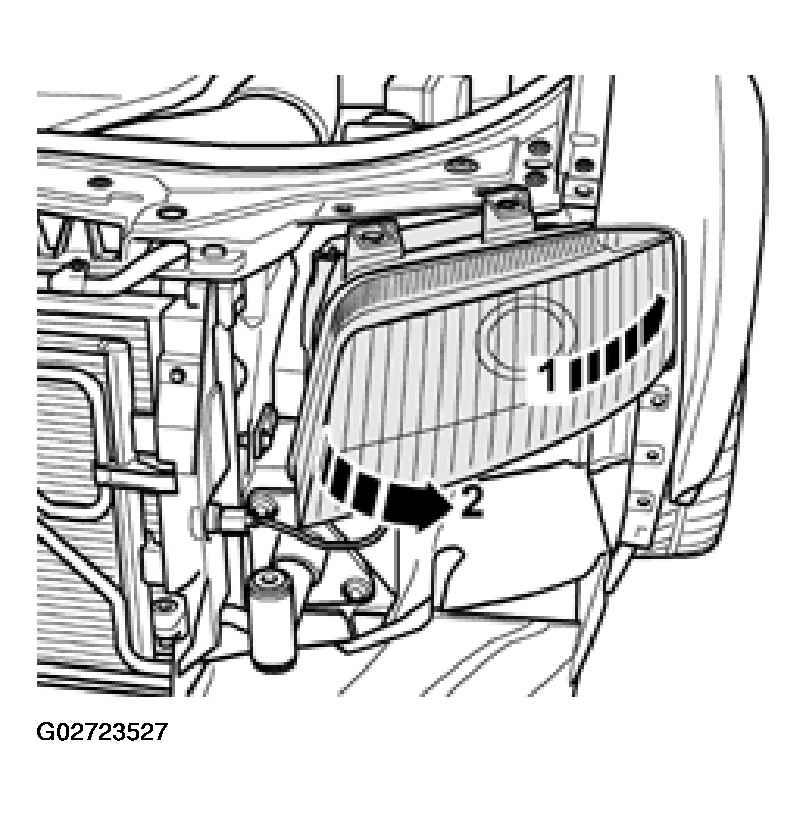

• Slide headlight slightly into recess on fender (arrow -1-) and then swing it out (arrow -2-).
  Fig 4: Sliding Headlight Into Recess On Fender

  Courtesy of AUDI OF AMERICA, INC.
• Disconnect electrical harness connector.
• Remove headlight forward and out.

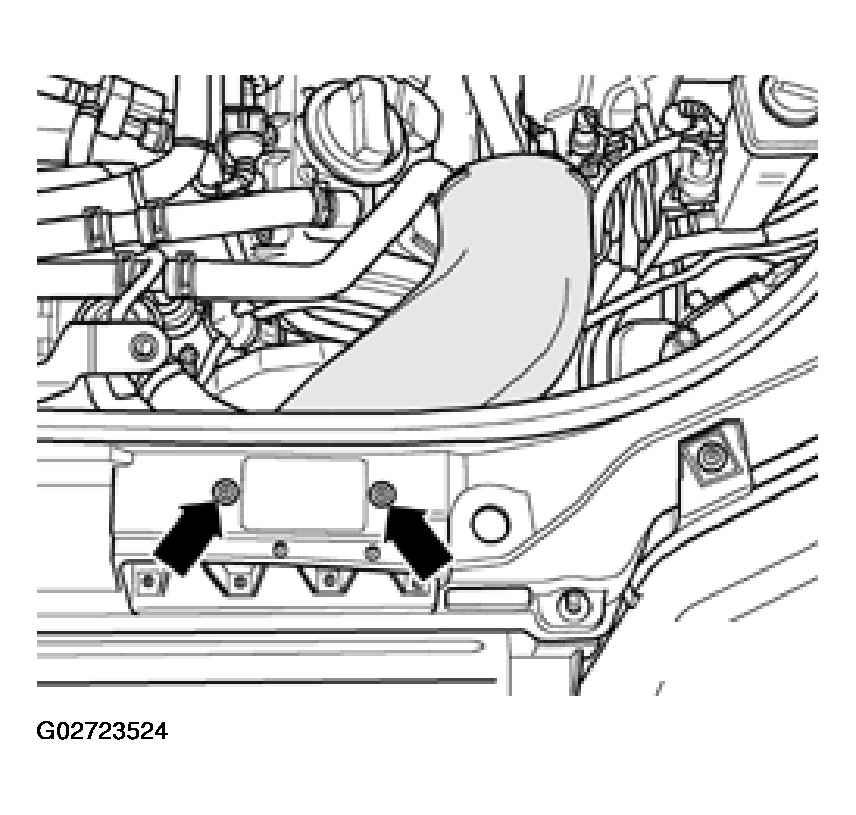

• Remove top air intake hose (arrows).
Fig 5: Removing Top Air Intake Hose
Courtesy of AUDI OF AMERICA, INC.

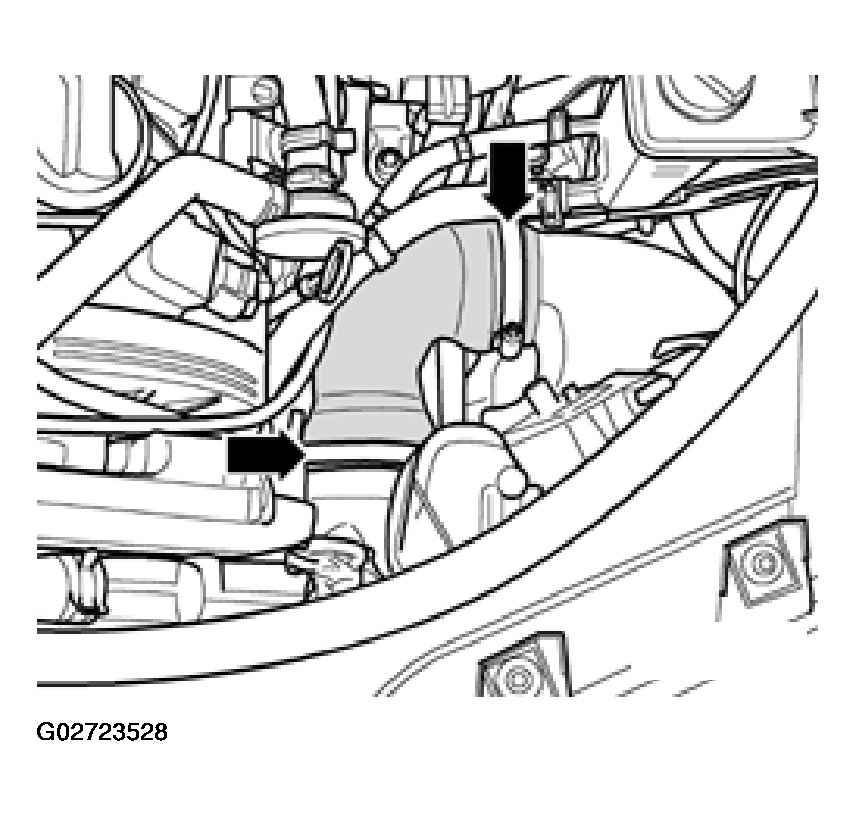

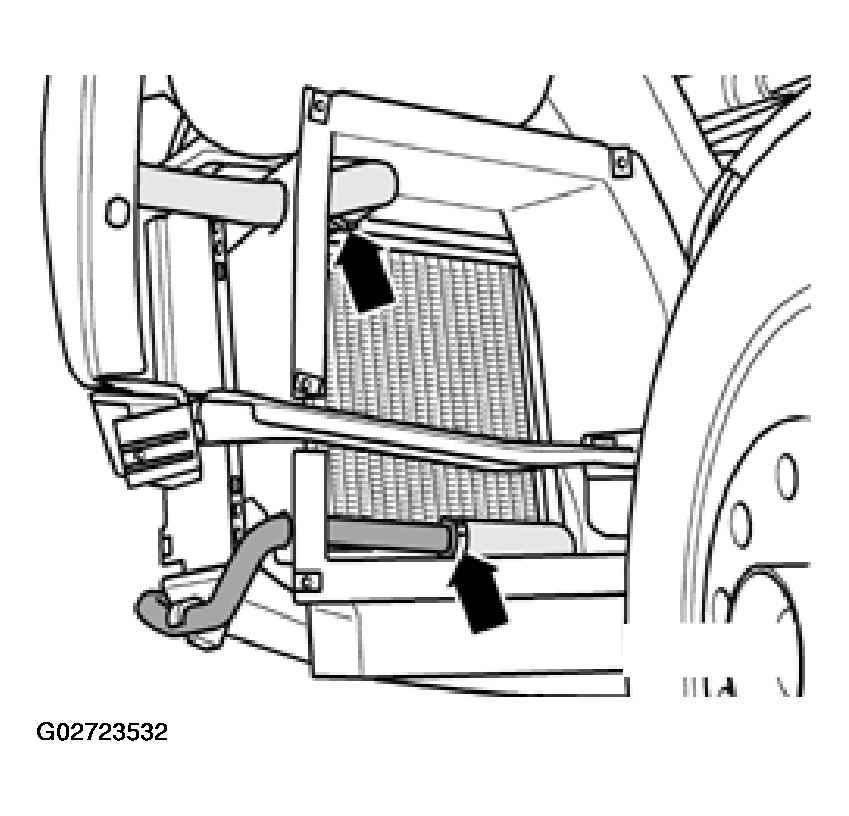

• Remove bottom air intake hose (arrows).
Fig 6: Removing Bottom Air Intake Hose
Courtesy of AUDI OF AMERICA, INC.

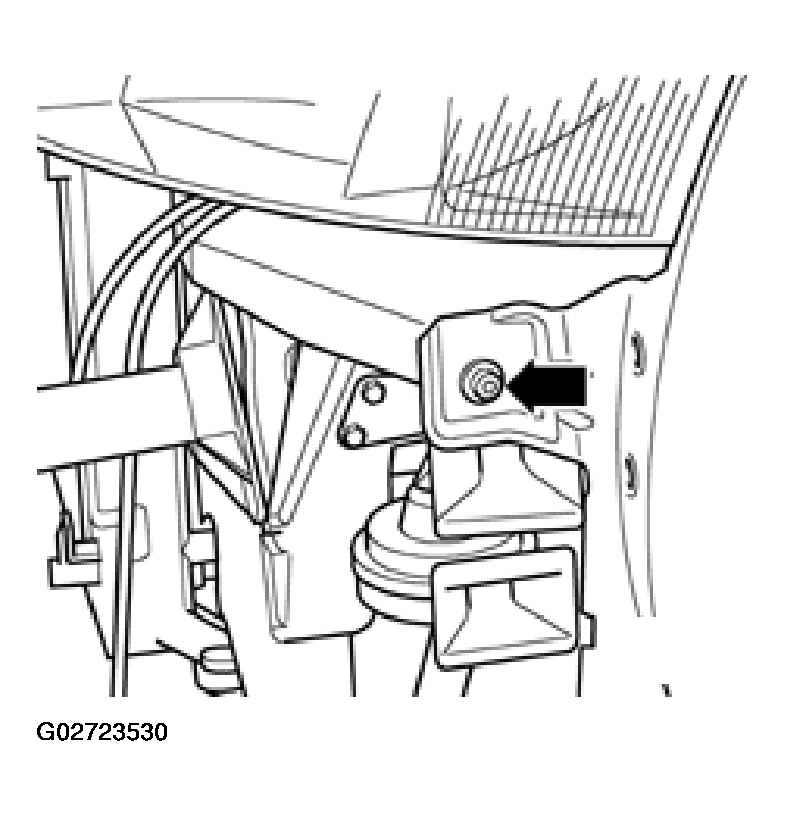

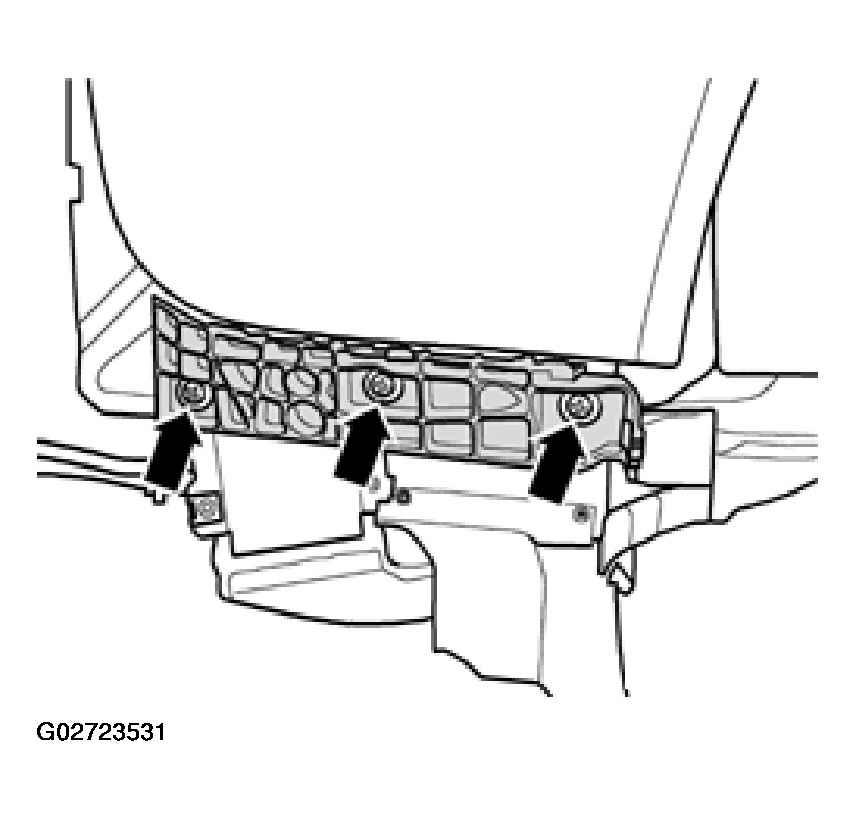

• Unscrew bolt (arrow).
Fig 7: Releasing Bolt
Courtesy of AUDI OF AMERICA, INC.
• Unscrew bolts (arrows) and remove guide.
Fig 8: Removing Bolts And Guide
Courtesy of AUDI OF AMERICA, INC.

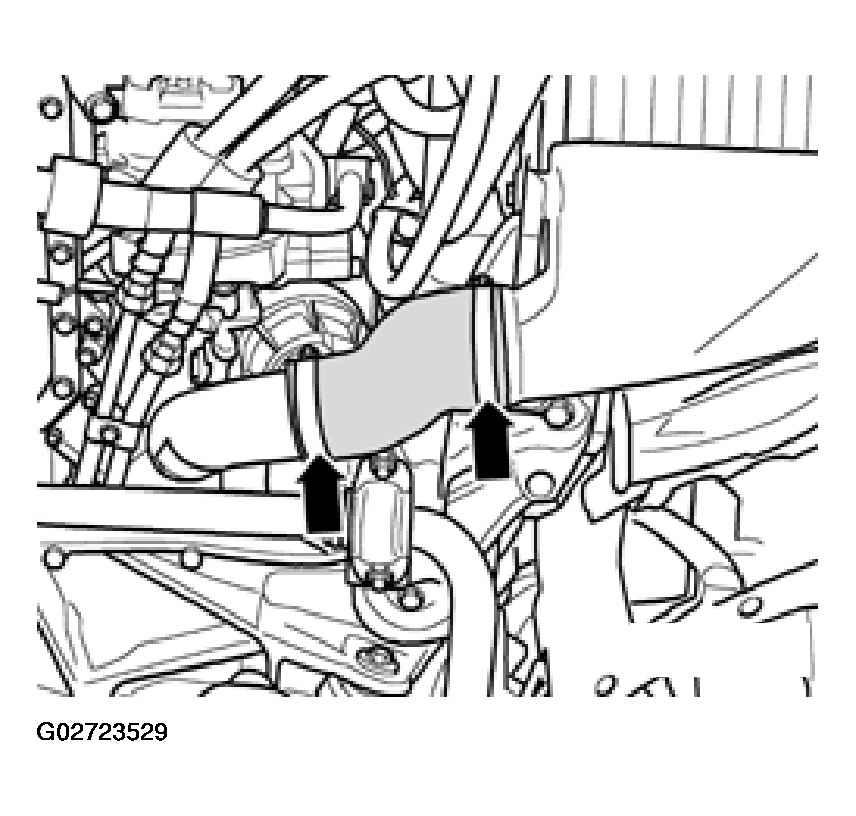

• Disconnect coolant hoses at positions indicated by (arrows).
Fig 9: Disconnecting Coolant Hoses
Courtesy of AUDI OF AMERICA, INC.

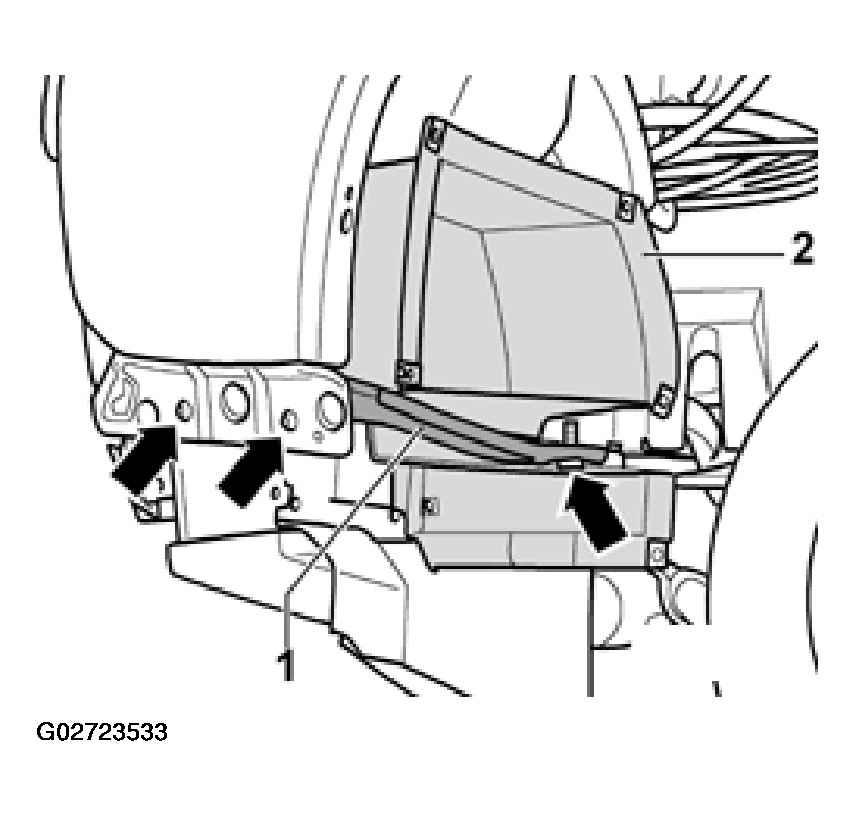

• Unscrew bolts (arrows) and remove brace -1-. See Fig 10.
• Remove rear air duct -2-.
Fig 10: Removing Brace And Air Duct
Courtesy of AUDI OF AMERICA, INC.

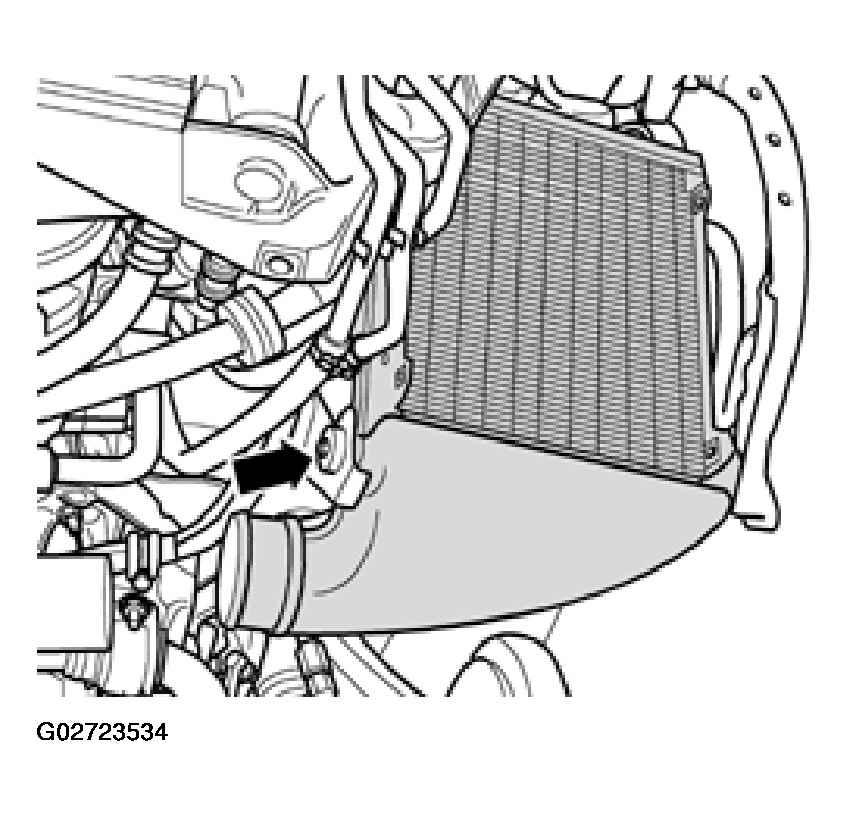

• Unscrew bolt (arrow) and lift out charge air cooler.
  Fig 11: Removing Charge Air Cooler

  Courtesy of AUDI OF AMERICA, INC.
• Remove auxiliary cooler, if necessary. See AUXILIARY COOLER, REMOVING AND INSTALLING .
