Charge air cooler, overview

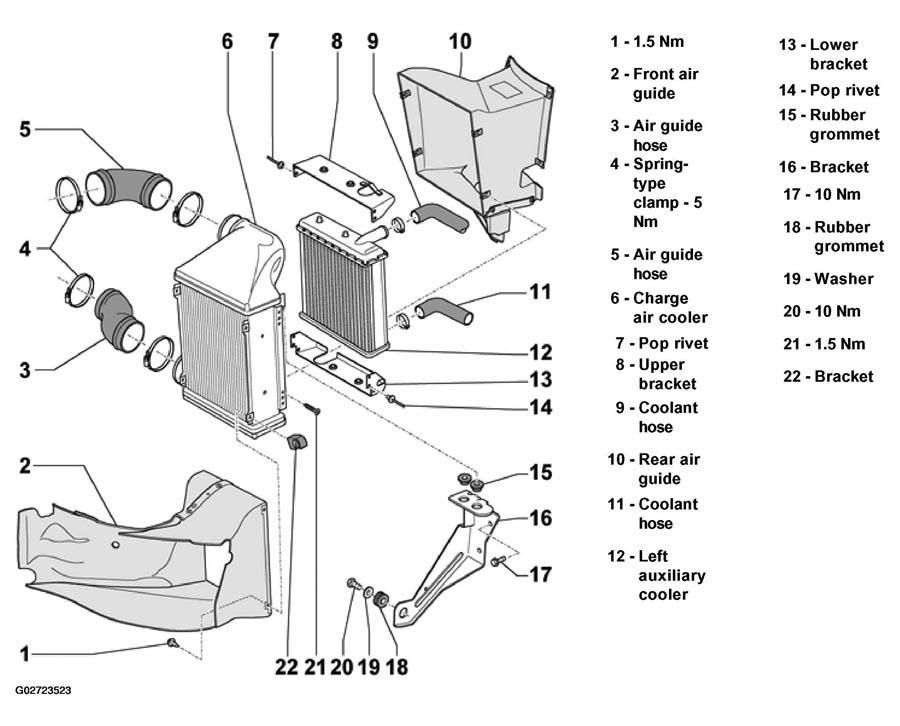

The following list pertains to Fig 1.
NOTE:
Illustration depicts left charge air cooler.
- 1.5 Nm
- Front air guide
- Air guide hose
- Between charge air cooler and left air guide pipe
- Spring-type clamp - 5 Nm
- Air guide hose
- Between charge air cooler and front air guide pipe
- Charge air cooler
- Removing and installing, see CHARGE AIR COOLER, REMOVING AND INSTALLING
- Pop rivet
- 4 mm
- Upper bracket
- For auxiliary cooler
- Coolant hose
- Rear air guide
- Multi-part
- Coolant hose
- Left auxiliary cooler
- Removing and installing, see AUXILIARY COOLER, REMOVING AND INSTALLING
- Lower bracket
- For auxiliary cooler
- Pop rivet
- 4 mm
- Rubber grommet
- Bracket
- For charge air cooler
- 10 Nm
- Rubber grommet
- Washer
- 10 Nm
- 1.5 Nm
- Bracket
- For coolant pipe
