Display group 007

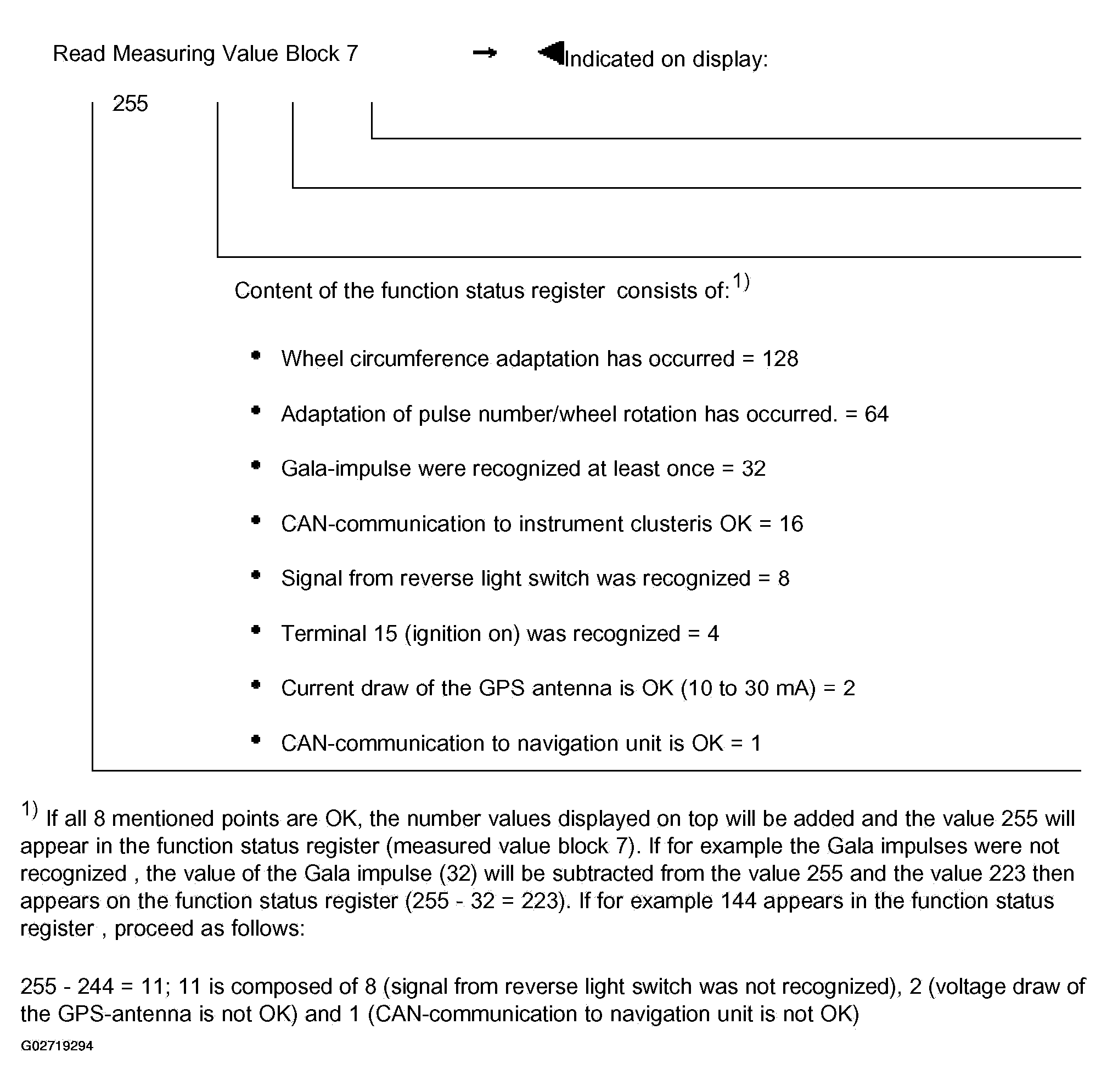

Fig 1: Display Group 007 - Navigation System IV, From 2002
G02719294Courtesy of AUDI OF AMERICA, INC.
NOTE: In Fig 1 refer to:
