DTC table for tire pressure monitoring

NOTE:

The following table lists all DTCs that can be recognized by the control module and printed out by the V.A.G 1551. The DTCs are listed in order according to their 5-figure code numbers.
DTCs appear only on print-out.
Before replacing a component shown as faulty, check wiring and connections to component as well as ground connections according to current flow diagram.
After completing repair and checking function of system, always check DTC memory once again with Scan tool V.A.G 1551 and erase memory.
The DTC memory records all static and sporadic DTCs. If a malfunction occurs and persists for at least 2 seconds, it is identified as a static malfunction. If malfunction does not occur again it is registered as a sporadic malfunction. "ISP" appears on the right of the display.
When ignition is switched on, all existing DTCs are automatically reclassified as sporadic DTCs and will only register as static DTCs if they still occur after testing.
Sporadic DTCs which no longer occur after 50 driving cycles (ignition on for at least 5 minutes, road speed of 30 km/h) are erased automatically.

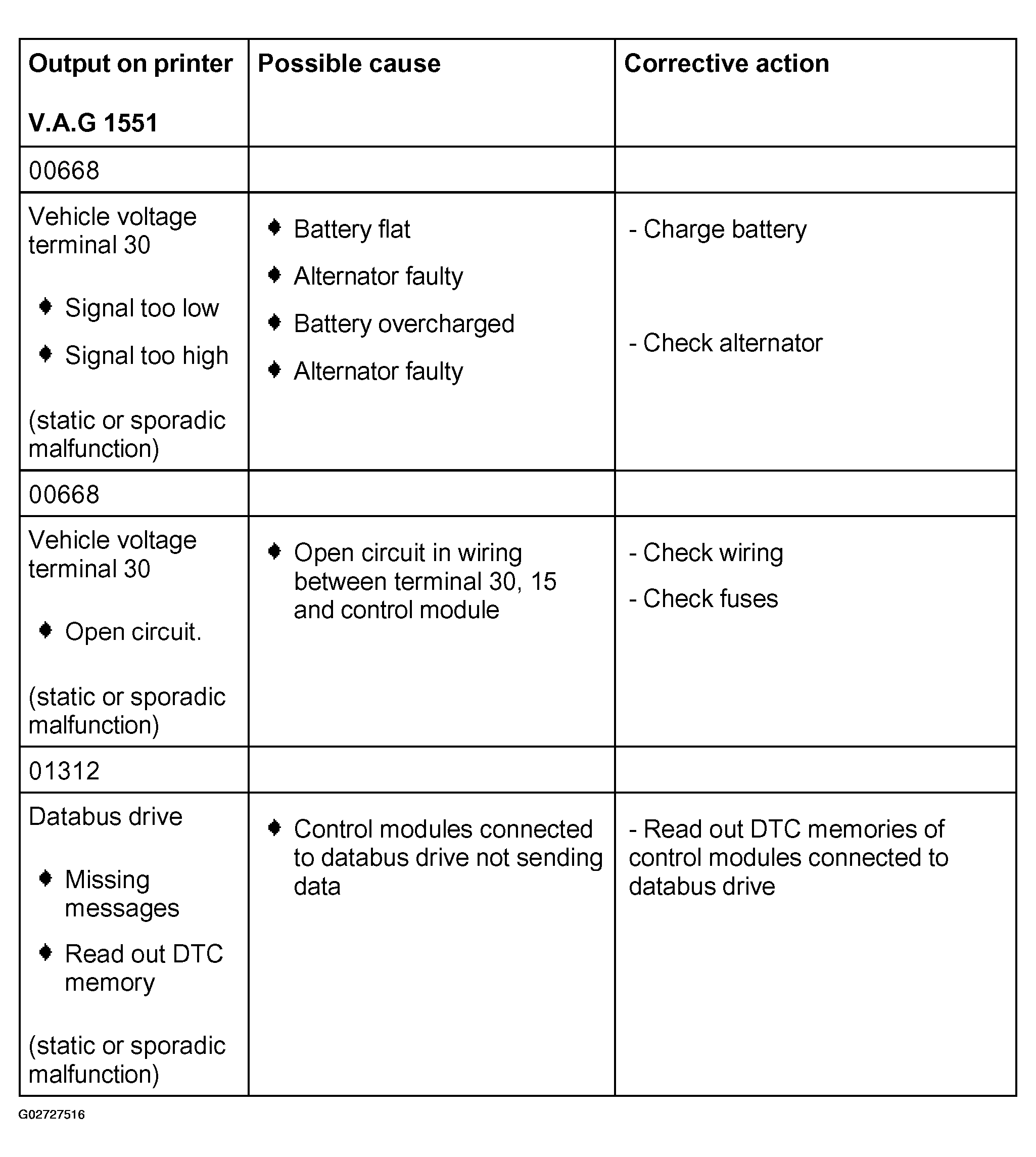

Fig 1: DTC Diagnostic Chart - Tire Pressure Monitor (00668 & 11312)

Courtesy of AUDI OF AMERICA, INC.

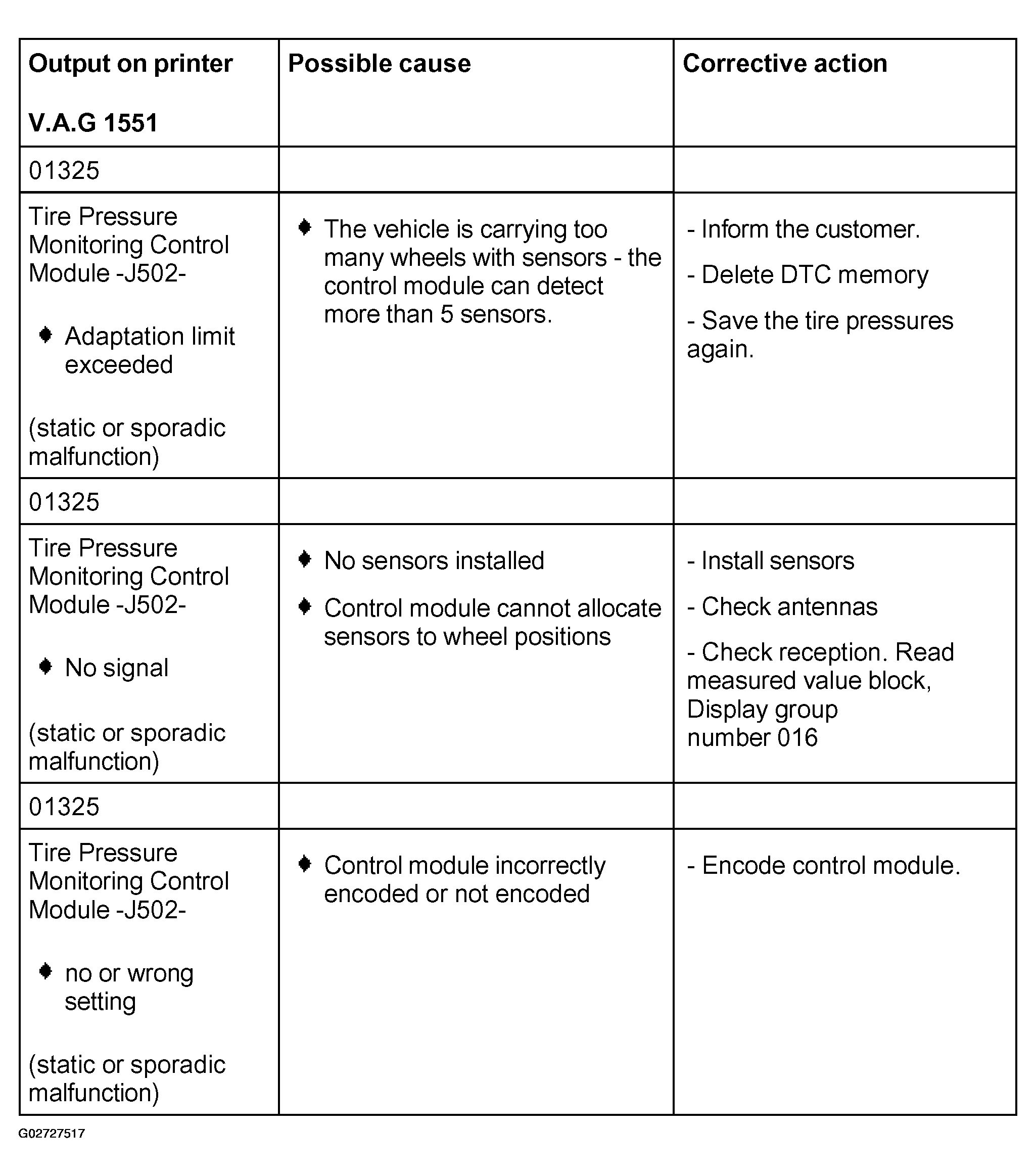

Fig 2: DTC Diagnostic Chart - Tire Pressure Monitor (01325)

Courtesy of AUDI OF AMERICA, INC.

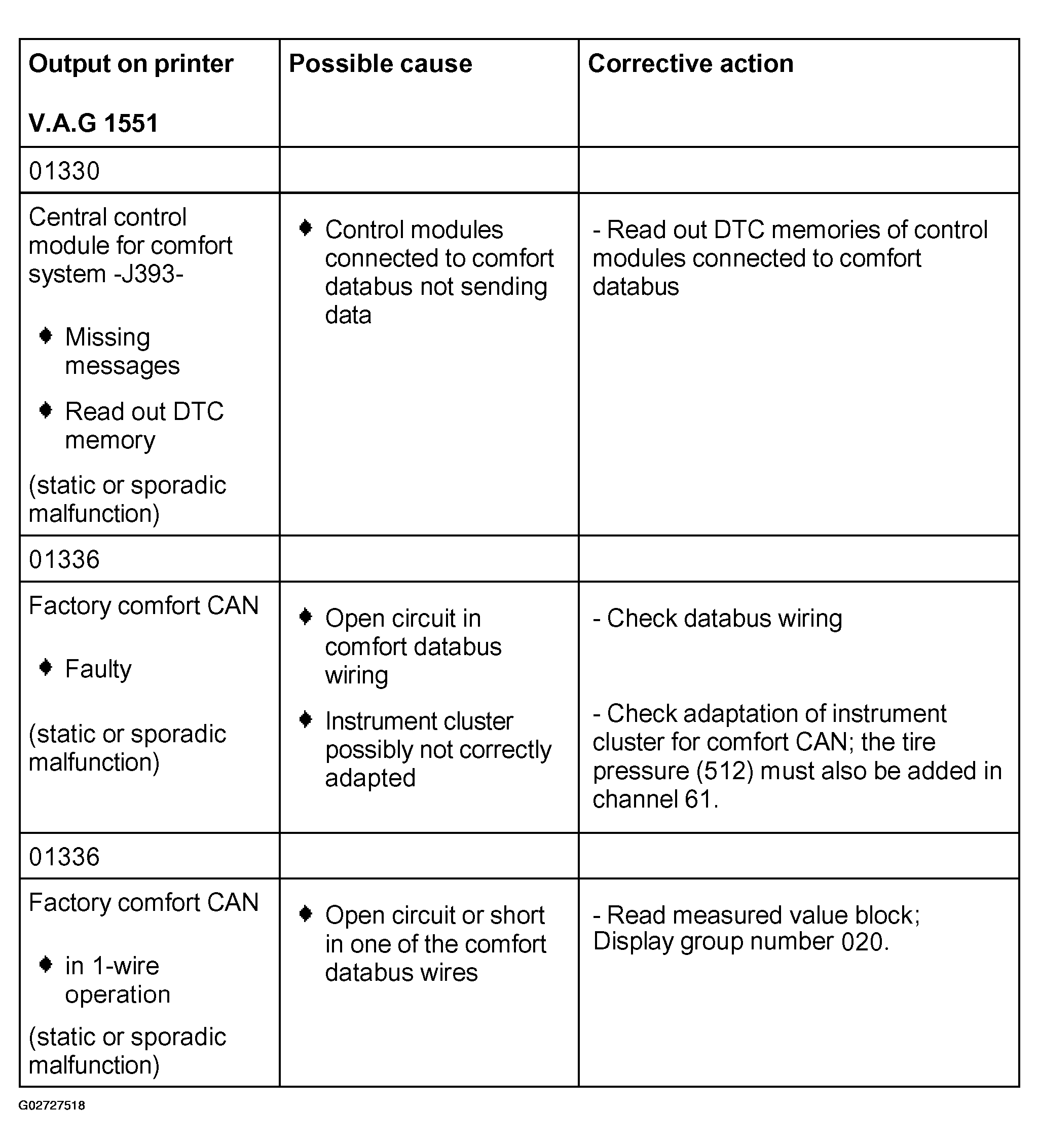

Fig 3: DTC Diagnostic Chart - Tire Pressure Monitor (01330 & 01336)

Courtesy of AUDI OF AMERICA, INC.

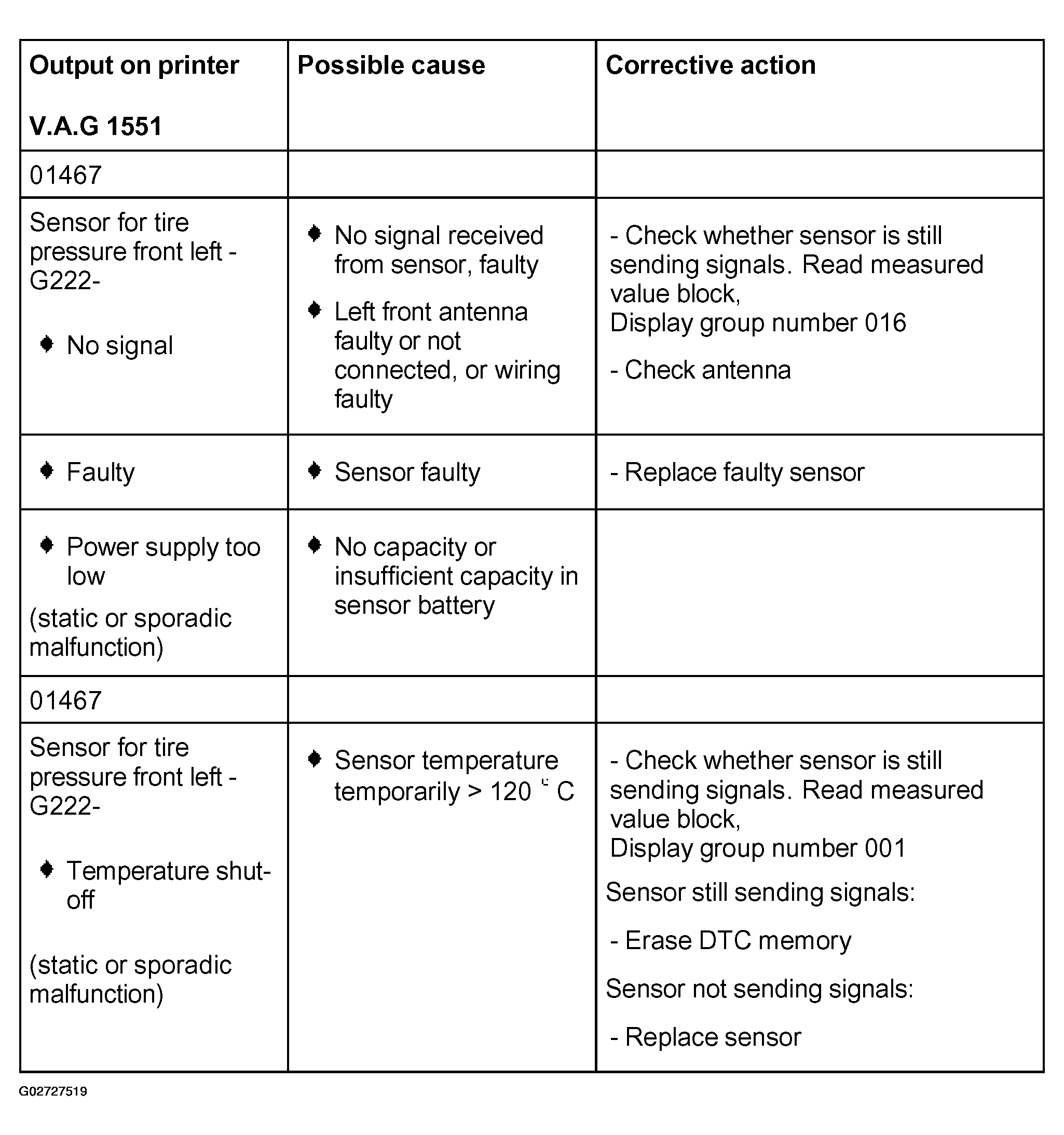

Fig 4: DTC Diagnostic Chart - Tire Pressure Monitor (01467)

Courtesy of AUDI OF AMERICA, INC.

To replace faulty tire pressure sensor or antenna, see WHEELS, TIRES - TIRE PRESSURE CONTROL SYSTEM .

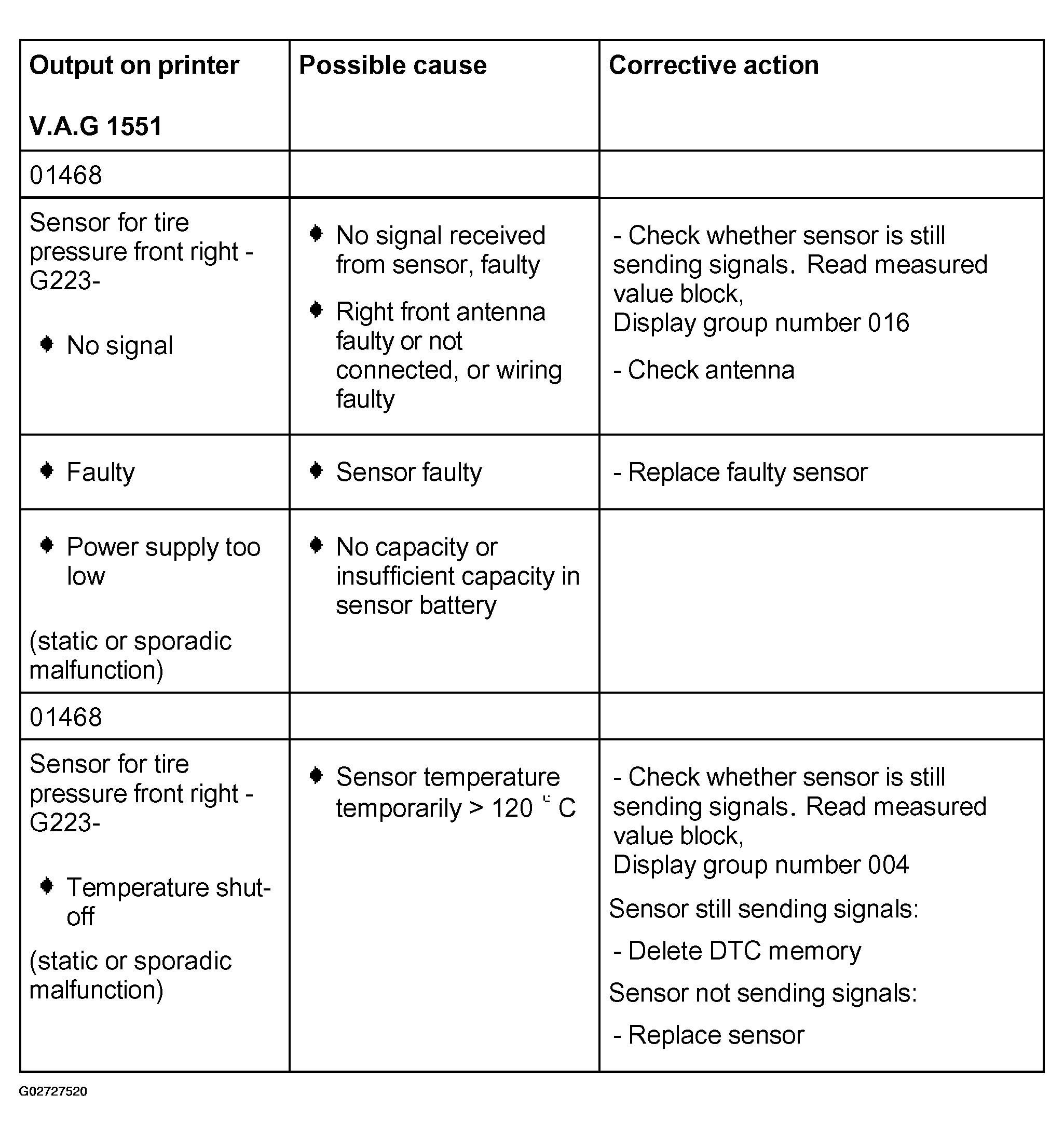

Fig 5: DTC Diagnostic Chart - Tire Pressure Monitor (01468)

Courtesy of AUDI OF AMERICA, INC.

To replace faulty tire pressure sensor or antenna, see WHEELS, TIRES - TIRE PRESSURE CONTROL SYSTEM .

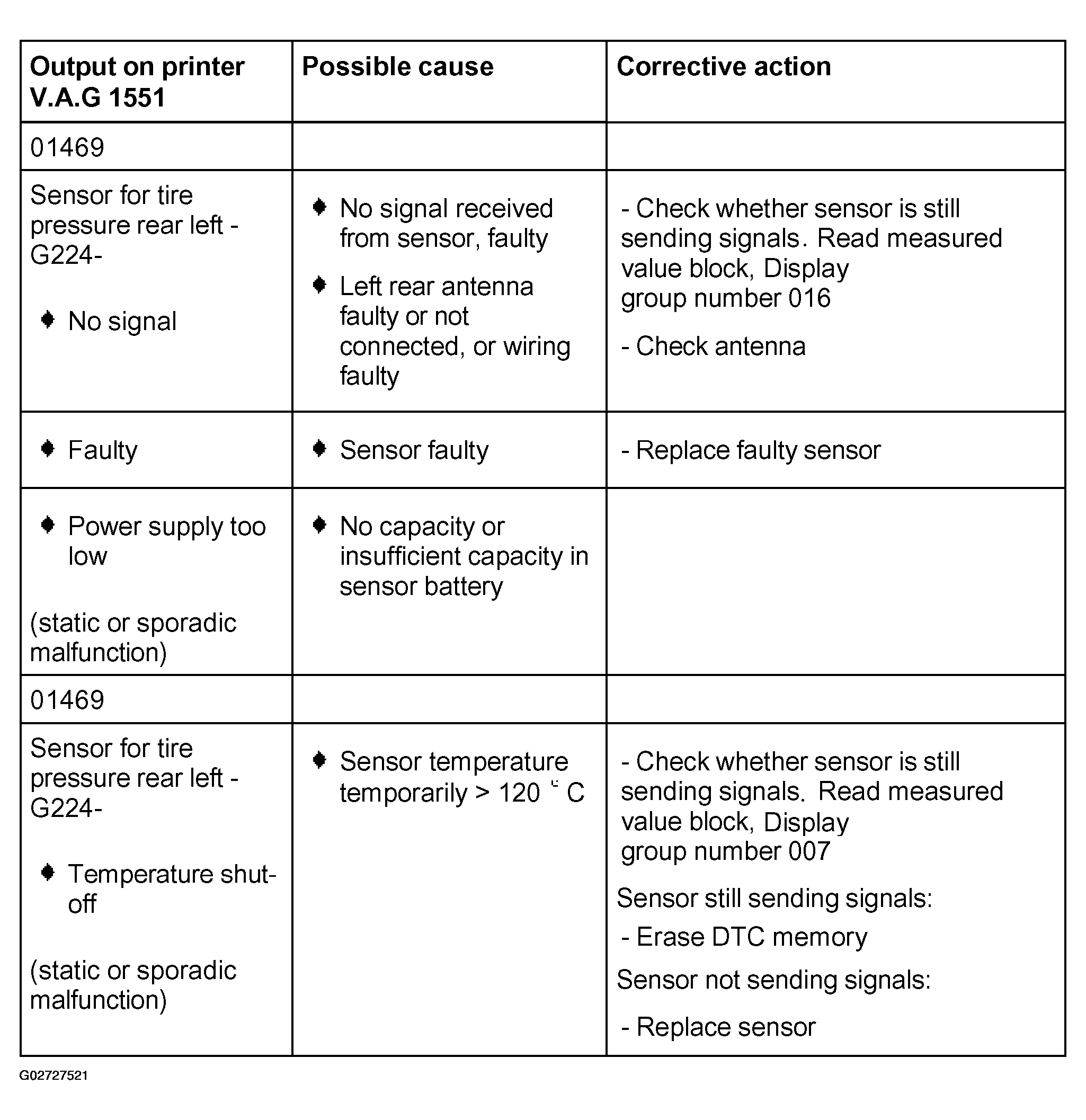

Fig 6: DTC Diagnostic Chart - Tire Pressure Monitor (01469)

Courtesy of AUDI OF AMERICA, INC.

To replace faulty tire pressure sensor or antenna, see WHEELS, TIRES - TIRE PRESSURE CONTROL SYSTEM .

Fig 7: DTC Diagnostic Chart - Tire Pressure Monitor (01470)

Courtesy of AUDI OF AMERICA, INC.

To replace faulty tire pressure sensor or antenna, see WHEELS, TIRES - TIRE PRESSURE CONTROL SYSTEM .

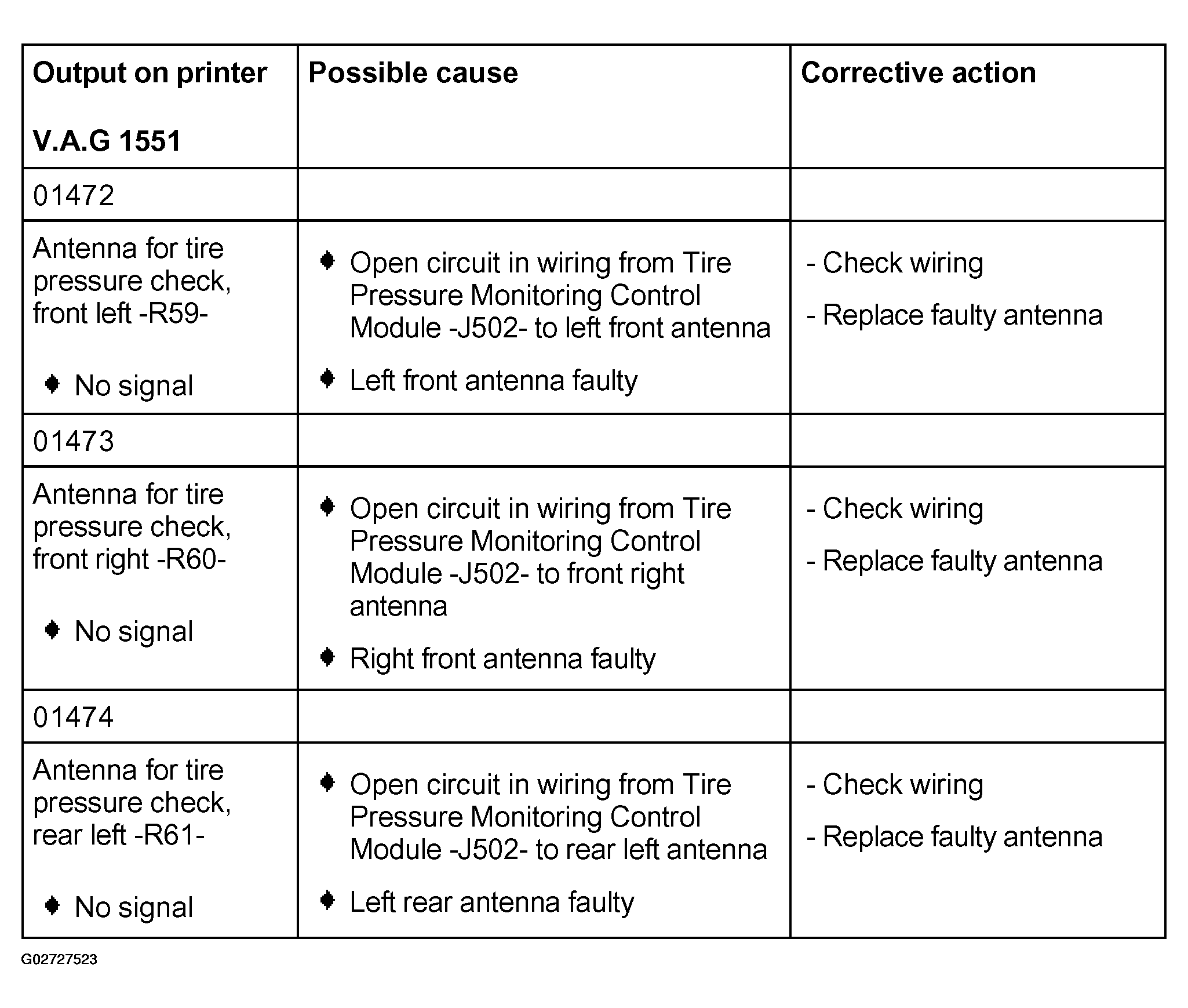

Fig 8: DTC Diagnostic Chart - Tire Pressure Monitor (01472, 01473 & 01474)

Courtesy of AUDI OF AMERICA, INC.

To replace faulty tire pressure sensor or antenna, see WHEELS, TIRES - TIRE PRESSURE CONTROL SYSTEM .

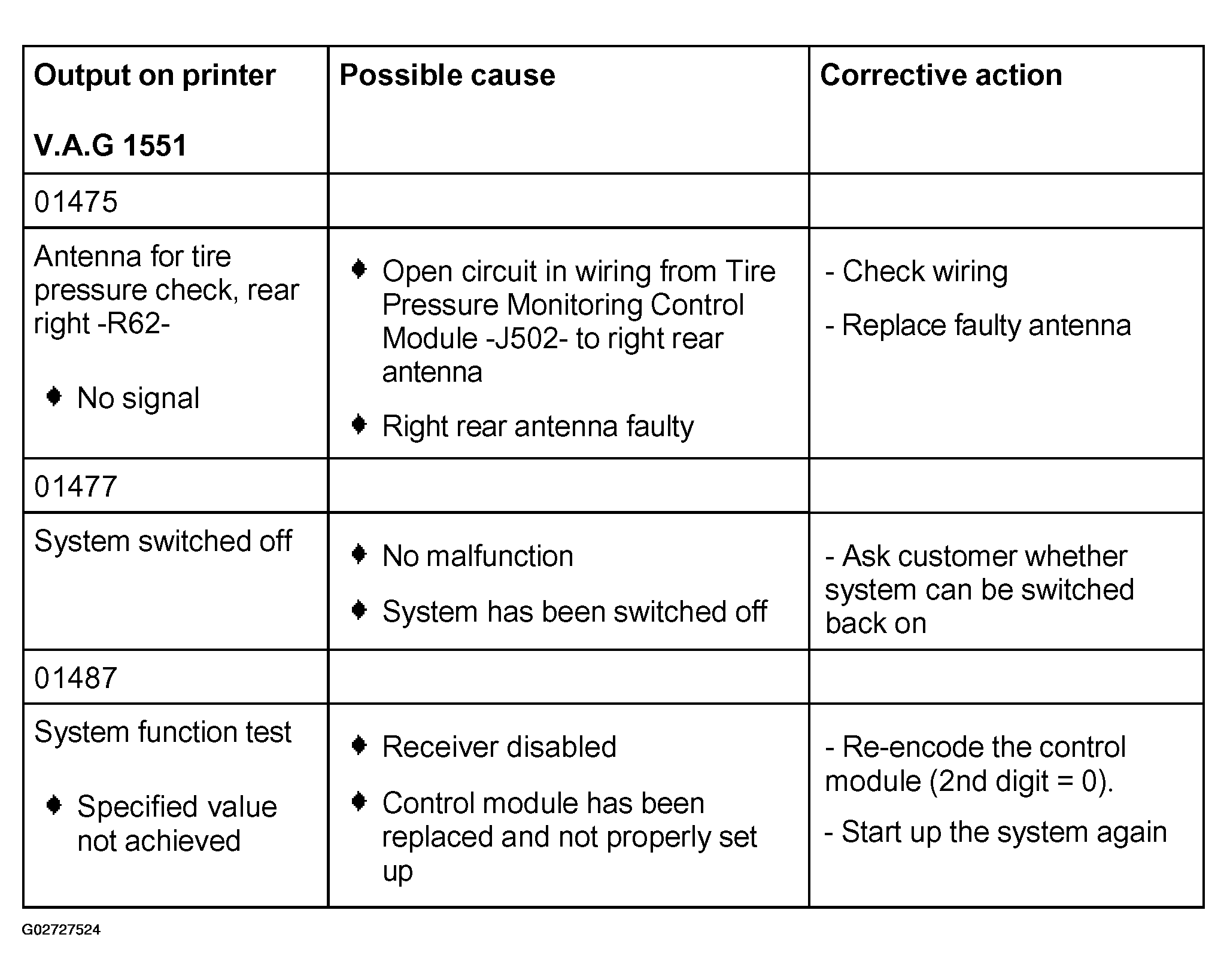

Fig 9: DTC Diagnostic Chart - Tire Pressure Monitor (01475, 01477 & 01487)

Courtesy of AUDI OF AMERICA, INC.

To replace faulty tire pressure sensor or antenna, see WHEELS, TIRES - TIRE PRESSURE CONTROL SYSTEM .

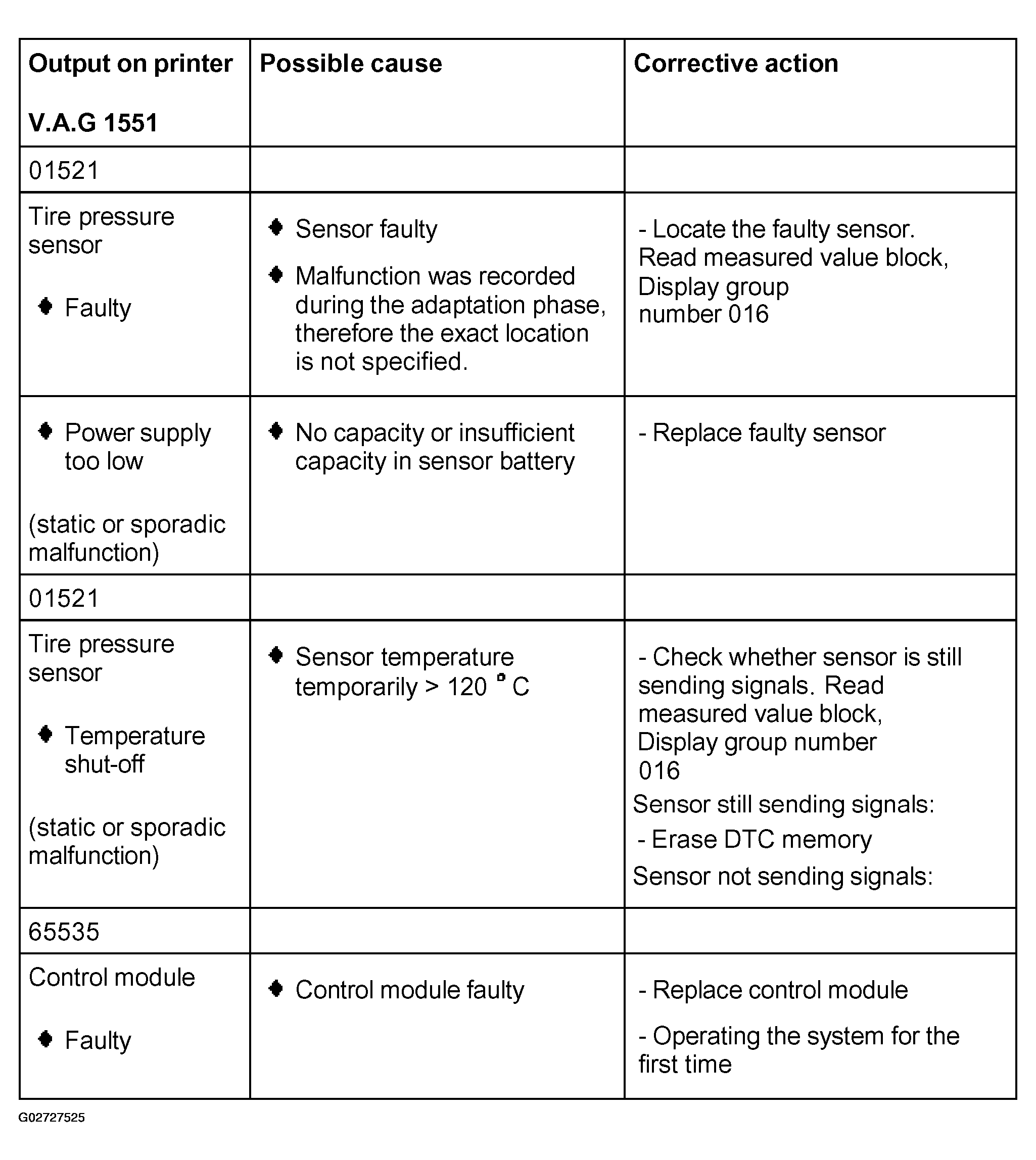

Fig 10: DTC Diagnostic Chart - Tire Pressure Monitor (01521 & 65535)

Courtesy of AUDI OF AMERICA, INC.

For more battery information, see BATTERY DISCONNECT PRECAUTIONS .
For "read measured value block" and related information, see READ MEASURED VALUE BLOCK .
To replace faulty tire pressure sensor or antenna, see WHEELS, TIRES - TIRE PRESSURE CONTROL SYSTEM .
For more information about encoding the control module, see ENCODE CONTROL MODULE
For instrument cluster diagnostic information, see ON BOARD DIAGNOSTIC (OBD) (1997-99), or ON BOARD DIAGNOSTIC (OBD) (2000-03).
