DTC table; DTCs 00000 to 00526

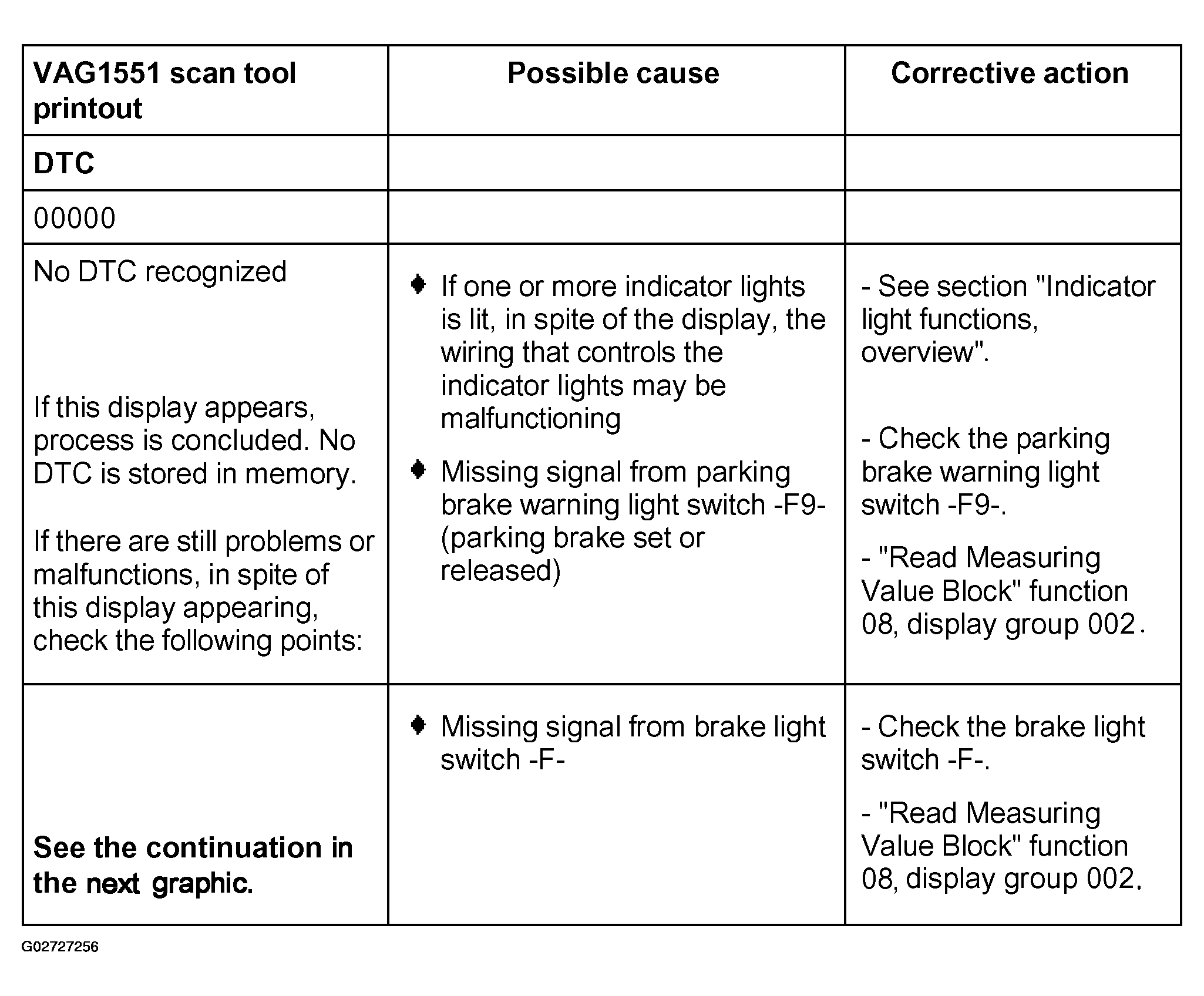

Fig 1: DTC 00000 - Bosch 5.3, With ESP (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

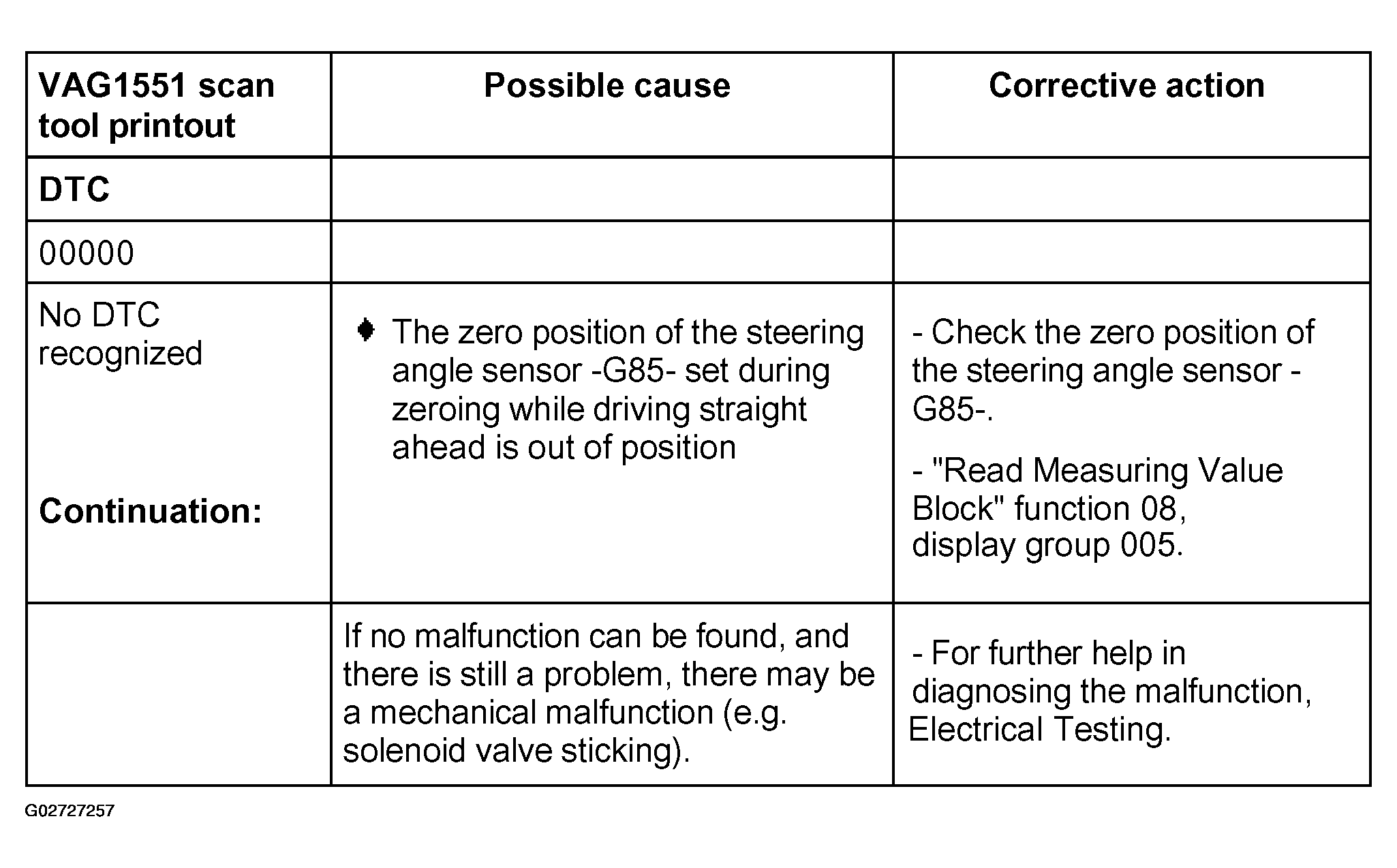

Fig 2: DTC 00000 - Bosch 5.3, With ESP (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

For "read measuring value block" and related information. See MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For Indicator light functions, see INDICATOR LIGHT FUNCTIONS, OVERVIEW .
For Electrical testing, see ELECTRICAL TESTING .

Fig 3: DTC 00257 - Bosch 5.3 With, ESP

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .

Fig 4: DTC 00259 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .

Fig 5: DTC 00265- Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .

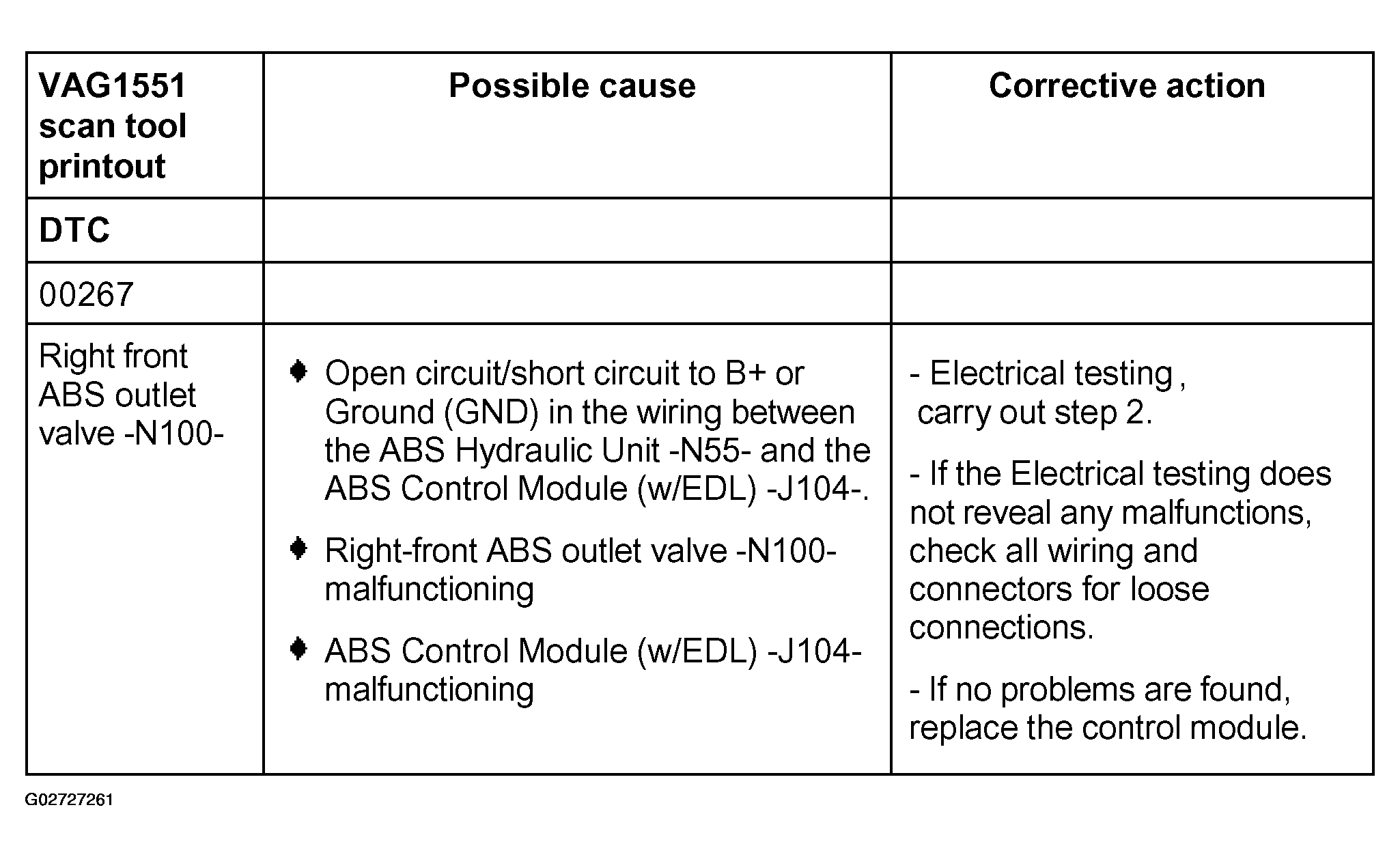

Fig 6: DTC 00267 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .

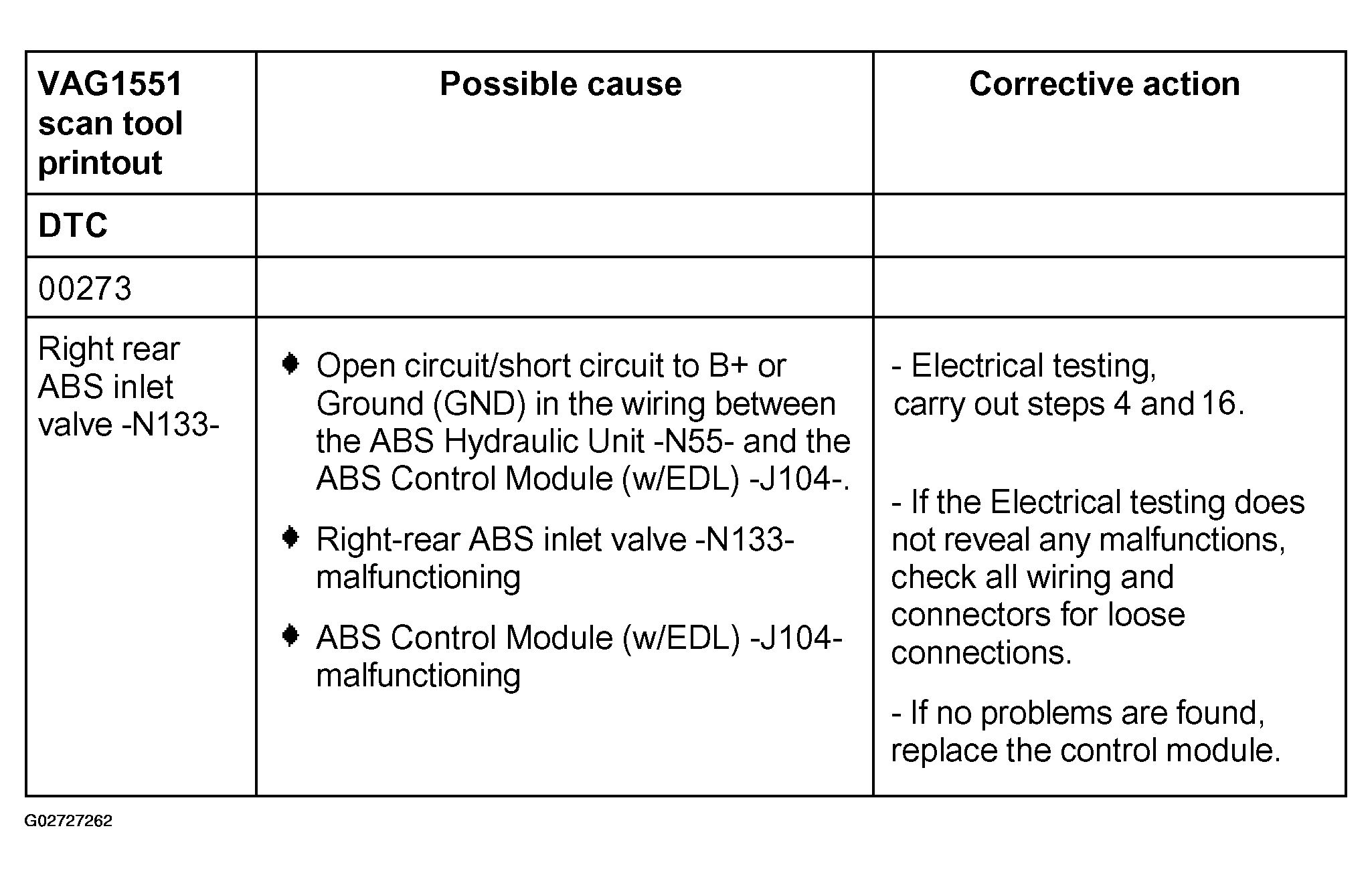

Fig 7: DTC 00273 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .

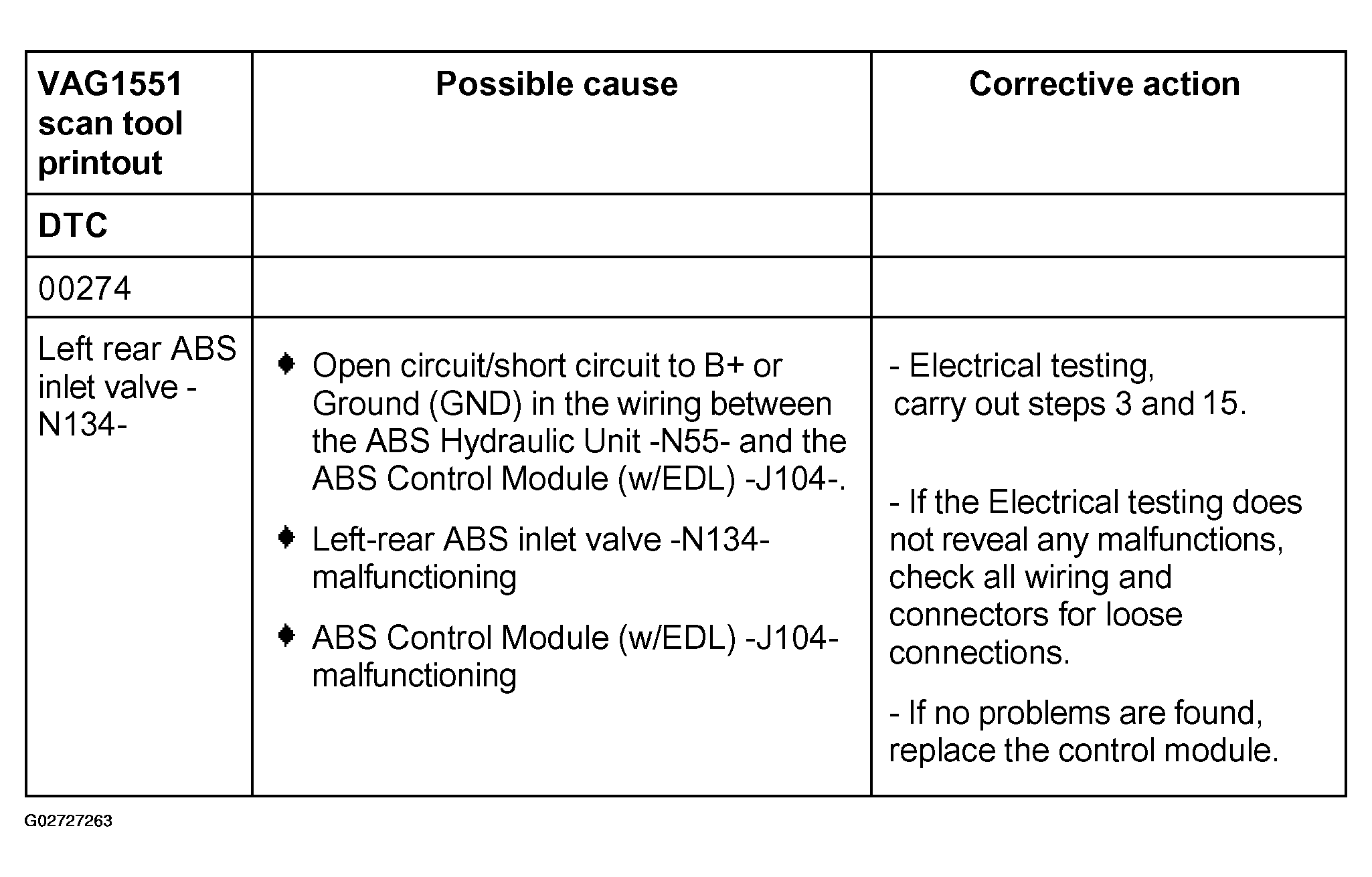

Fig 8: DTC 00274 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .

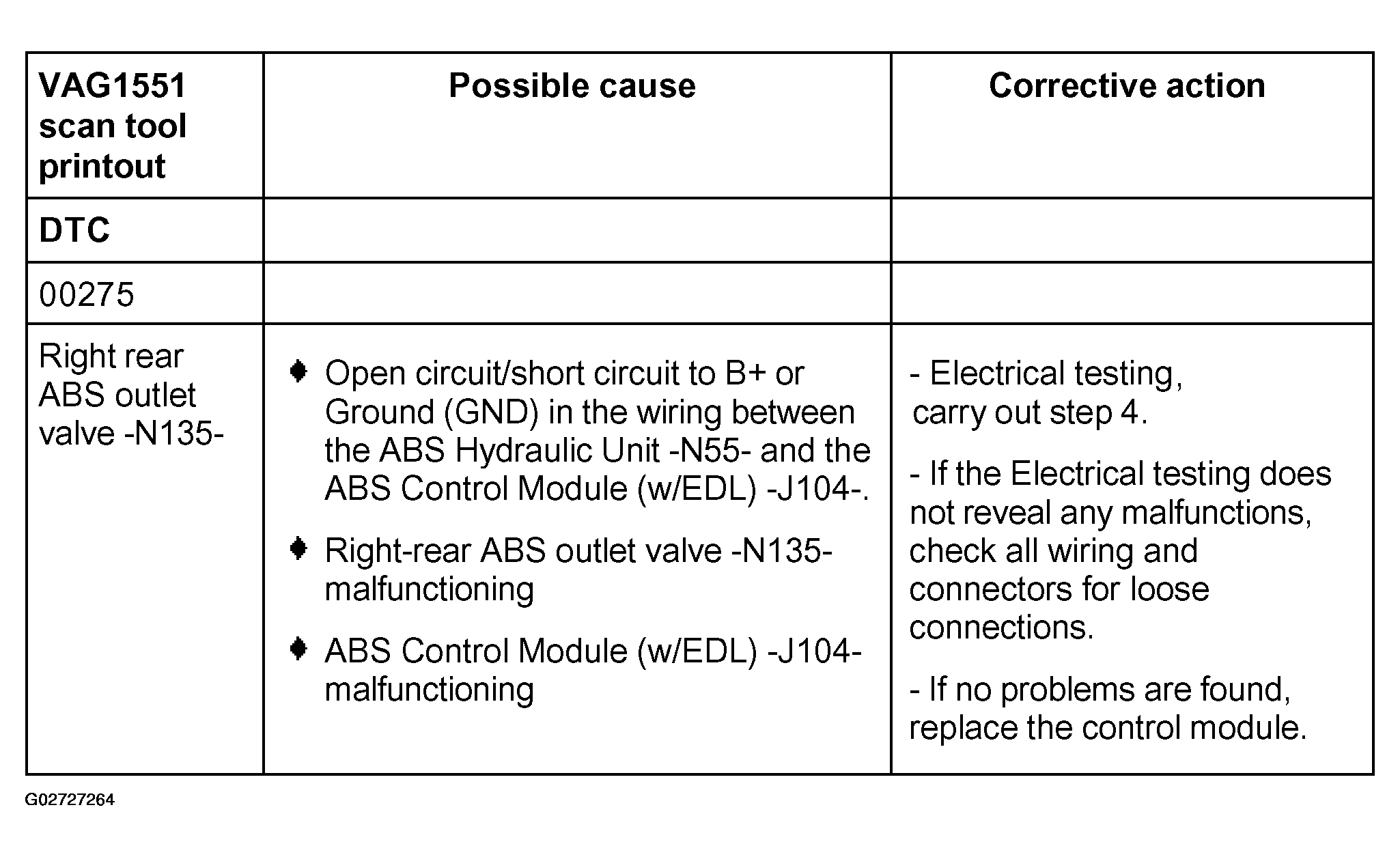

Fig 9: DTC 00275 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .

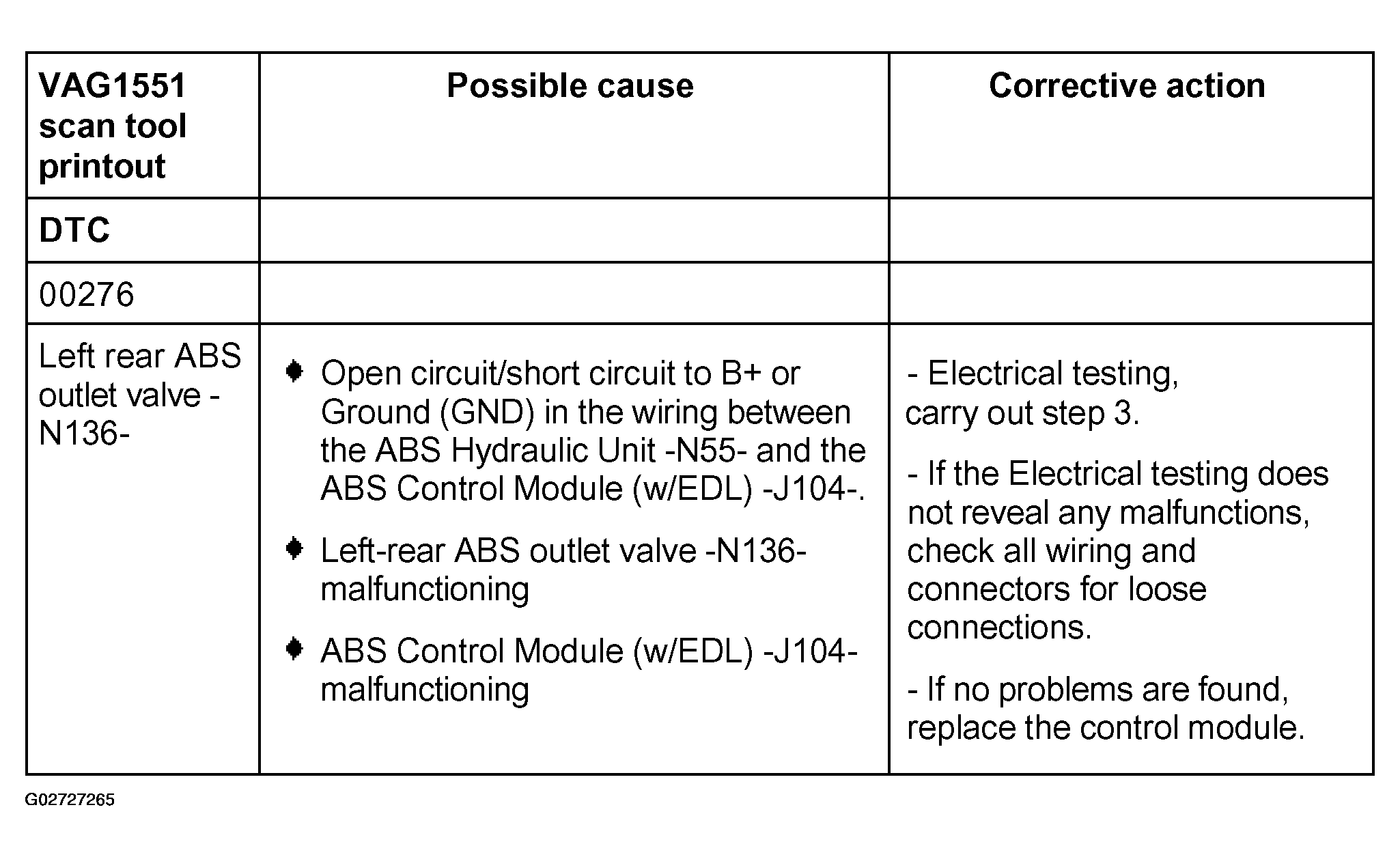

Fig 10: DTC 00276 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .

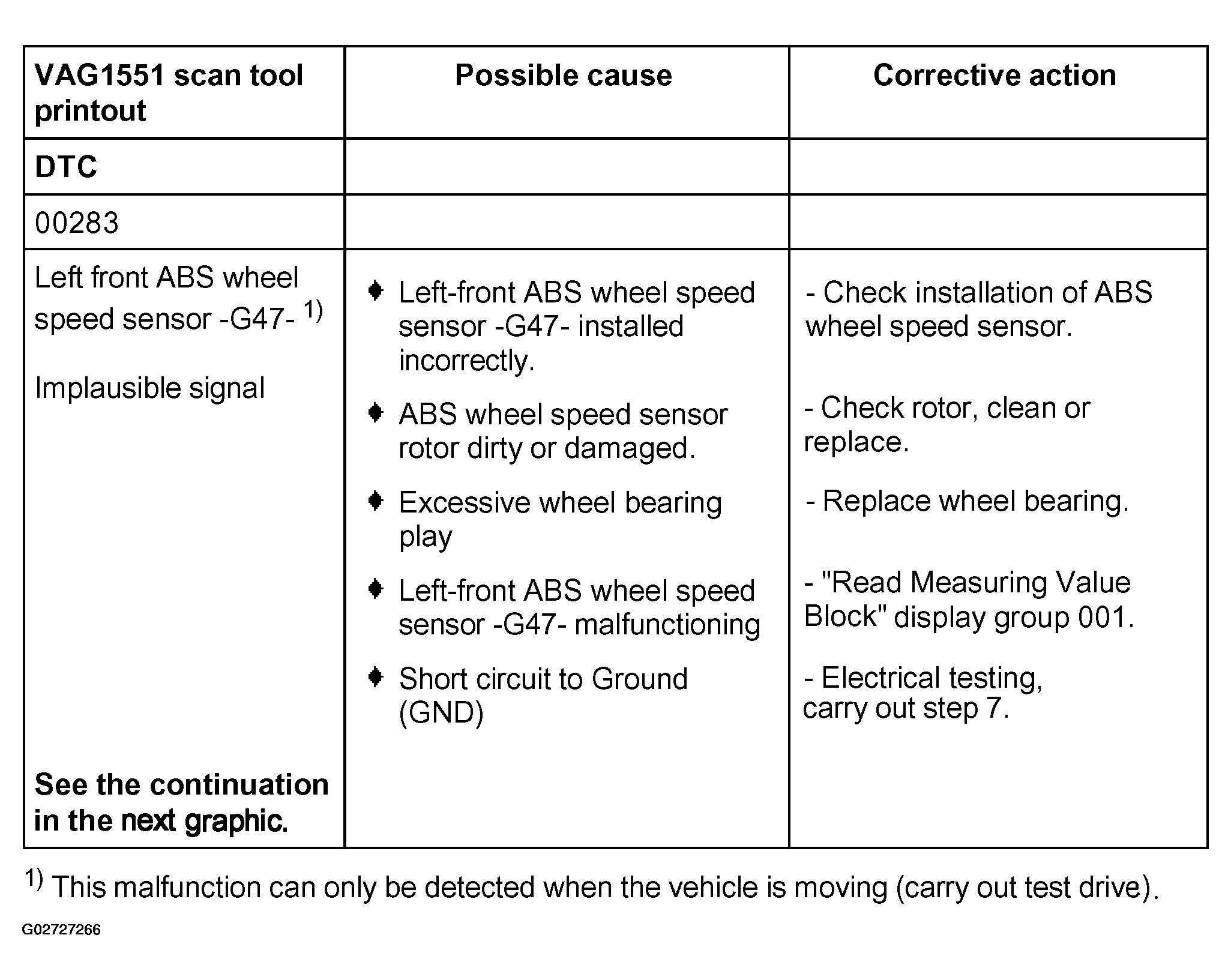

Fig 11: DTC 00283 - Bosch 5.3, With ESP (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

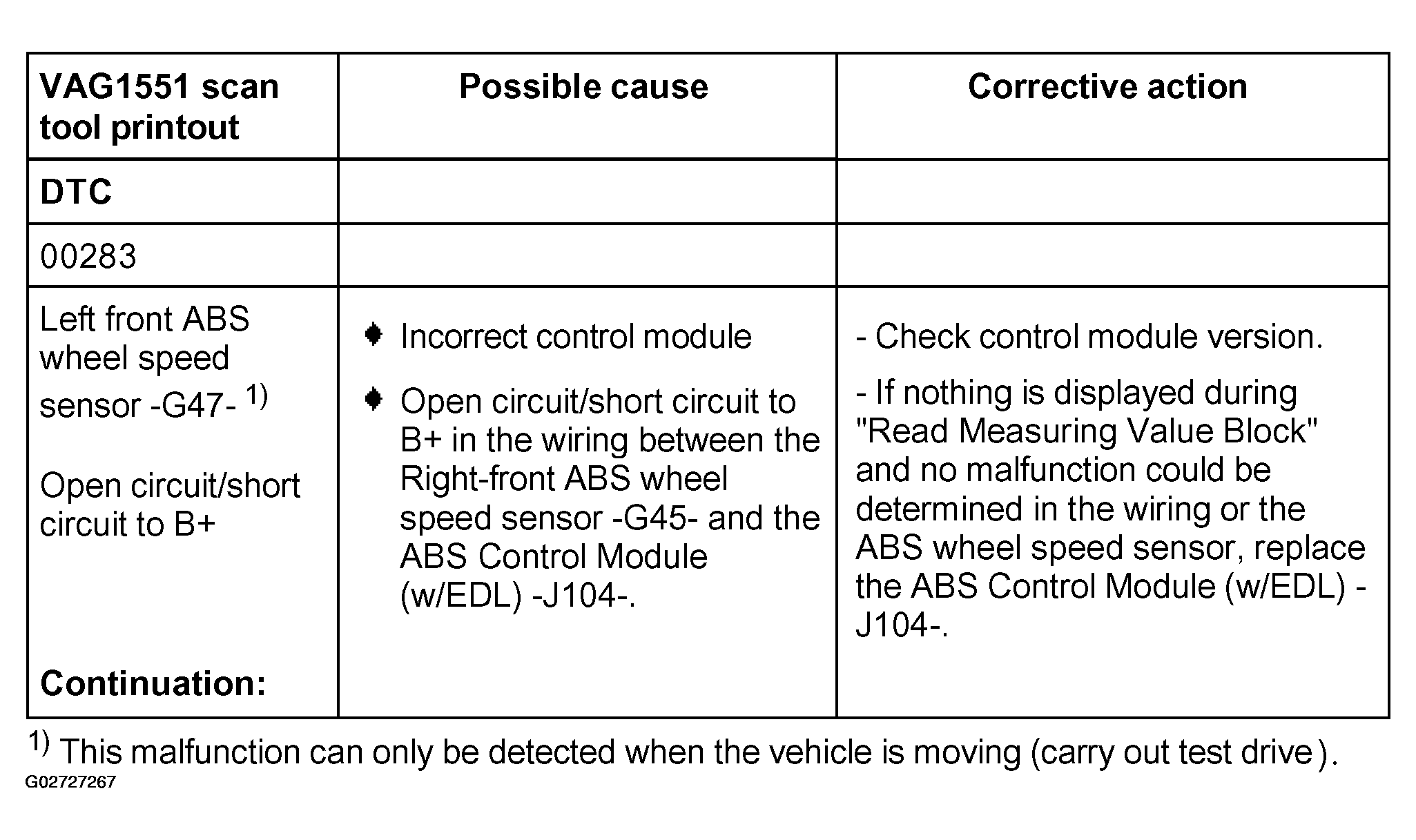

Fig 12: DTC 00283 - Bosch 5.3, With ESP (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

For ABS wheel speed sensor information, see ANTILOCK BRAKE SYSTEM .
For rotor information, see DISC .
For wheel bearing information, see SUSPENSION - FRONT or SUSPENSION - REAR .
For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For Electrical testing, see ELECTRICAL TESTING .

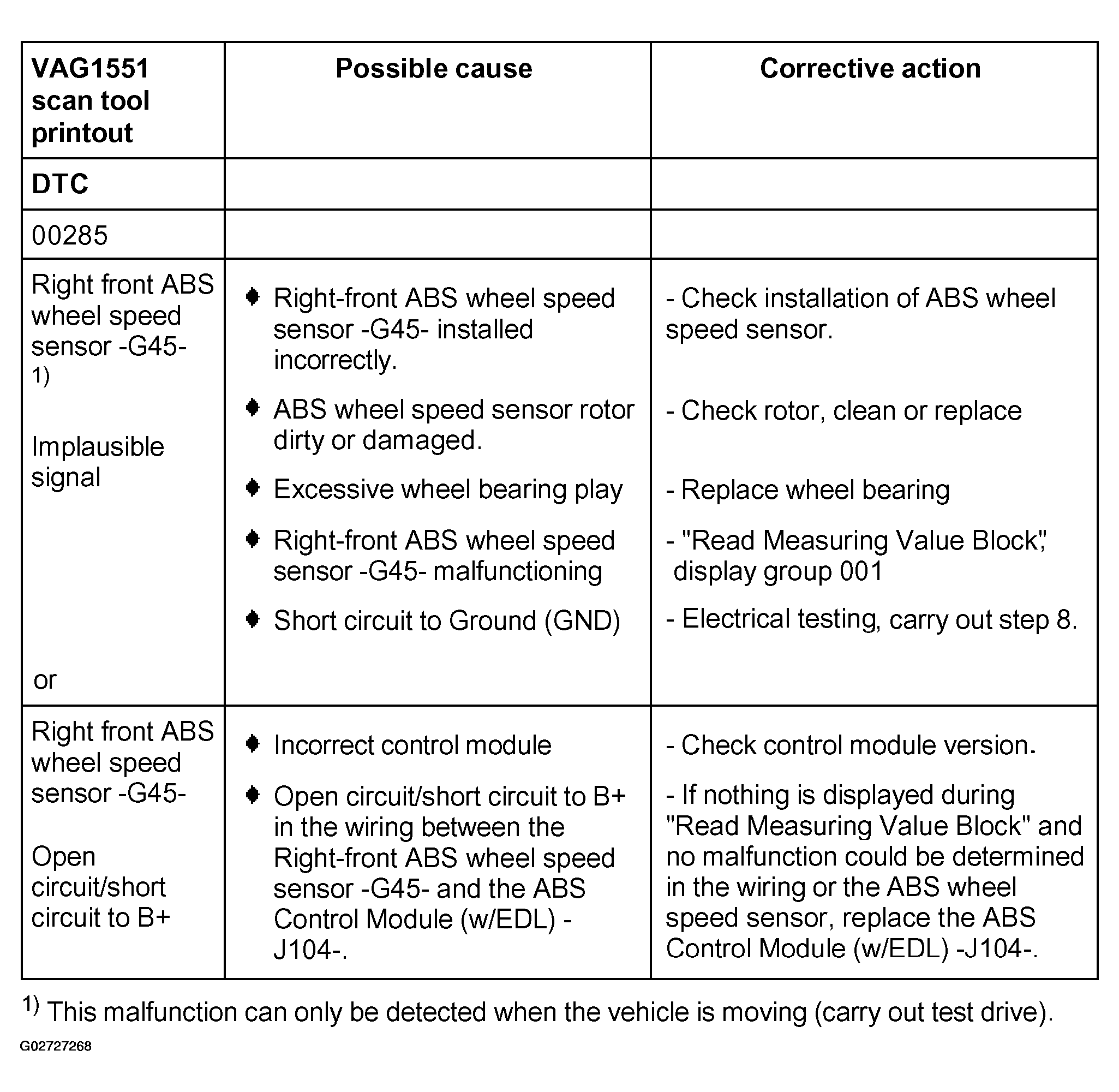

Fig 13: DTC 00285 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For ABS wheel speed sensor information, see ANTILOCK BRAKE SYSTEM .
For rotor information, see DISC .
For wheel bearing information, see SUSPENSION - FRONT or SUSPENSION - REAR .
For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For Electrical testing, see ELECTRICAL TESTING .

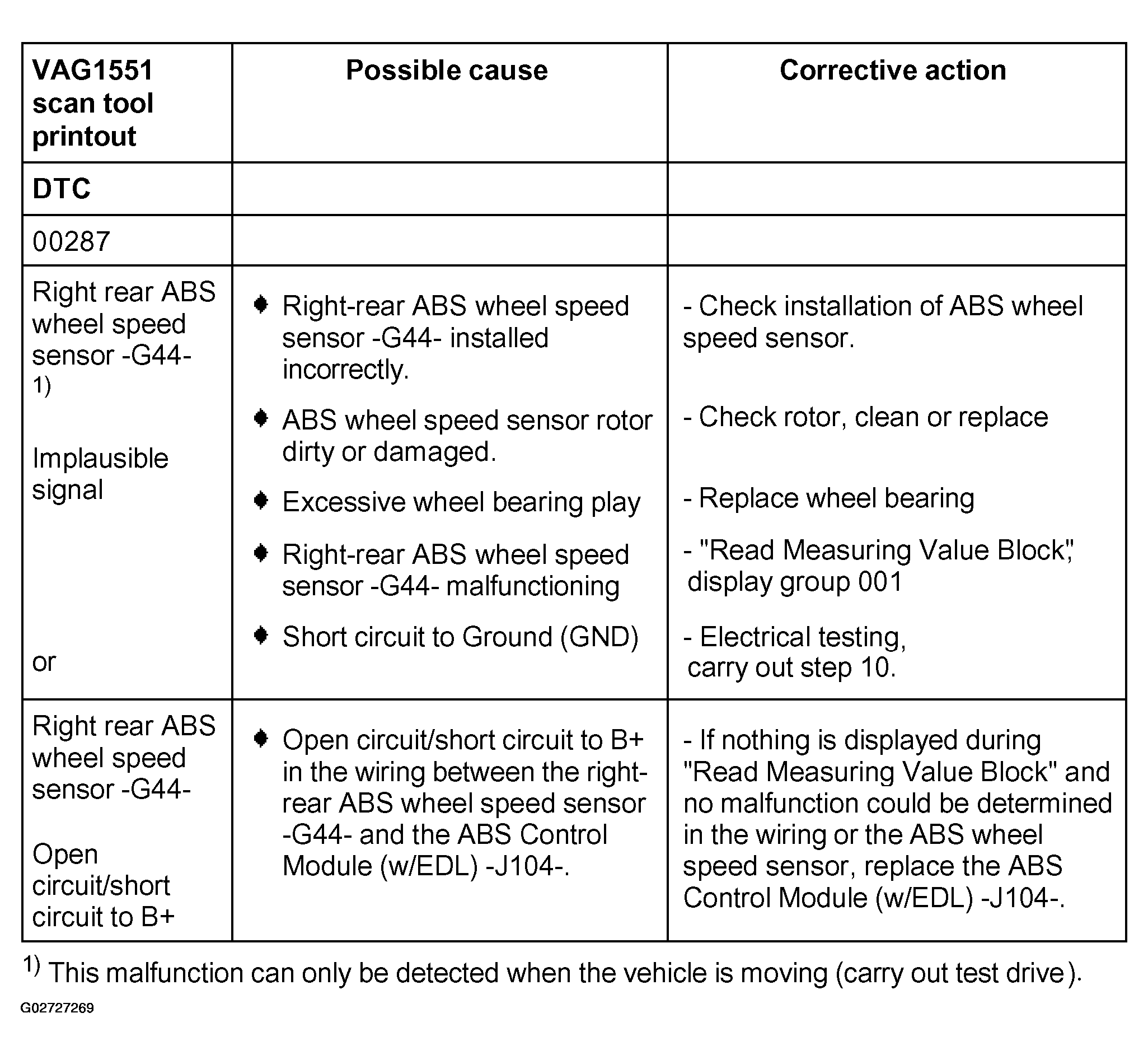

Fig 14: DTC 00287 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For ABS wheel speed sensor information, see ANTILOCK BRAKE SYSTEM .
For rotor information, see DISC .
For wheel bearing information, see SUSPENSION - FRONT or SUSPENSION - REAR .
For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For Electrical testing, see ELECTRICAL TESTING .

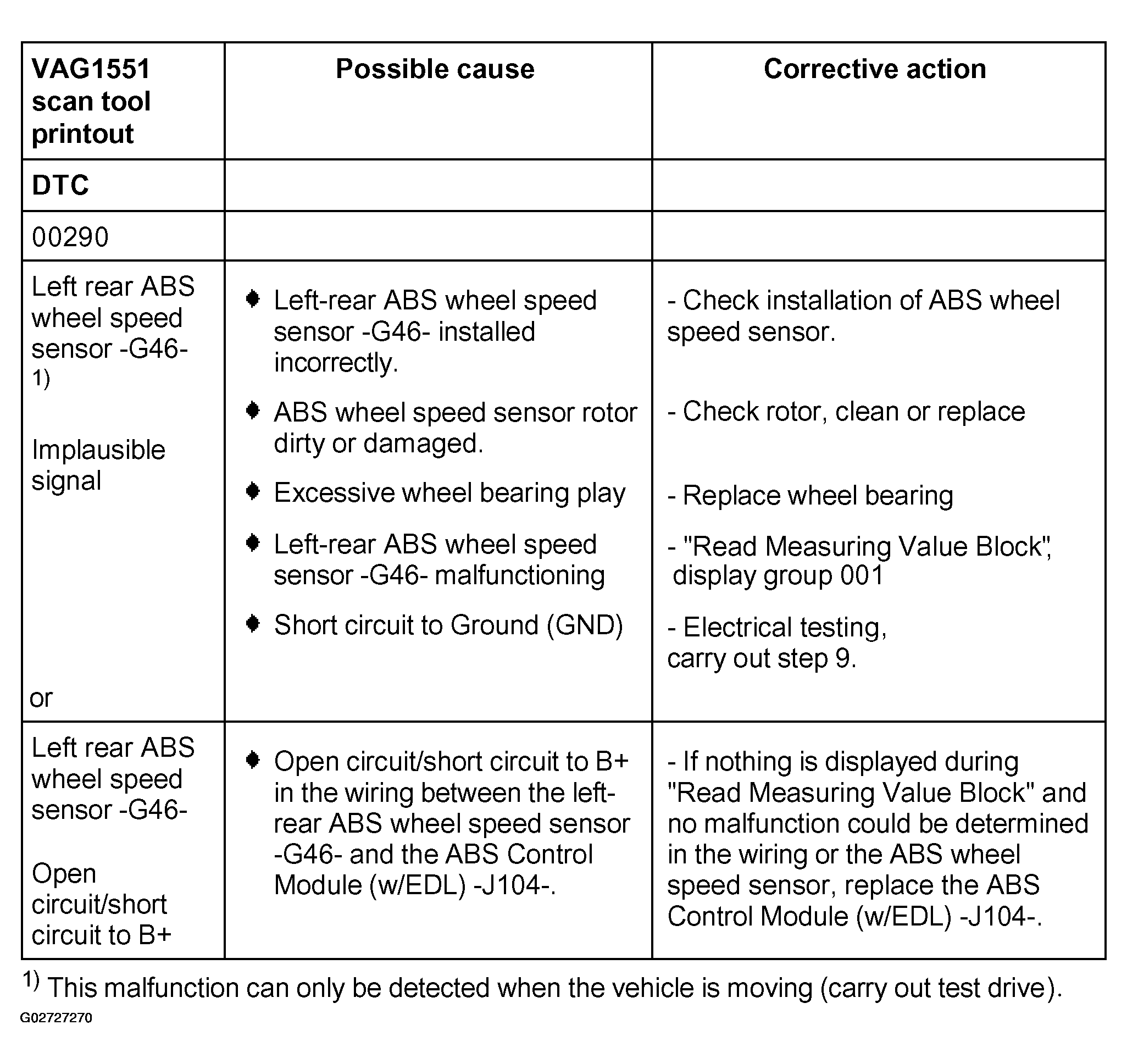

Fig 15: DTC 00290 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.

For ABS wheel speed sensor information, see ANTILOCK BRAKE SYSTEM .
For rotor information, see DISC .
For wheel bearing information, see SUSPENSION - FRONT or SUSPENSION - REAR .
For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For Electrical testing, see ELECTRICAL TESTING .

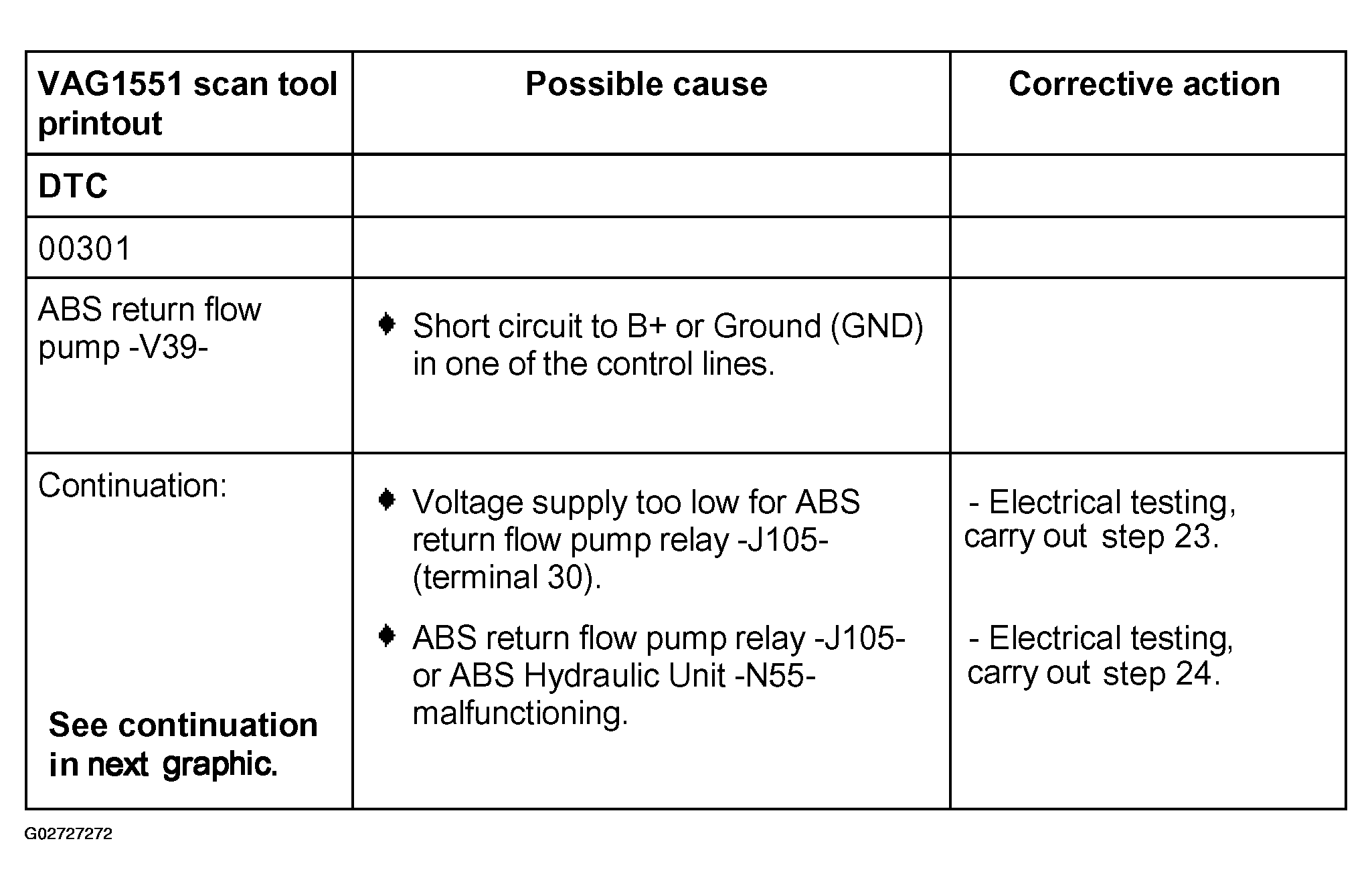

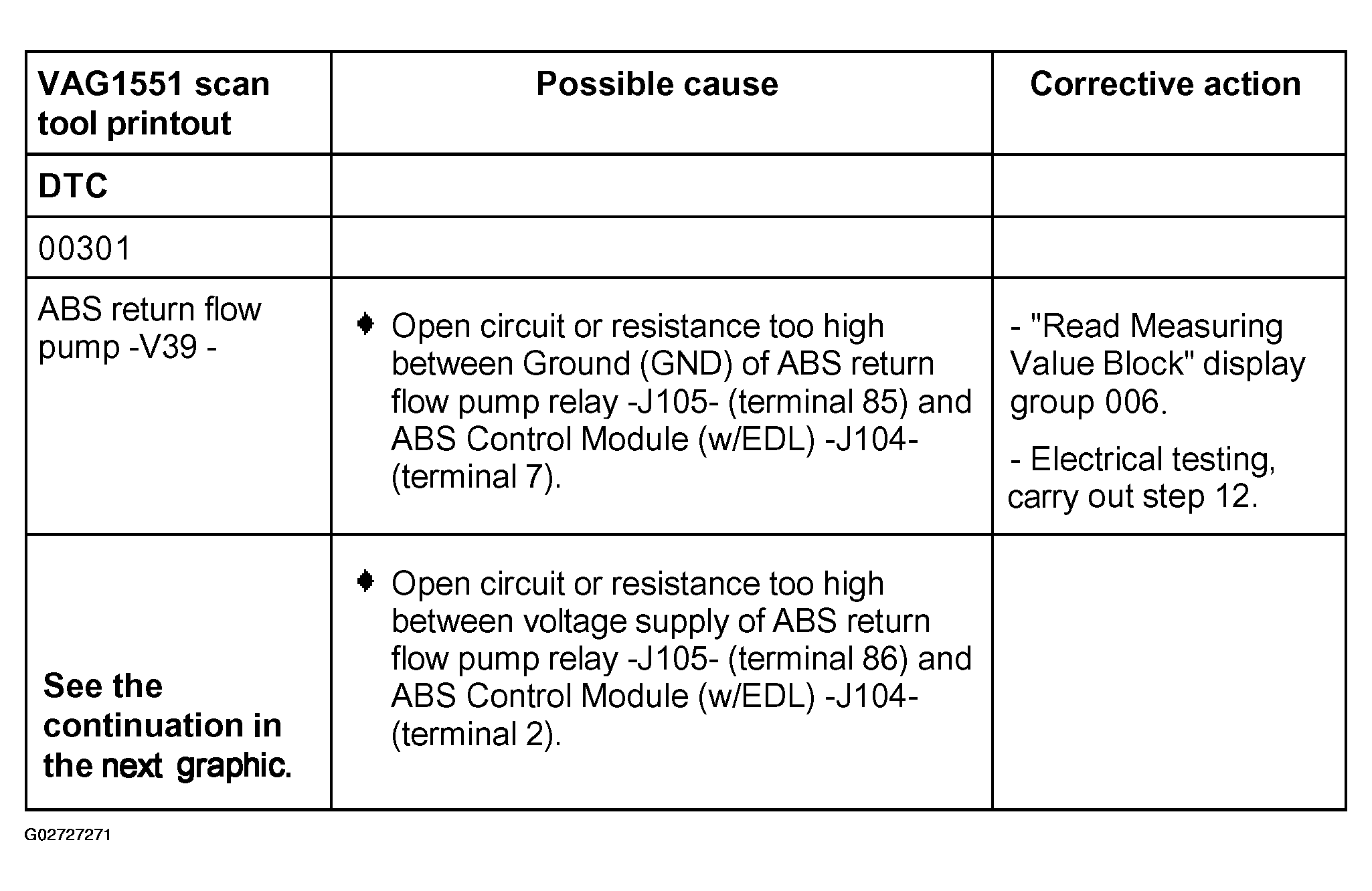

Fig 16: DTC 00301 - Bosch 5.3, With ESP (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

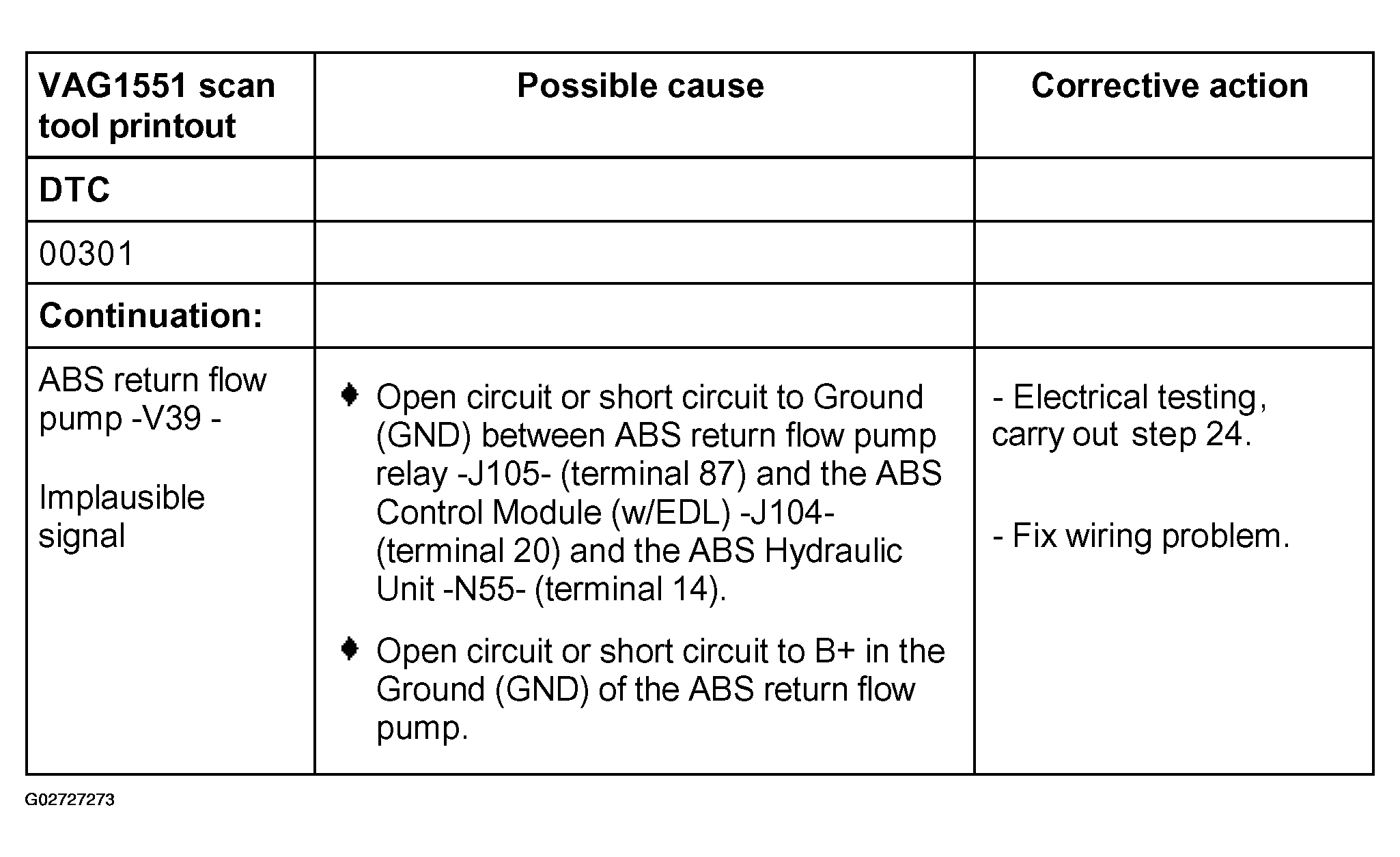

Fig 17: DTC 00301 - Bosch 5.3, With ESP (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

Fig 18: DTC 00301 - Bosch 5.3, With ESP (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For Electrical testing, see ELECTRICAL TESTING .

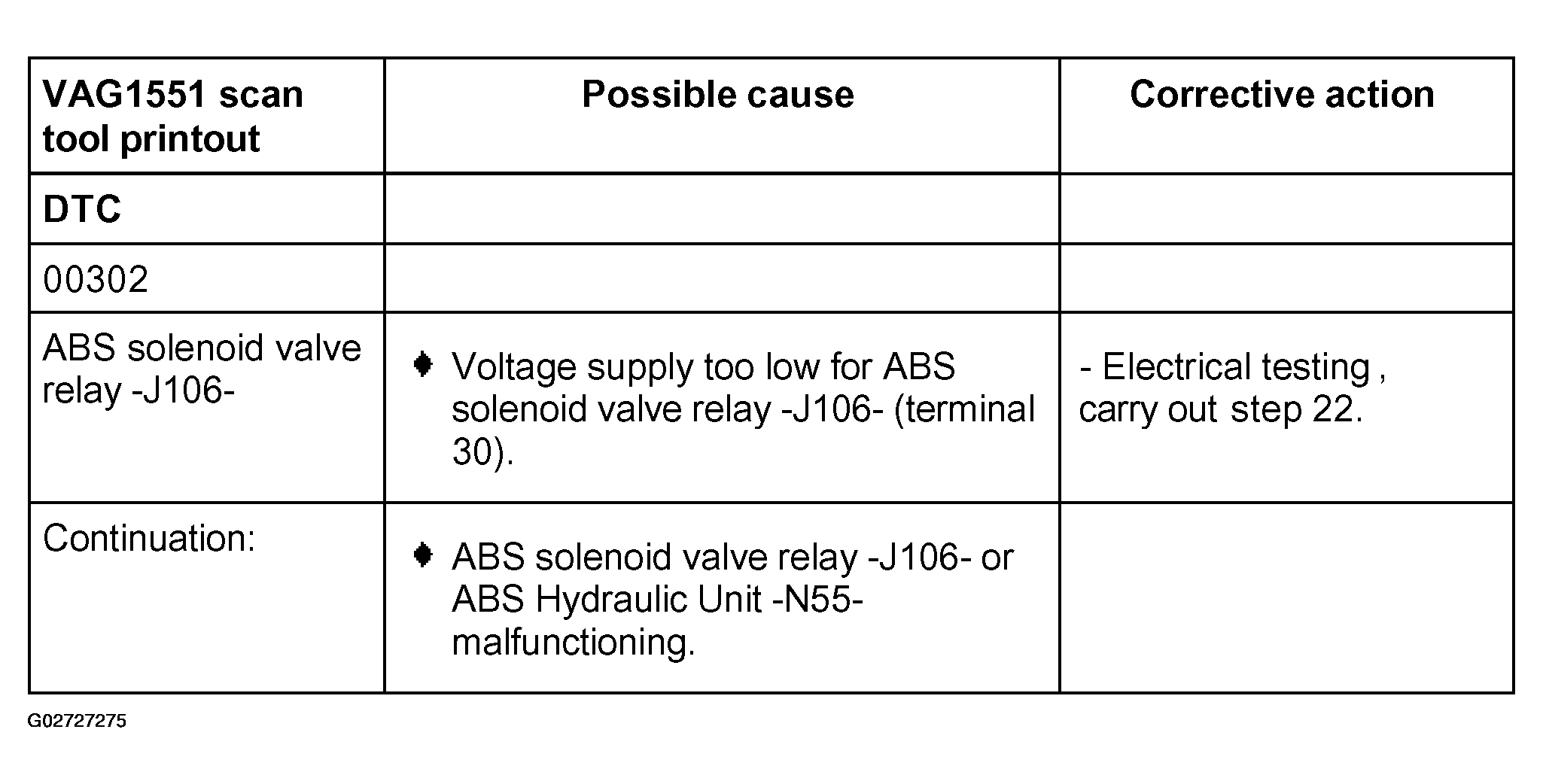

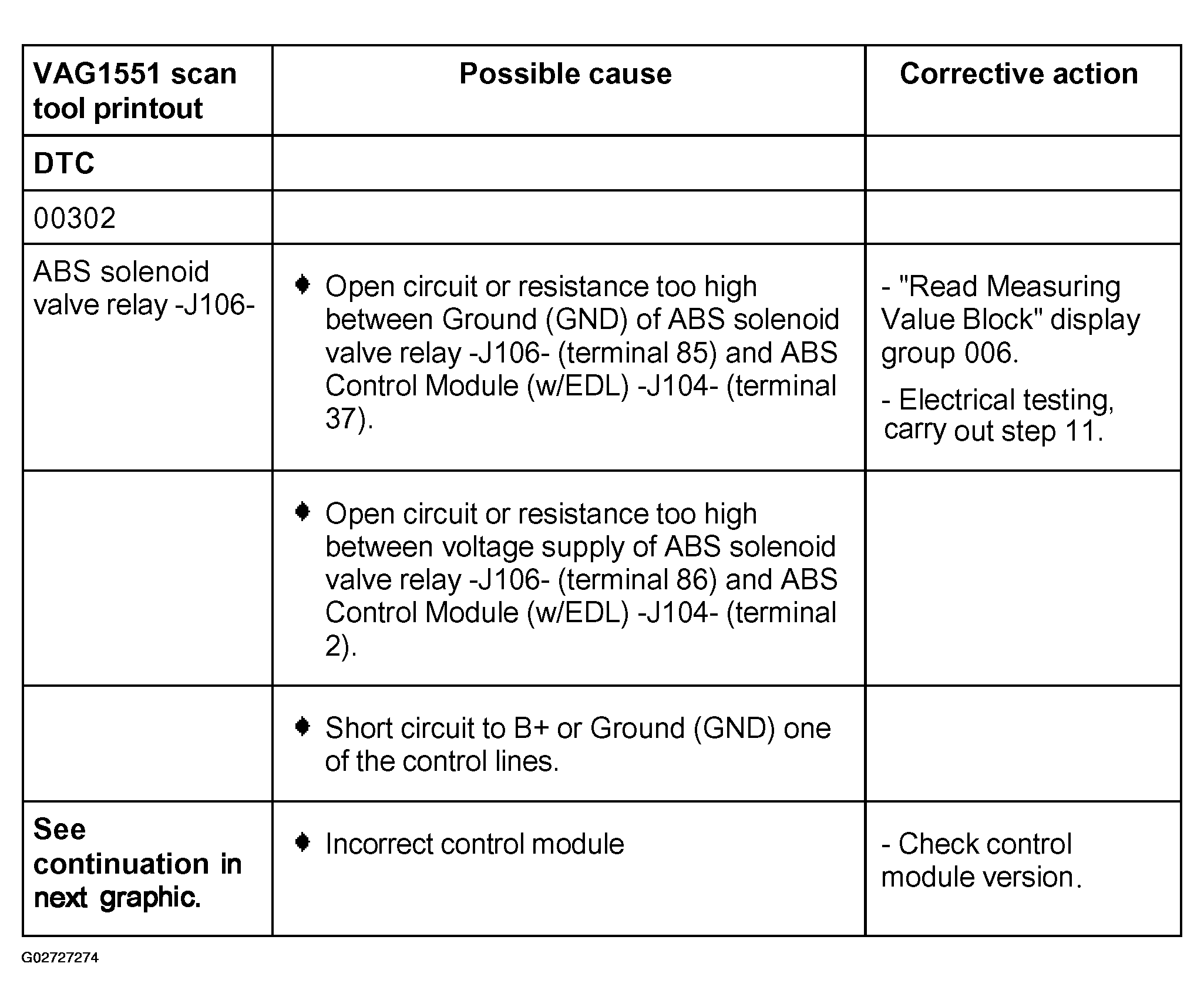

Fig 19: DTC 00302 - Bosch 5.3, With ESP (1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

Fig 20: DTC 00302 - Bosch 5.3, With ESP (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For Electrical testing, see ELECTRICAL TESTING .

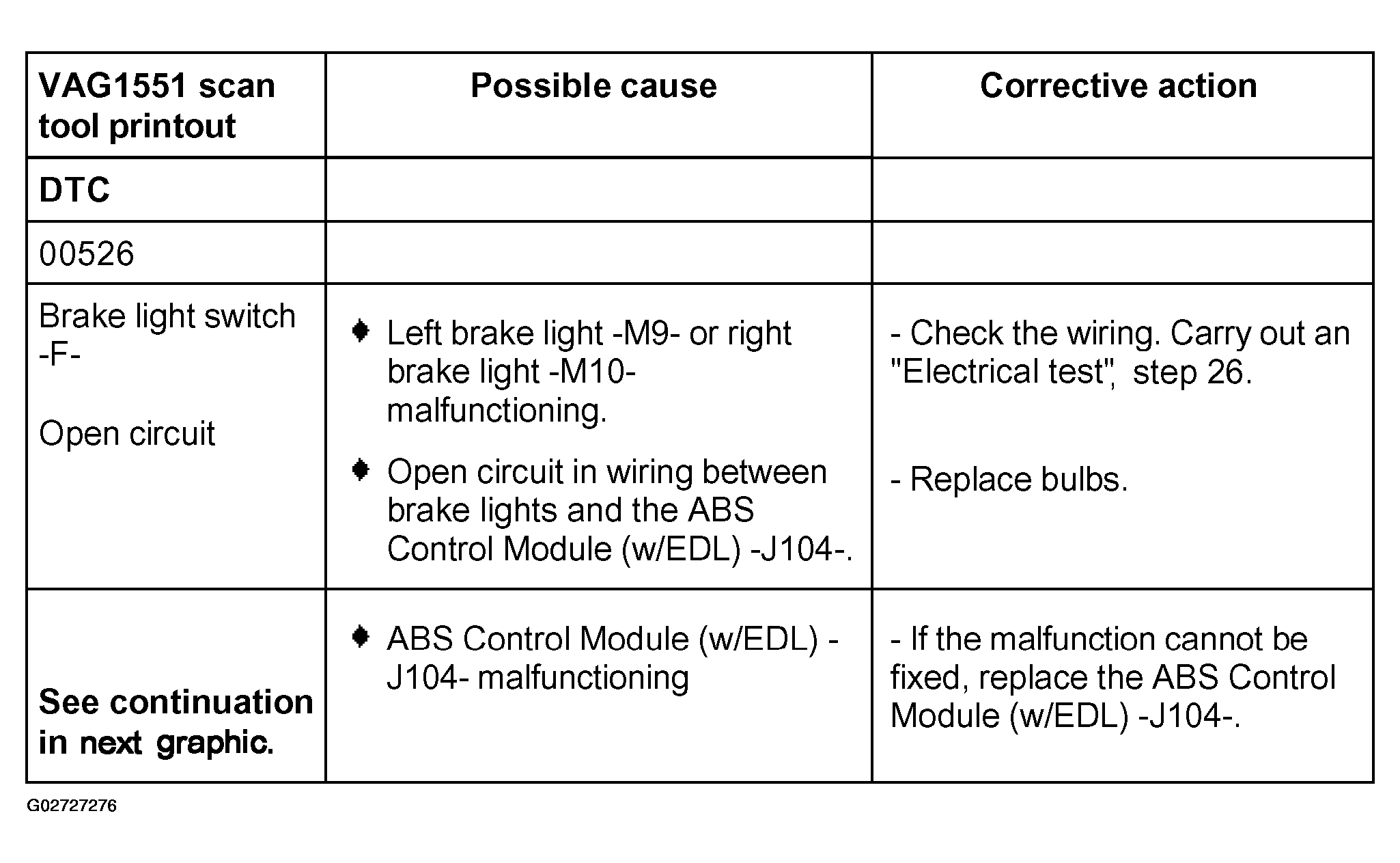

Fig 21: DTC 00526 - Bosch 5.3, With ESP (1 Of 3)

Courtesy of AUDI OF AMERICA, INC.

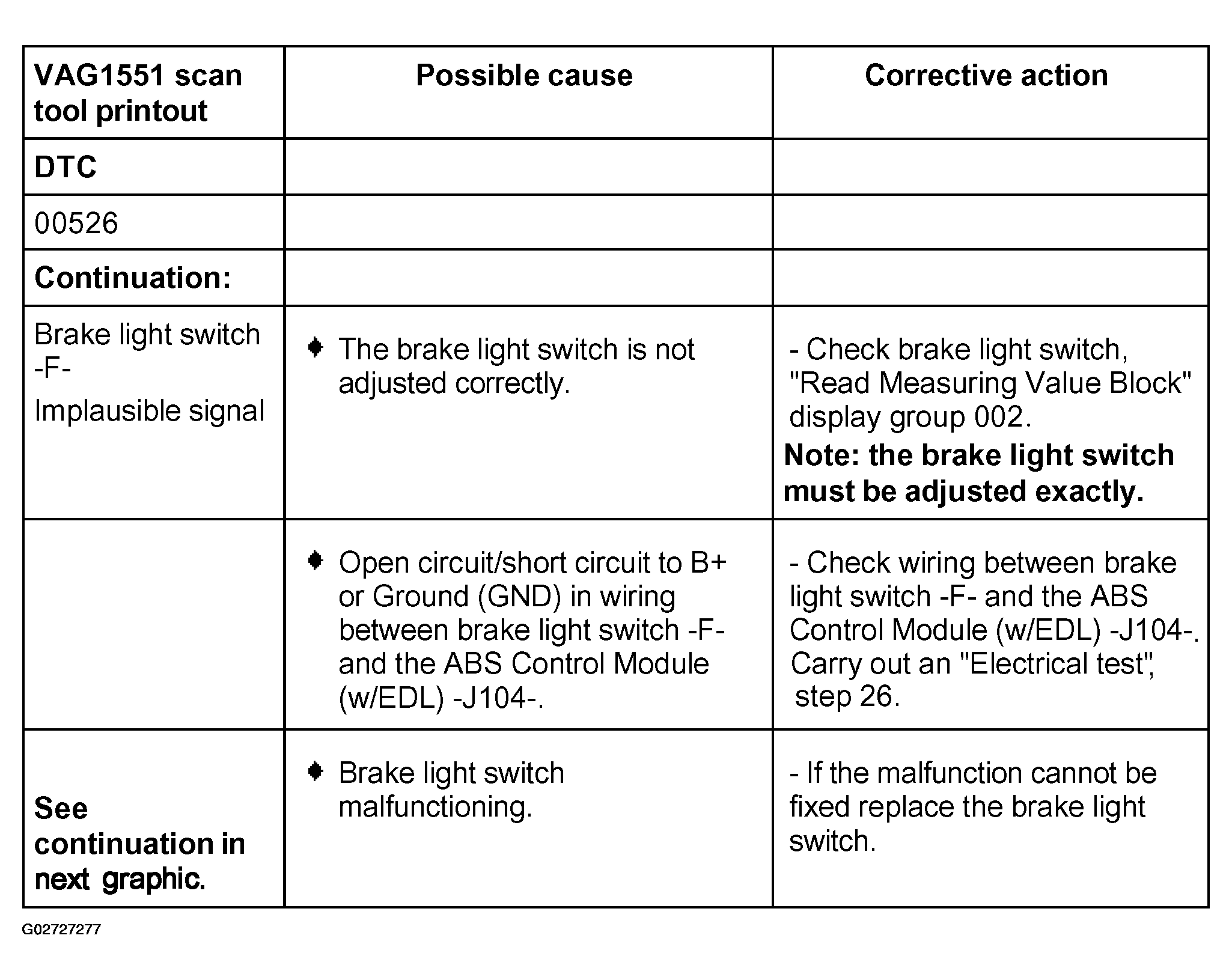

Fig 22: DTC 00526 - Bosch 5.3, With ESP (2 Of 3)

Courtesy of AUDI OF AMERICA, INC.

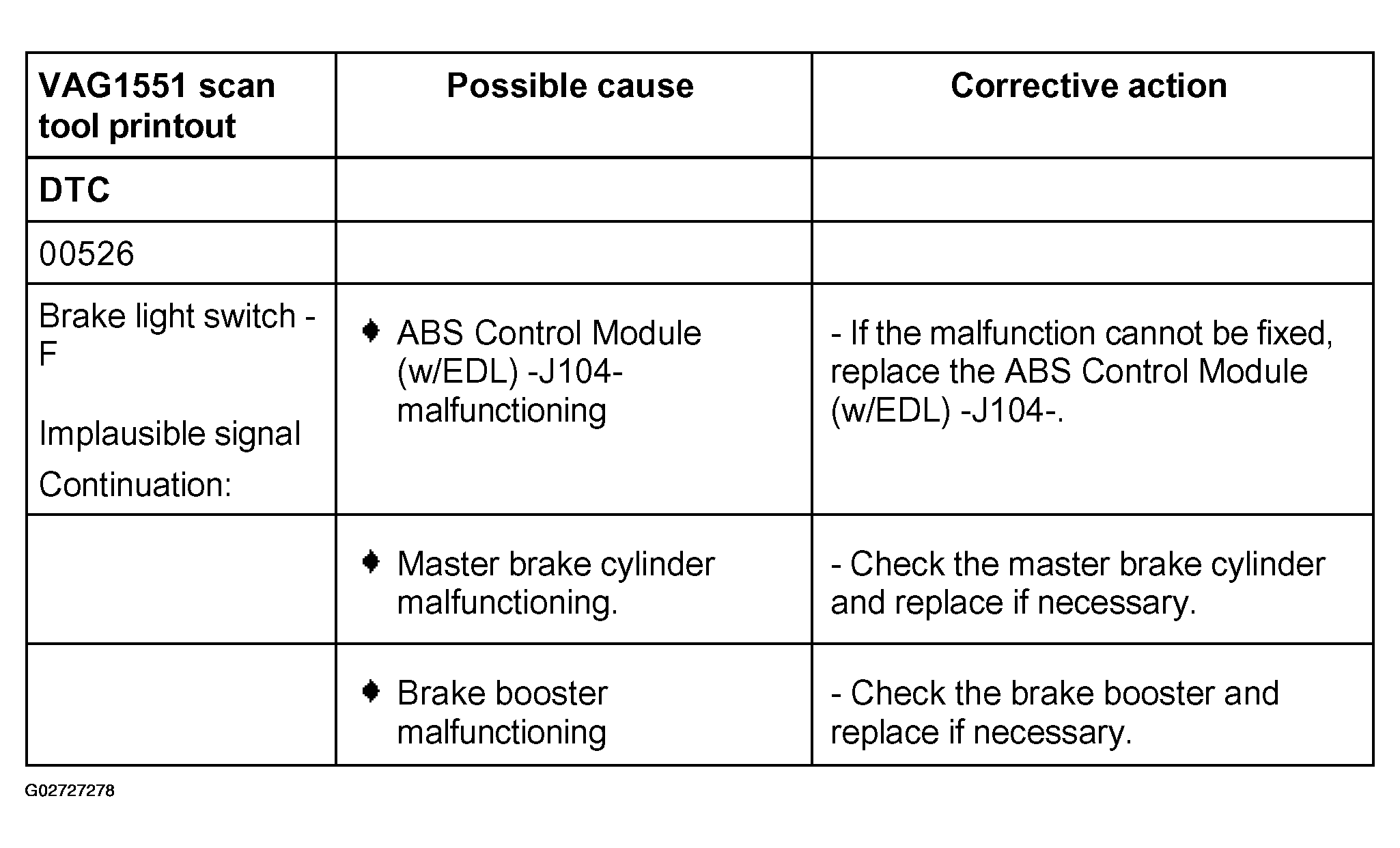

Fig 23: DTC 00526 - Bosch 5.3, With ESP (3 Of 3)

Courtesy of AUDI OF AMERICA, INC.

For Electrical testing, see ELECTRICAL TESTING .
For information regarding the ABS Control Module, see ANTILOCK BRAKE SYSTEM .
For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For master cylinder and brake booster information, see DISC .
