Table of warning light functions

• First switch on the ignition and check that the warning lights light up. The status of the ABS Warning Light -K47-, the Traction Control Indicator Light -K86- and the red brake warning light will give you a first indication of the operating status of the system.

The red brake warning light is incorporated in the display of the driver information system.

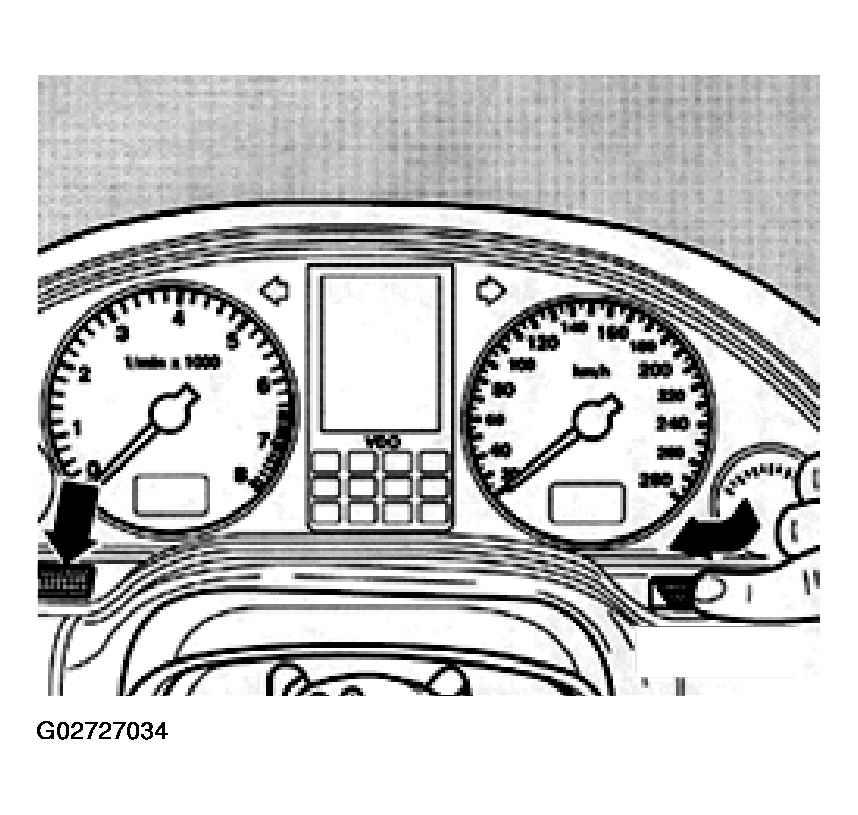

Fig 1: Locating Warning Light - Bosch 5.0

Courtesy of AUDI OF AMERICA, INC.

The ABS Warning Light -K47-, (-4-), and the Traction Control Indicator Light -K86-, (-12-), are located underneath the display.

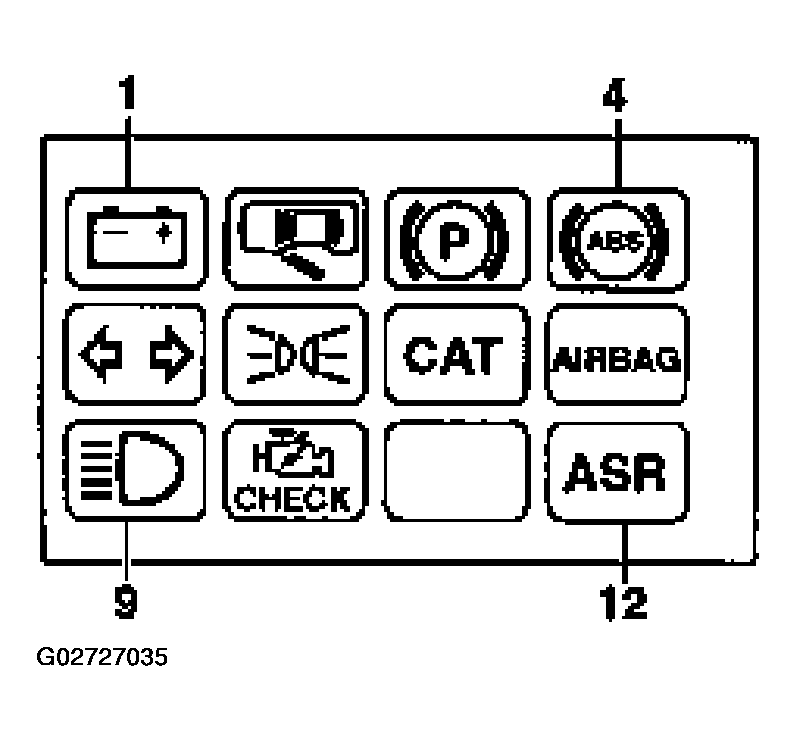

Fig 2: Identifying ABS And Traction Control Indicator Light - Bosch 5.0

Courtesy of AUDI OF AMERICA, INC.

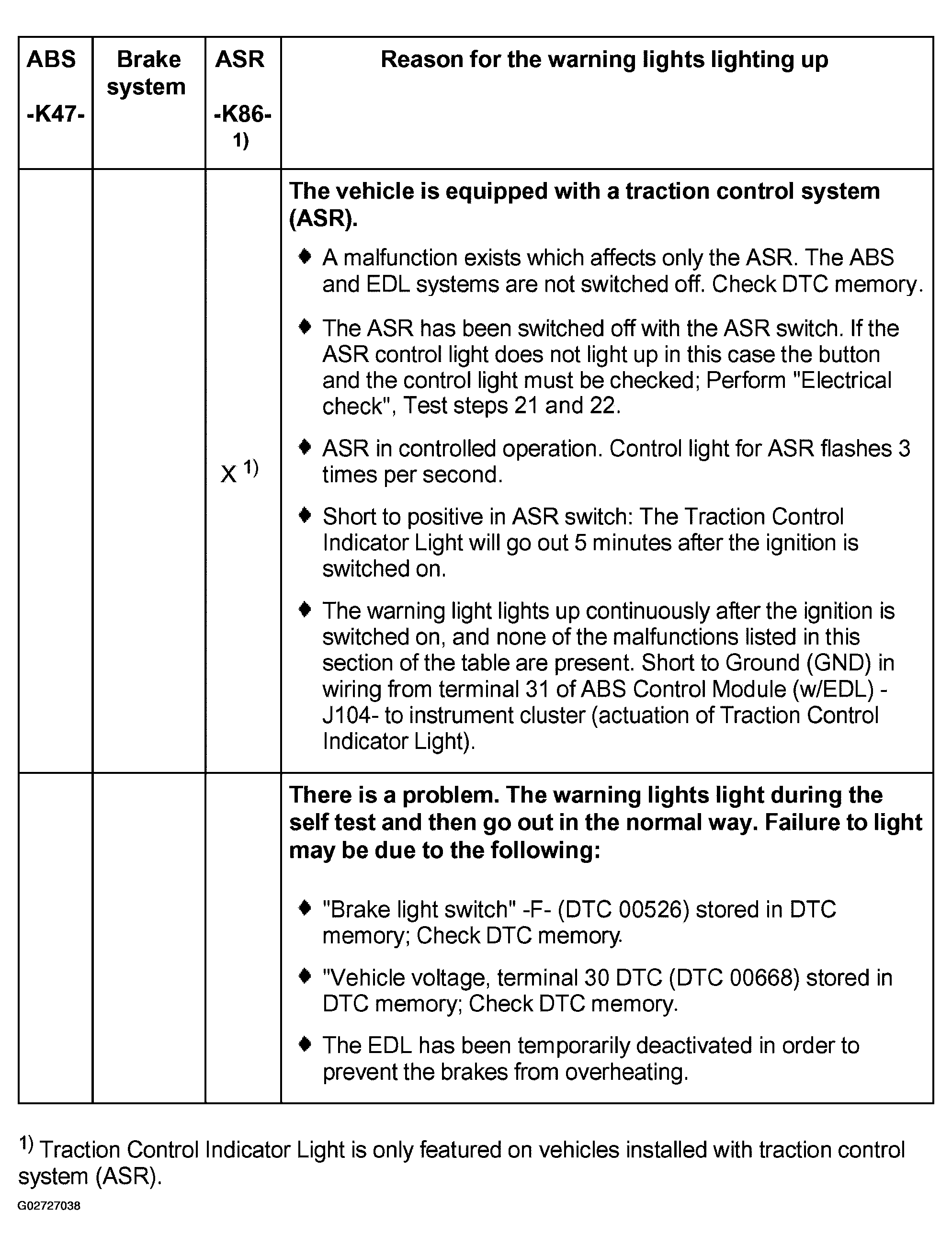

Fig 3: ABS & ASR Warning Light Diagnostic Chart (1 Of 4) - Bosch 5.0

Courtesy of AUDI OF AMERICA, INC.

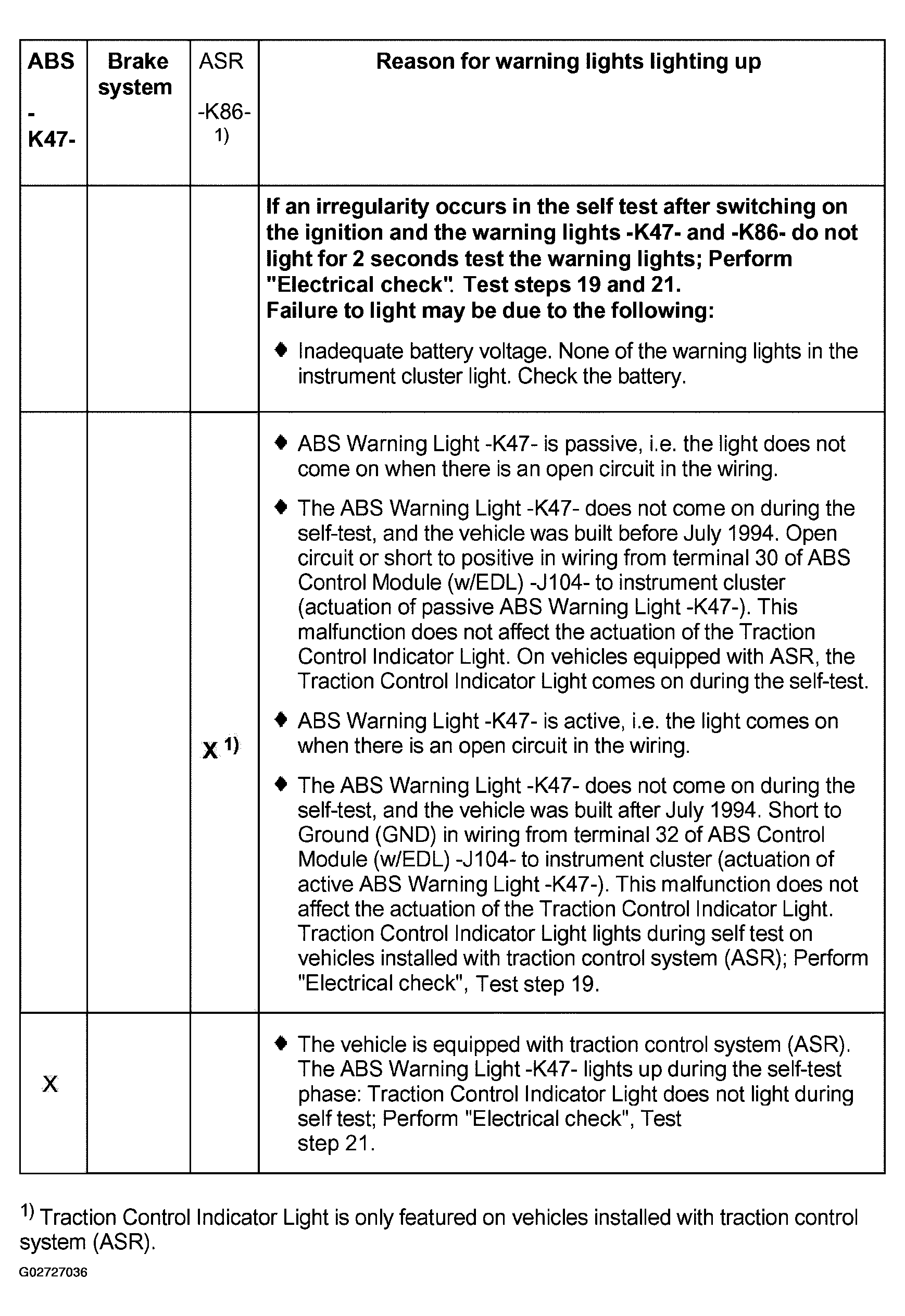

Fig 4: ABS & ASR Warning Light Diagnostic Chart (2 Of 4) - Bosch 5.0

Courtesy of AUDI OF AMERICA, INC.

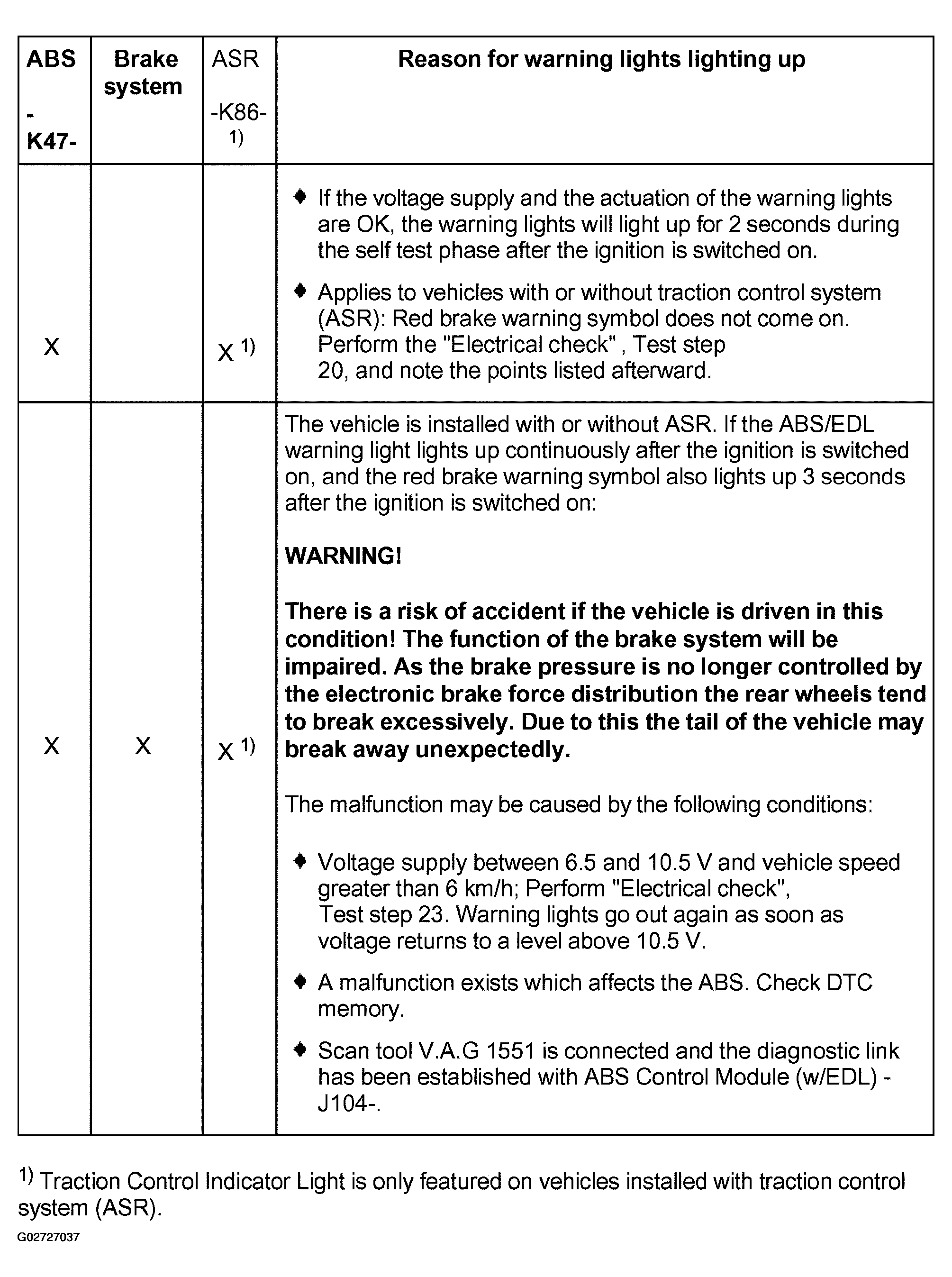

Fig 5: ABS & ASR Warning Light Diagnostic Chart (3 Of 4) - Bosch 5.0

Courtesy of AUDI OF AMERICA, INC.

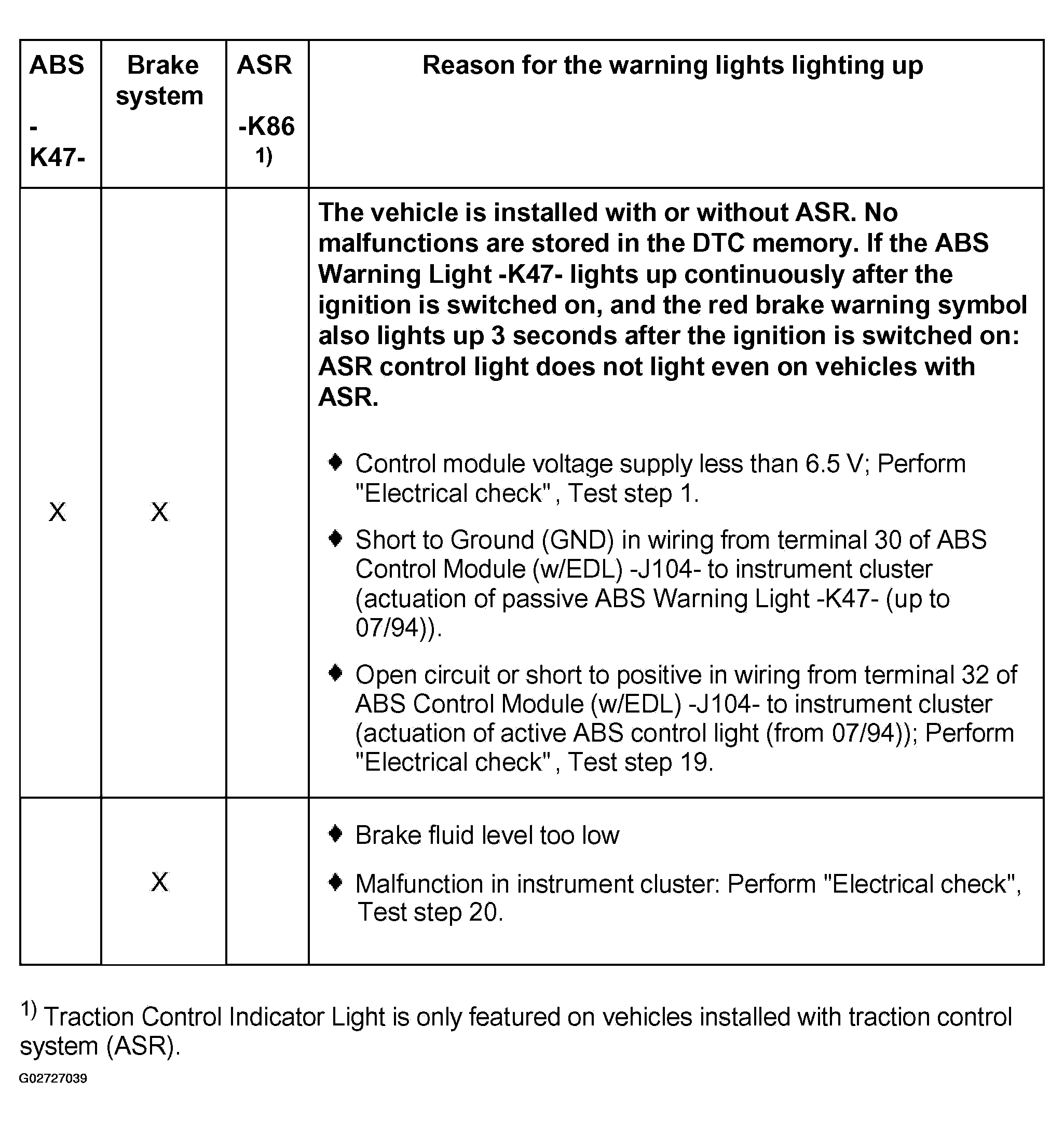

Fig 6: ABS & ASR Warning Light Diagnostic Chart (4 Of 4) - Bosch 5.0

Courtesy of AUDI OF AMERICA, INC.

• For Electrical check, see ELECTRICAL TESTING  .
• For DTC Memory, see CHECK DTC MEMORY  .
