Upper air outlet in right (left) of instrument panel, removing and installing
Upper air outlet in right (left) of instrument panel, removing and installing
Remove lower air outlet in right or left of instrument panel.
Loosen screw -A-.
Pull the outlet out of the instrument panel.

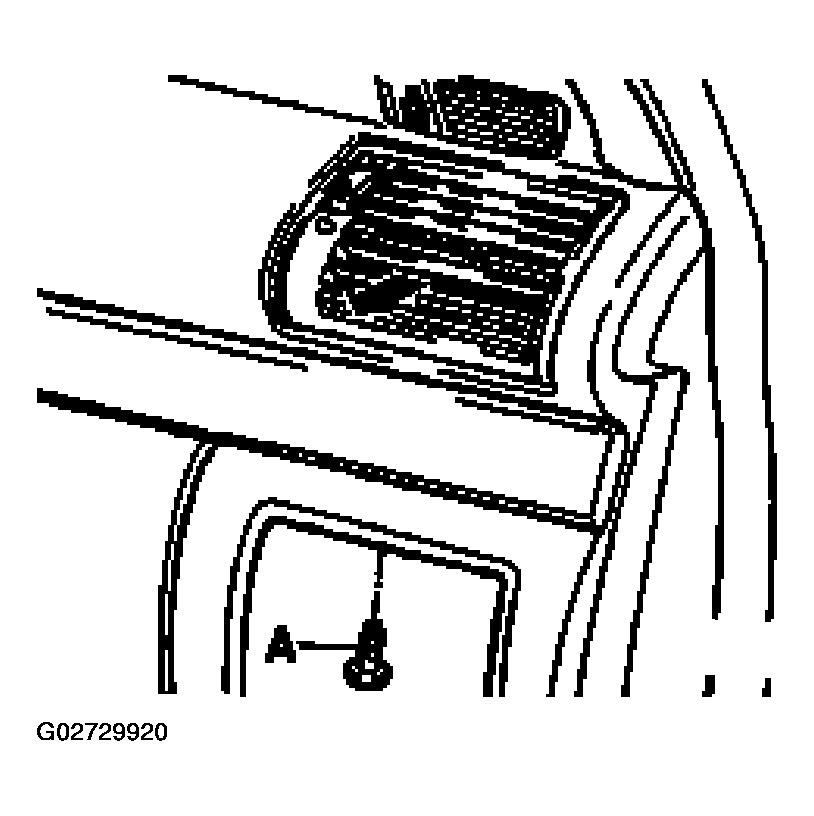

Fig 1: Removing Upper Air Outlet In Right Of Instrument Panel
Courtesy of AUDI OF AMERICA, INC.
