Measuring value block table

WARNING: This page is about a different car, the 1999 Audi A8, 1998 Audi A8, and 1997 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

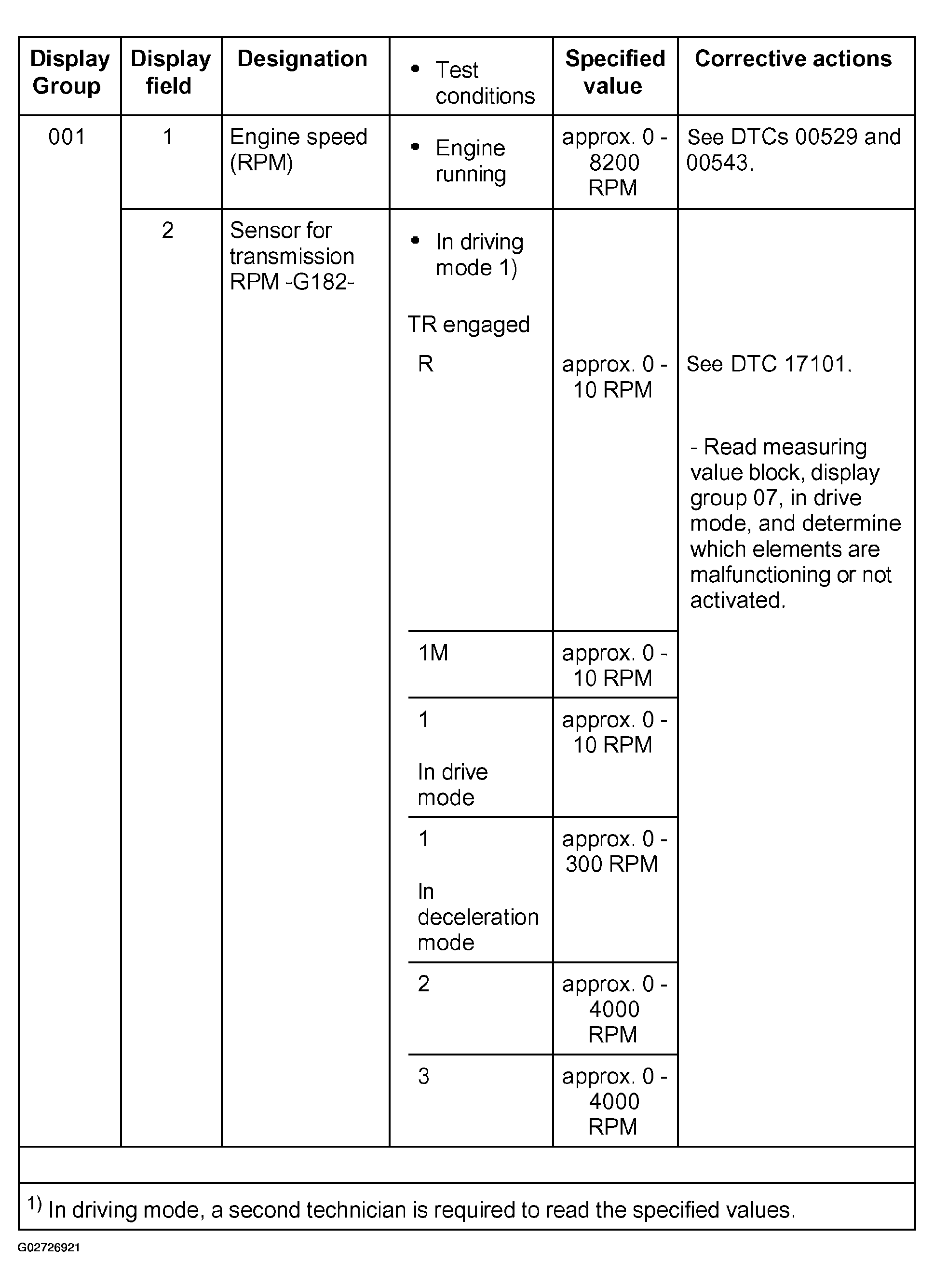

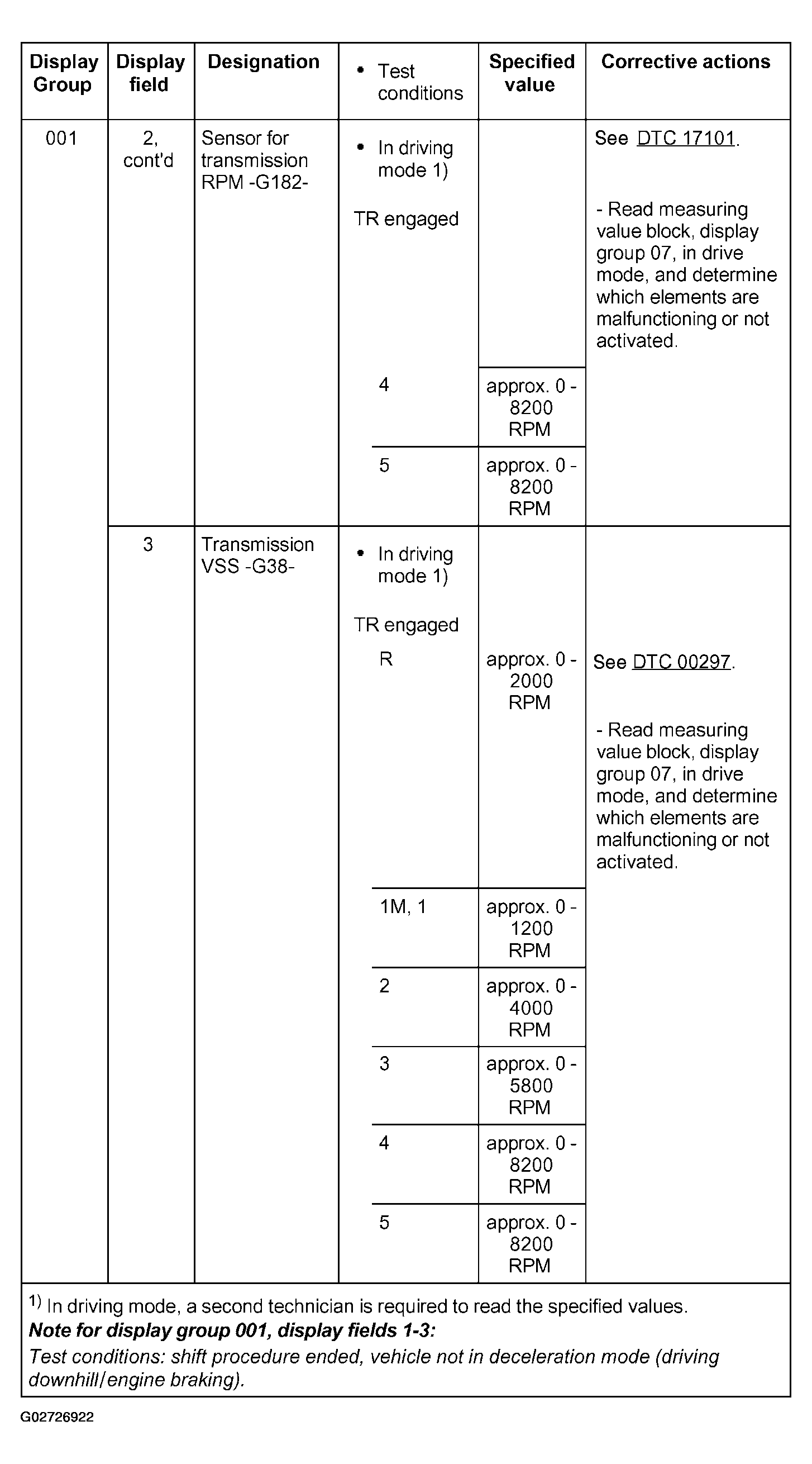

Fig 1: Measuring Value Block Chart (Display Group 001 - Display Fields 1 & 2)

For more DTC information, see DTC TABLE .

Fig 2: Measuring Value Block Chart (Display Group 001 - Display Fields 2 & 3)

For more DTC information, see DTC TABLE .

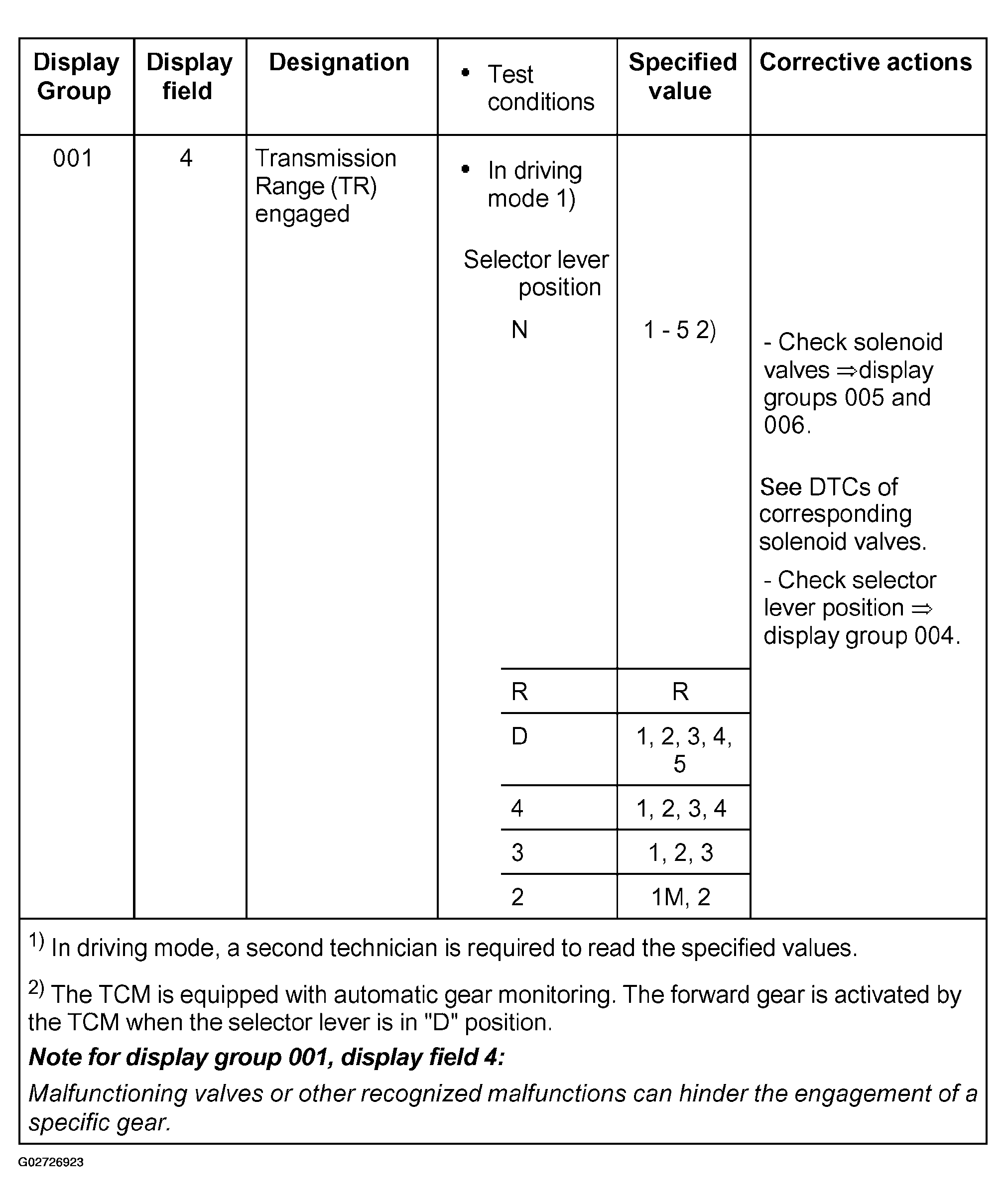

Fig 3: Measuring Value Block Chart (Display Group 001 - Display Field 4)

For more DTC information, see DTC TABLE .

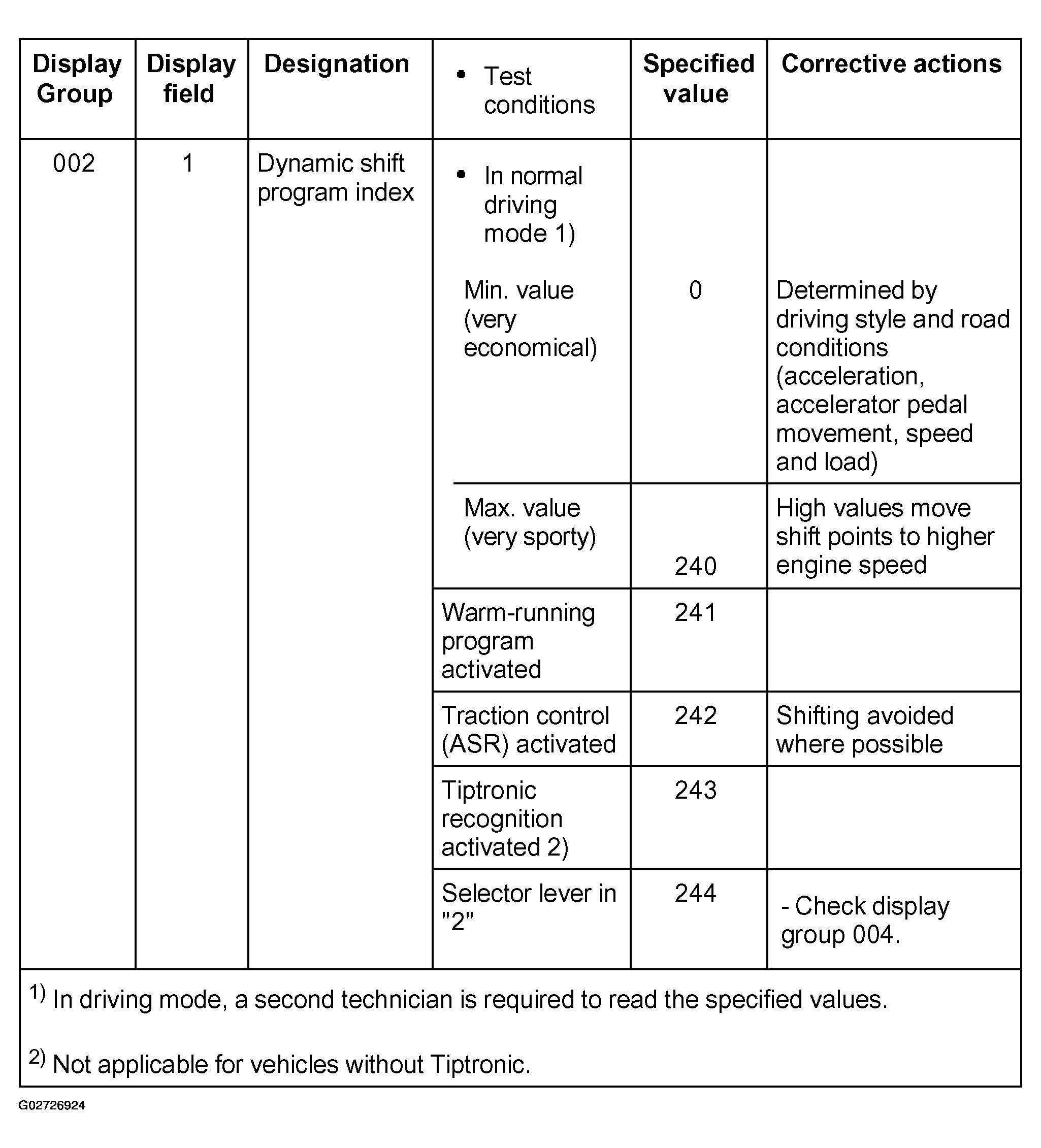

Fig 4: Measuring Value Block Chart (Display Group 002 - Display Field 1)

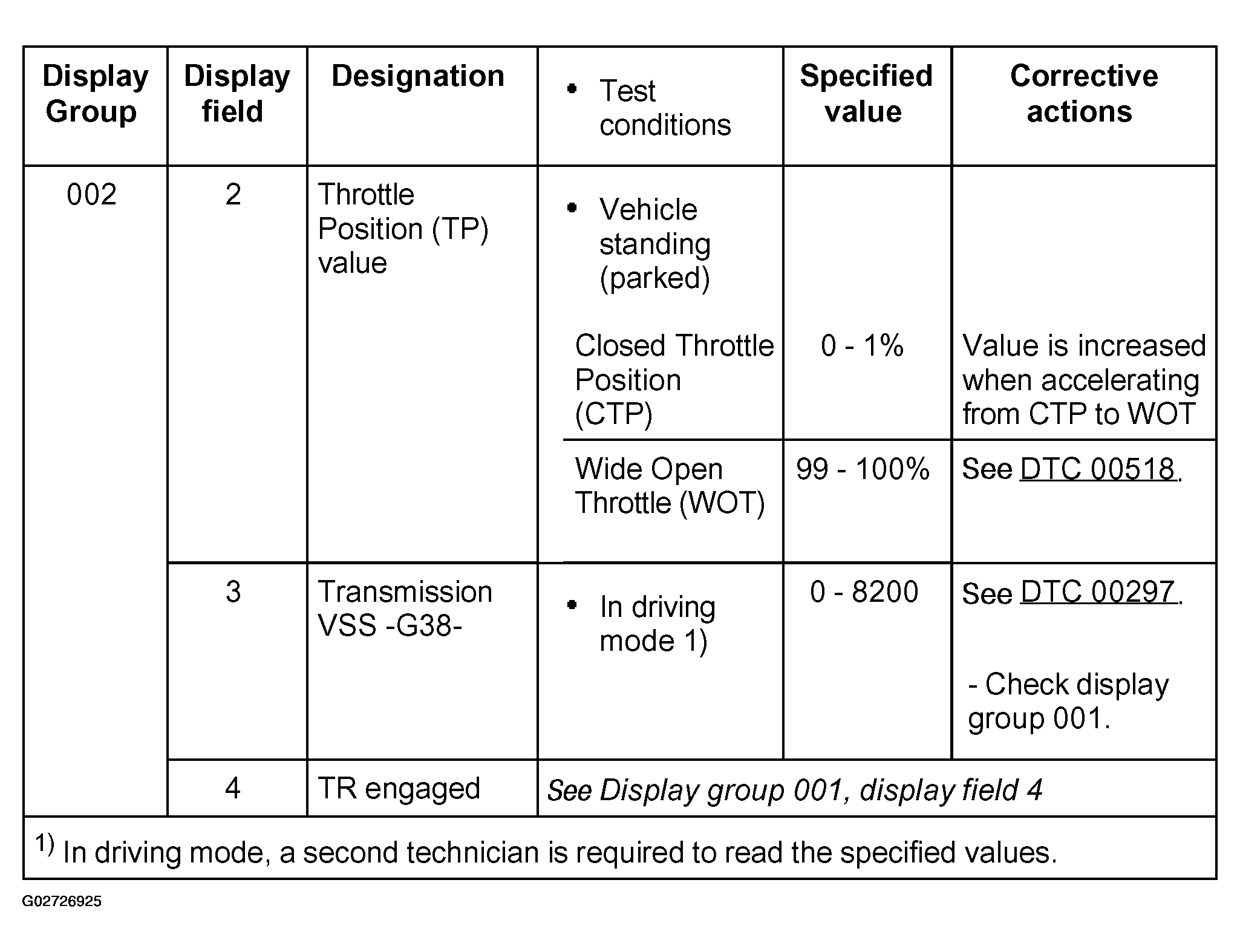

Fig 5: Measuring Value Block Chart (Display Group 002 - Display Fields 2, 3 And 4)

For more DTC information, see DTC TABLE .

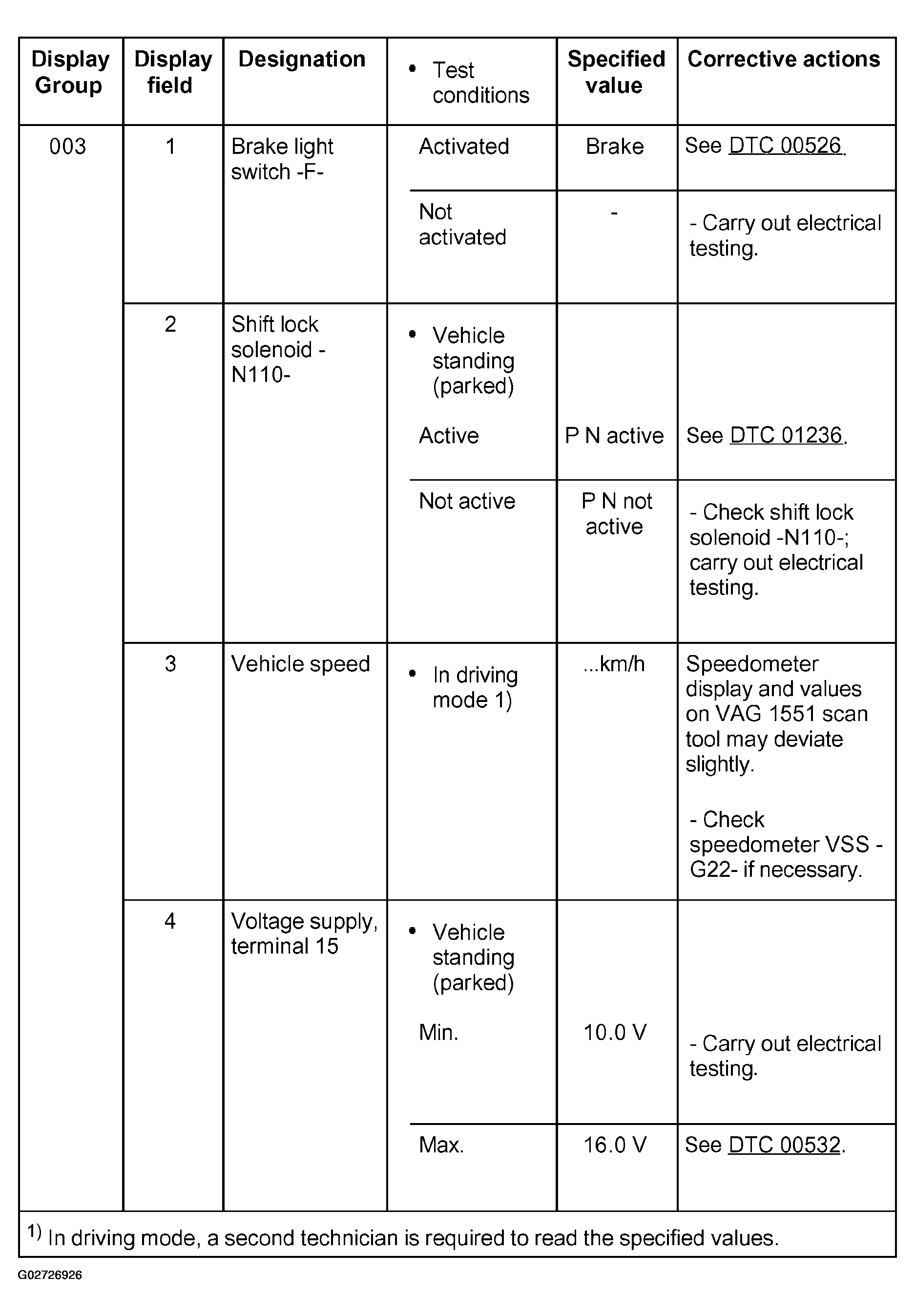

Fig 6: Measuring Value Block Chart (Display Group 003 - Display Fields 1 To 4)

For more DTC information, see DTC TABLE .
For electrical testing, see ELECTRICAL TESTING .

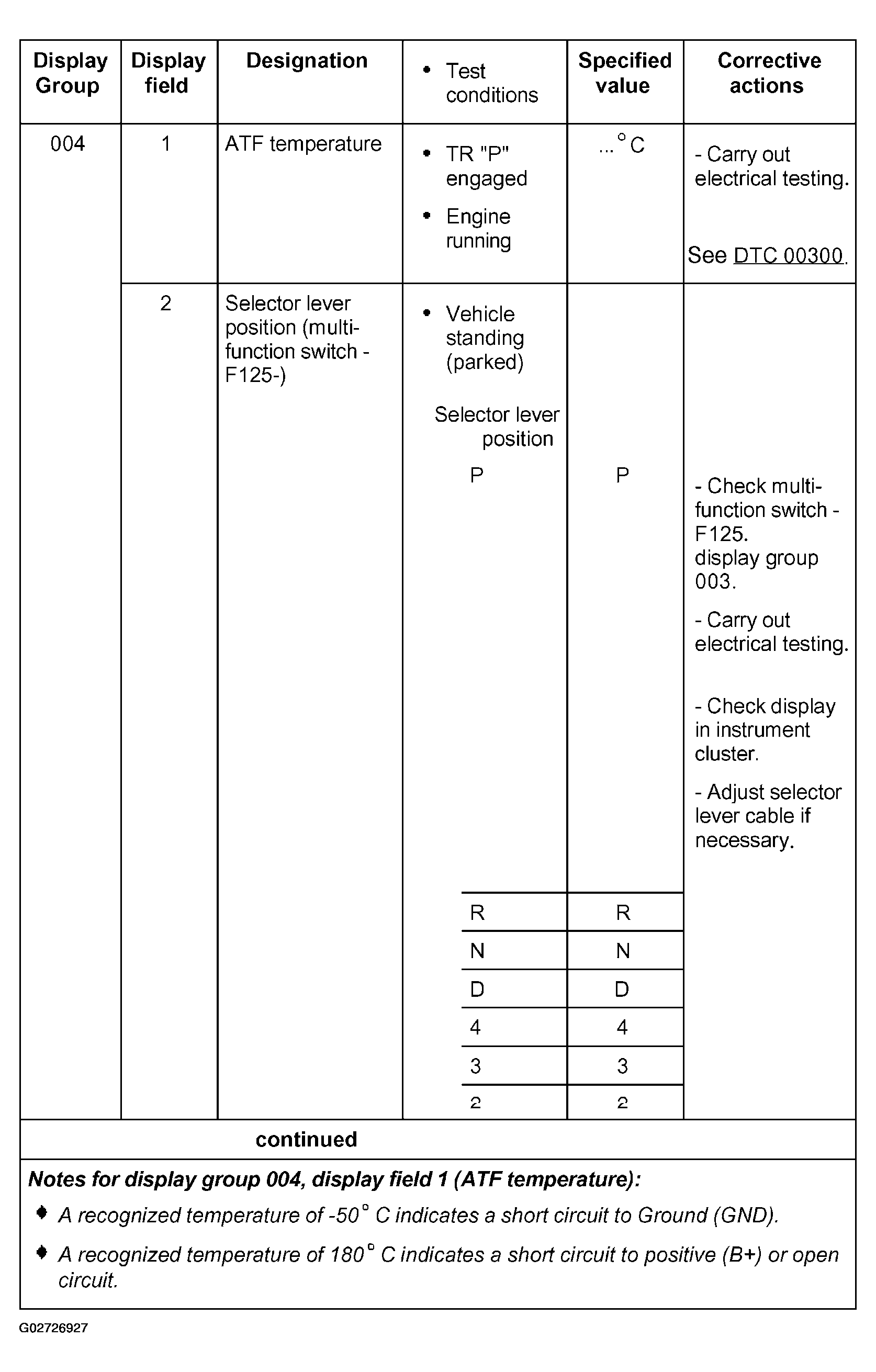

Fig 7: Measuring Value Block Chart (Display Group 004 - Display Fields 1 And 2)

For more DTC information, see DTC TABLE
For electrical testing, see ELECTRICAL TESTING
For selector lever cable adjustment, see SELECTOR LEVER CABLE .

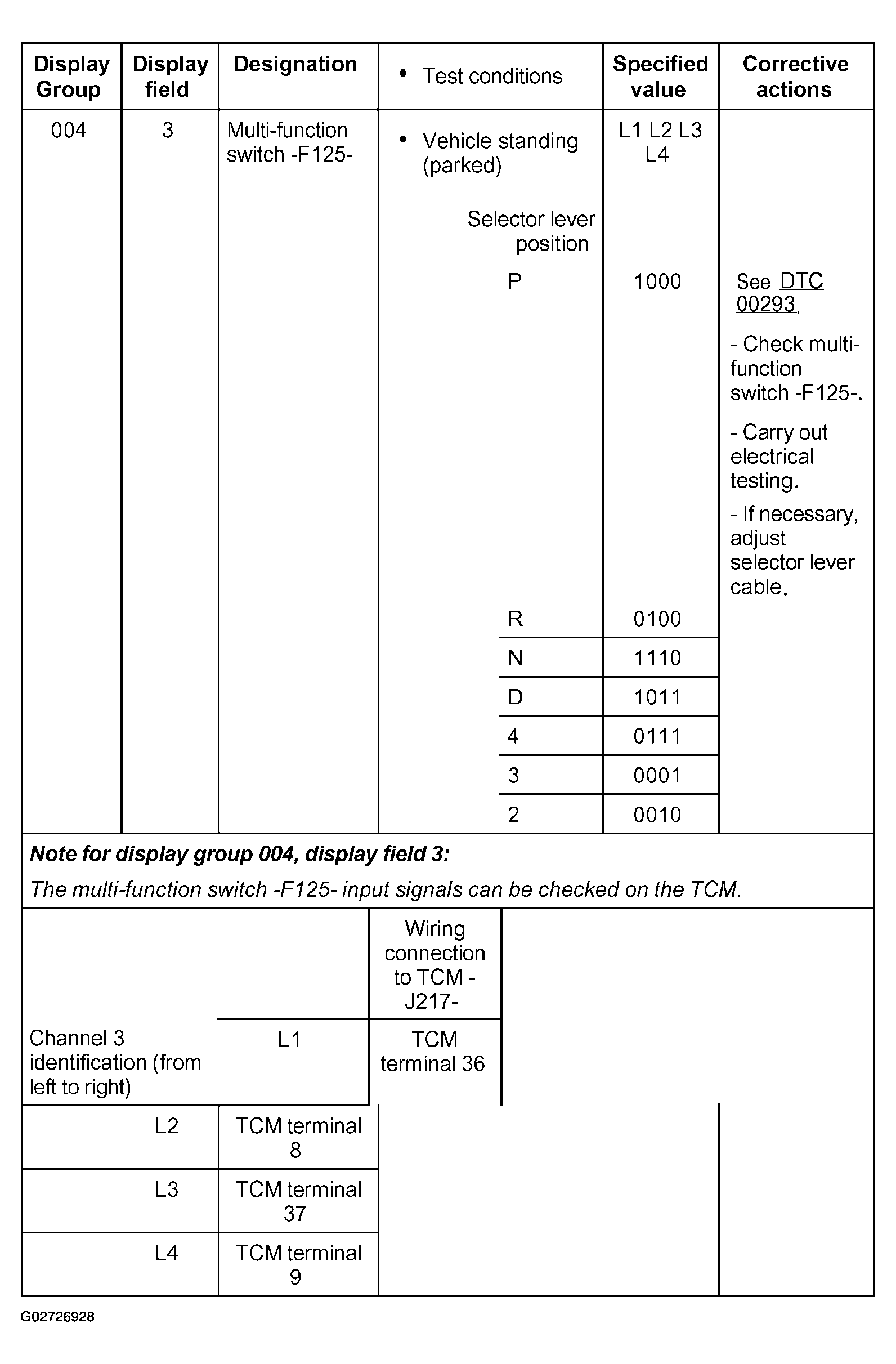

Fig 8: Measuring Value Block Chart (Display Group 004 - Display Field 3)

For more DTC information, see DTC TABLE .
For electrical testing, see ELECTRICAL TESTING .
For selector lever cable adjustment, see SELECTOR LEVER CABLE .

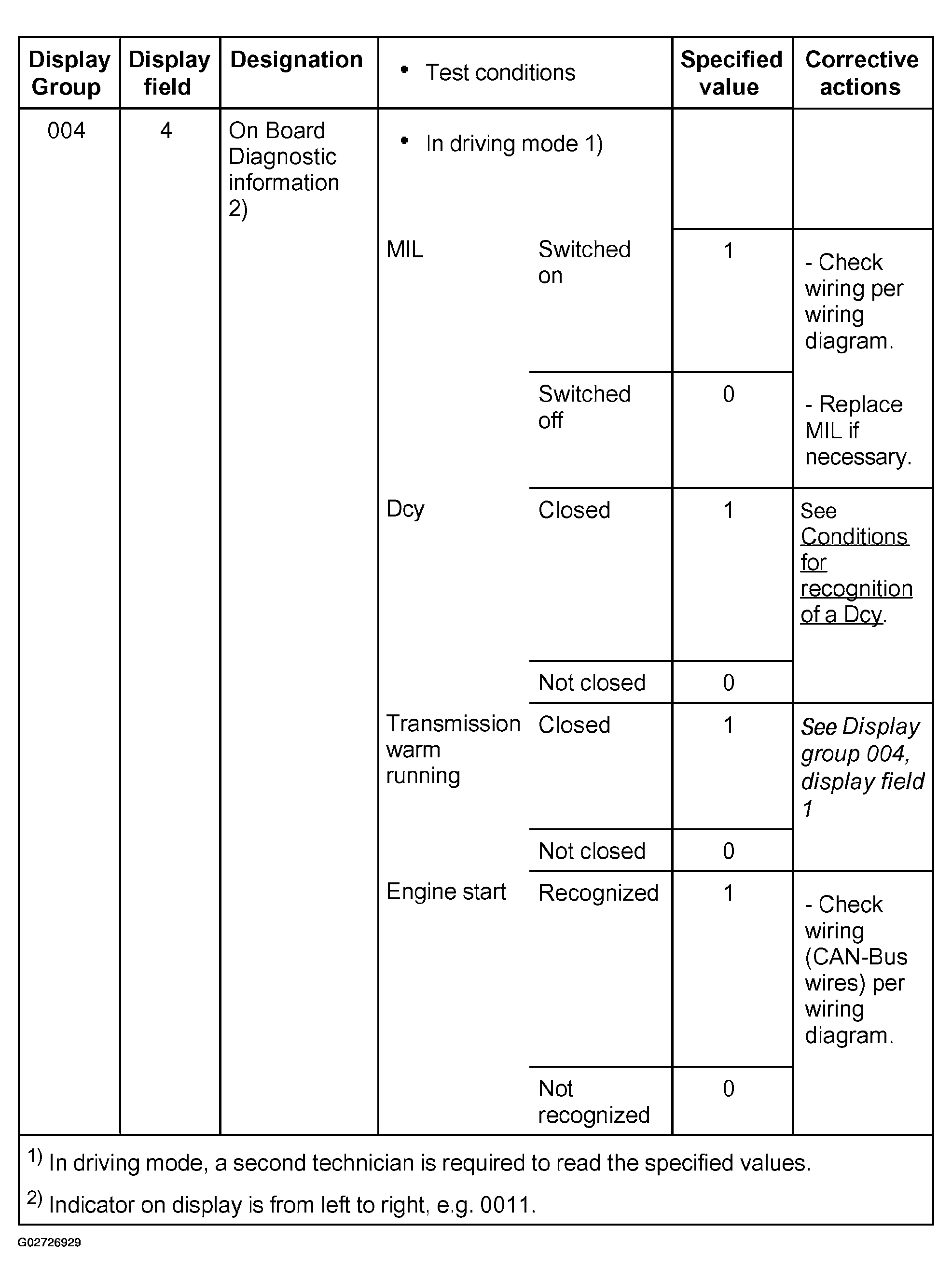

Fig 9: Measuring Value Block Chart (Display Group 004 - Display Field 4)

For "conditions for recognition of a Dcy", see MIL FUNCTIONAL CHECK .

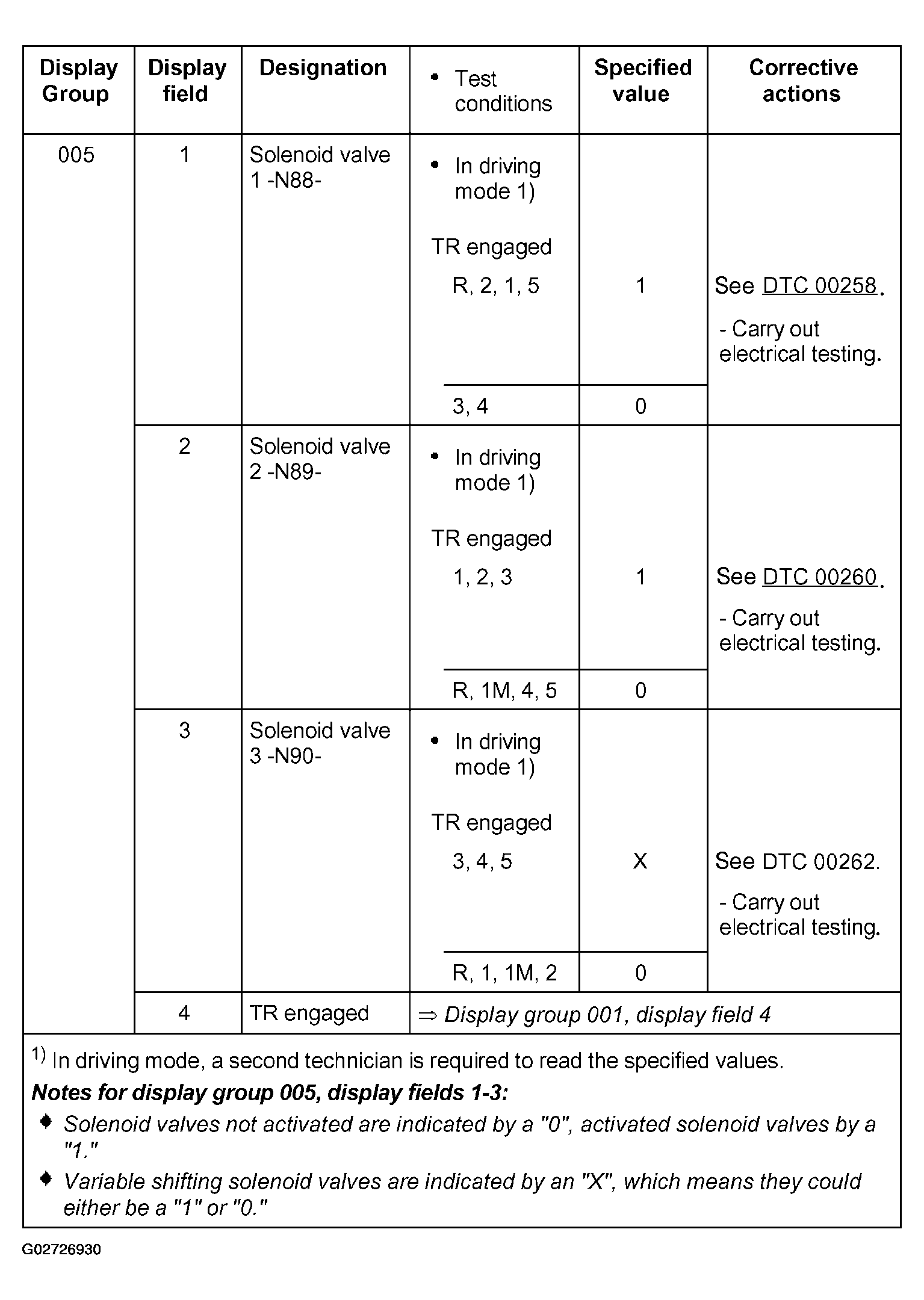

Fig 10: Measuring Value Block Chart (Display Group 005 - Display Fields 1, 2 And 3)

For more DTC information, see DTC TABLE
For electrical testing, see ELECTRICAL TESTING .

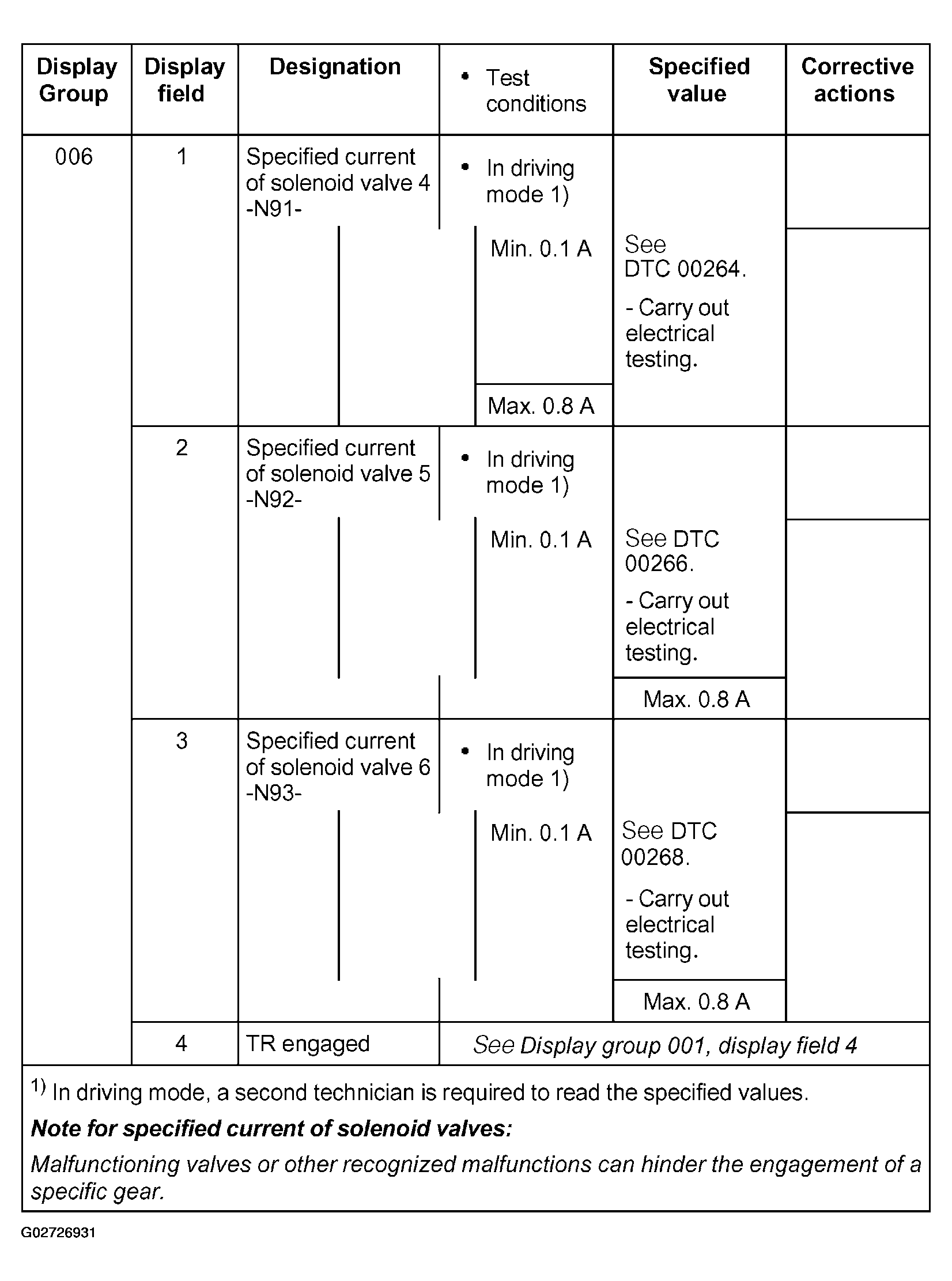

Fig 11: Measuring Value Block Chart (Display Group 006 - Display Fields 1 To 4)

For more DTC information, see DTC TABLE .
For electrical testing, see ELECTRICAL TESTING .

Fig 12: Measuring Value Block Chart (Display Group 007 - Display Fields 1, 2 And 3)

For more DTC information, see DTC TABLE .
For electrical testing, see ELECTRICAL TESTING .

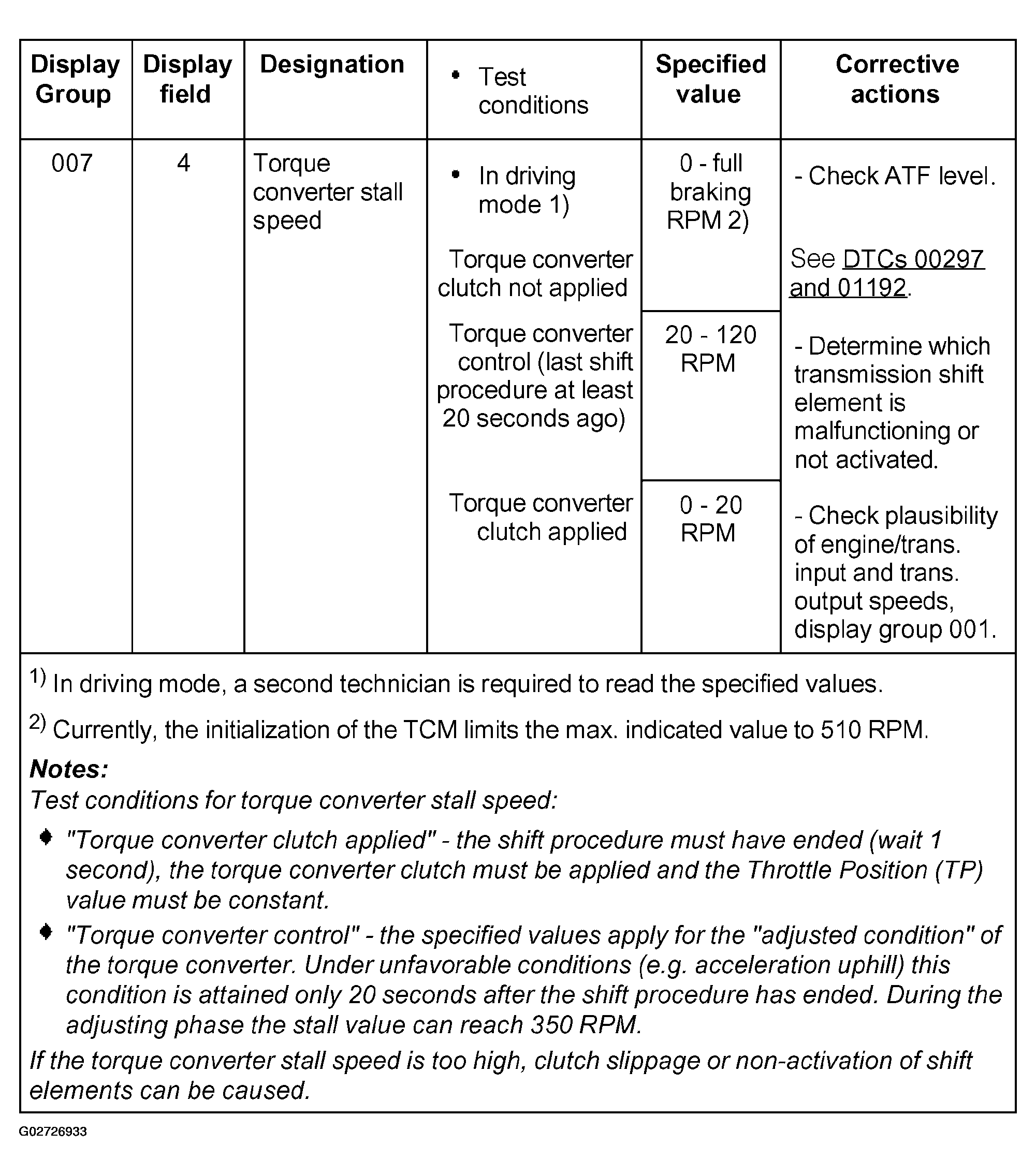

Fig 13: Measuring Value Block Chart (Display Group 007 - Display Field 4)

For more DTC information, see DTC TABLE
To check ATF levels, see CHECKING FLUID LEVELS .
To check transmission shift element, see SHIFT ELEMENT POSITIONS .

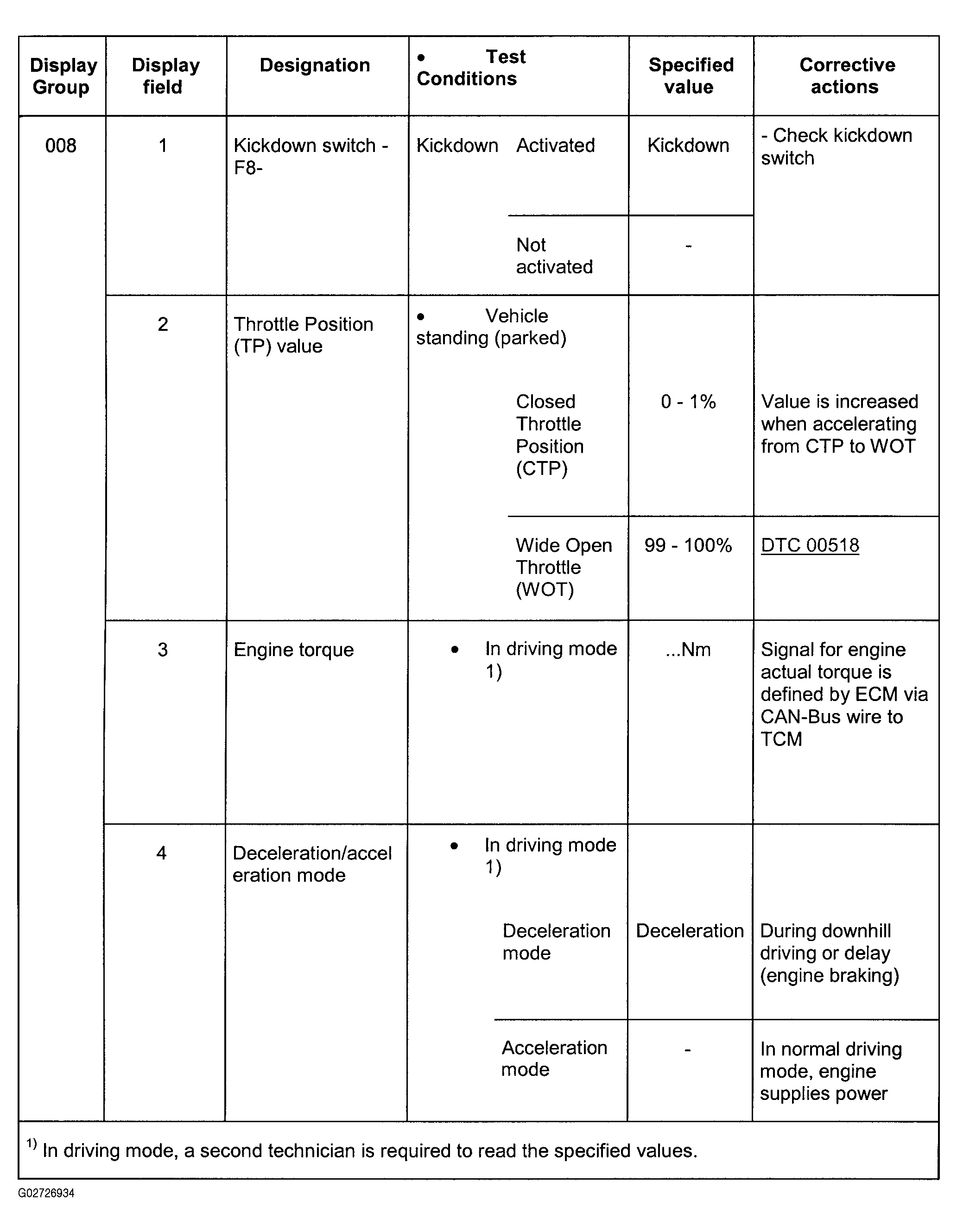

Fig 14: Measuring Value Block Chart (Display Group 008 - Display Fields 1 To 4)

For more DTC information, see DTC TABLE .
For electrical testing, see ELECTRICAL TESTING .

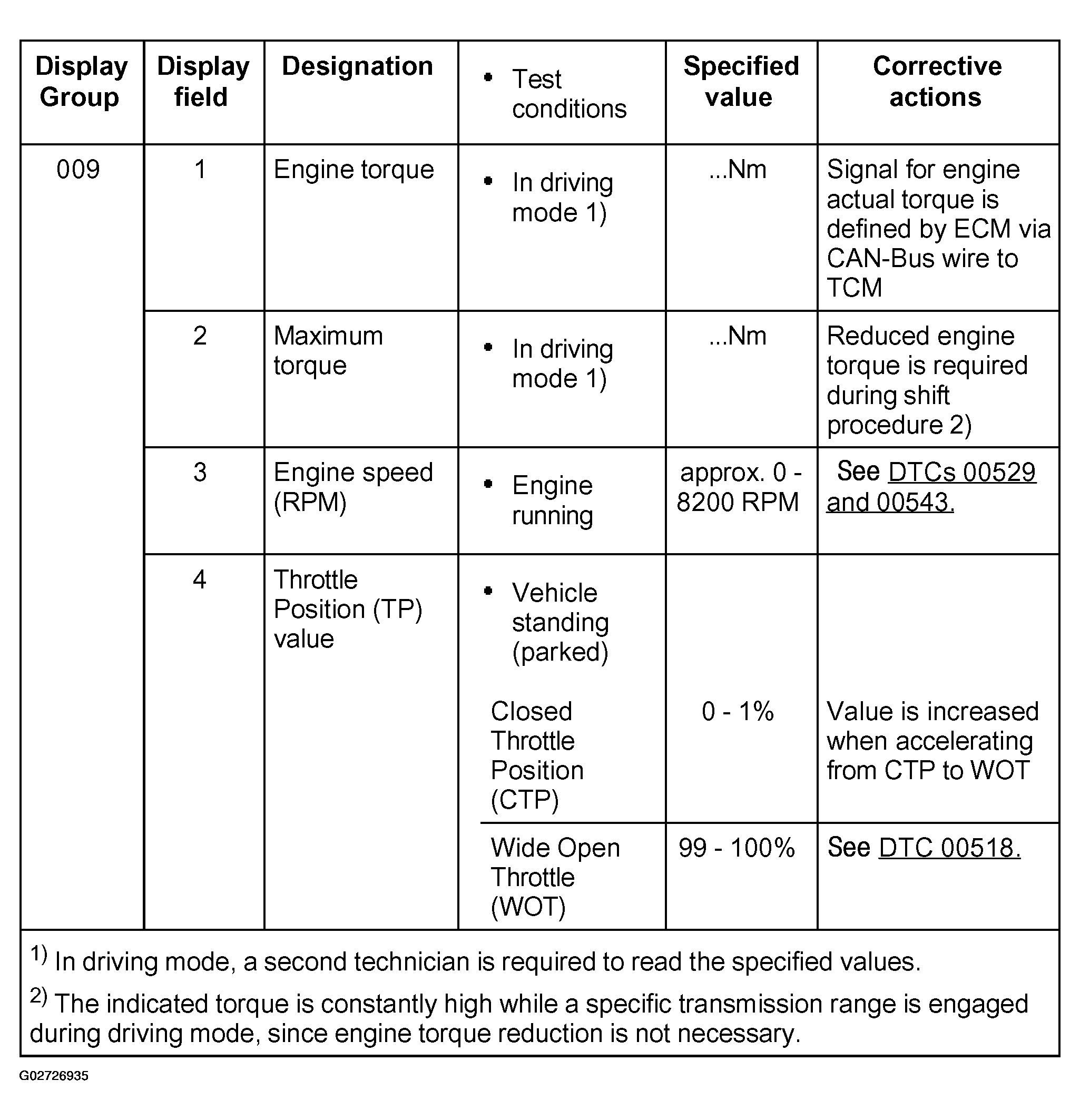

Fig 15: Measuring Value Block Chart (Display Group 009 - Display Fields 1 To 4)

For more DTC information, see DTC TABLE .

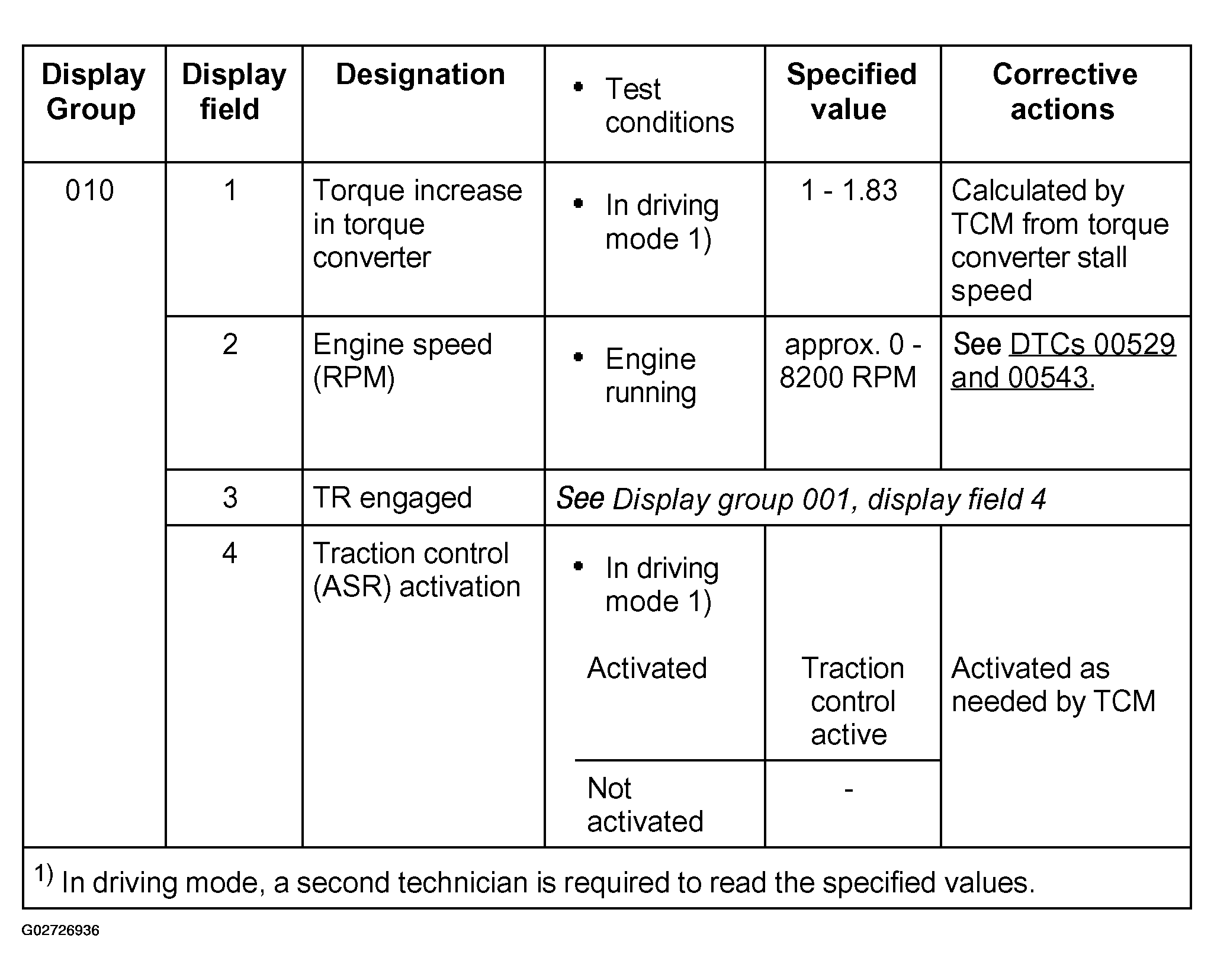

Fig 16: Measuring Value Block Chart (Display Group 010 - Display Fields 1 To 4)

For more DTC information, see DTC TABLE .

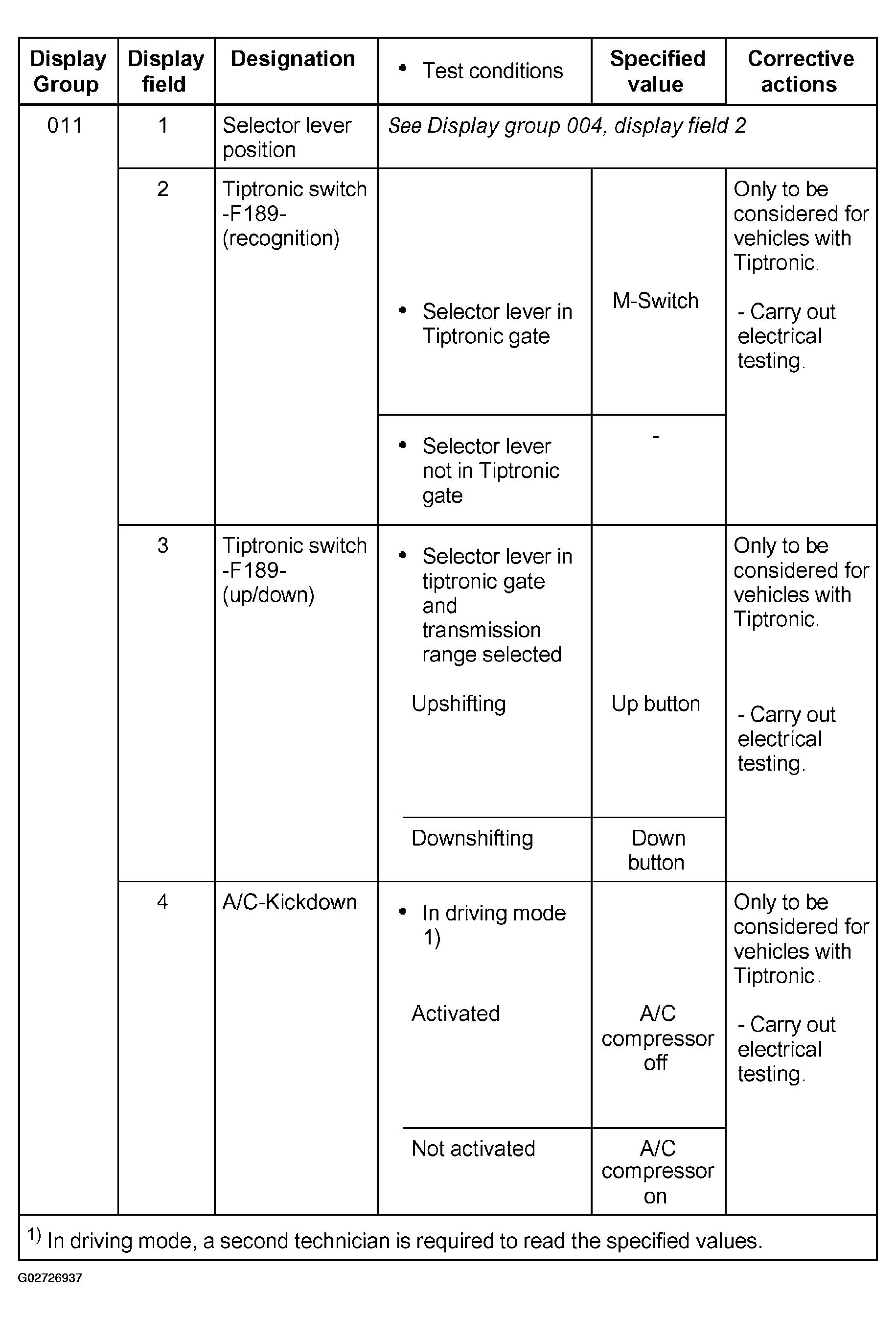

Fig 17: Measuring Value Block Chart (Display Group 011 - Display Fields 1 To 4)

For electrical testing, see ELECTRICAL TESTING
