Right-side fuel level sensor: Removing

WARNING: This page is about a different car, the 1999 Audi A8, 1998 Audi A8, and 1997 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Remove cover for fuel level sensor and fuel pump, located on right side under luggage compartment trim.
Wire and connectors may remain connected.

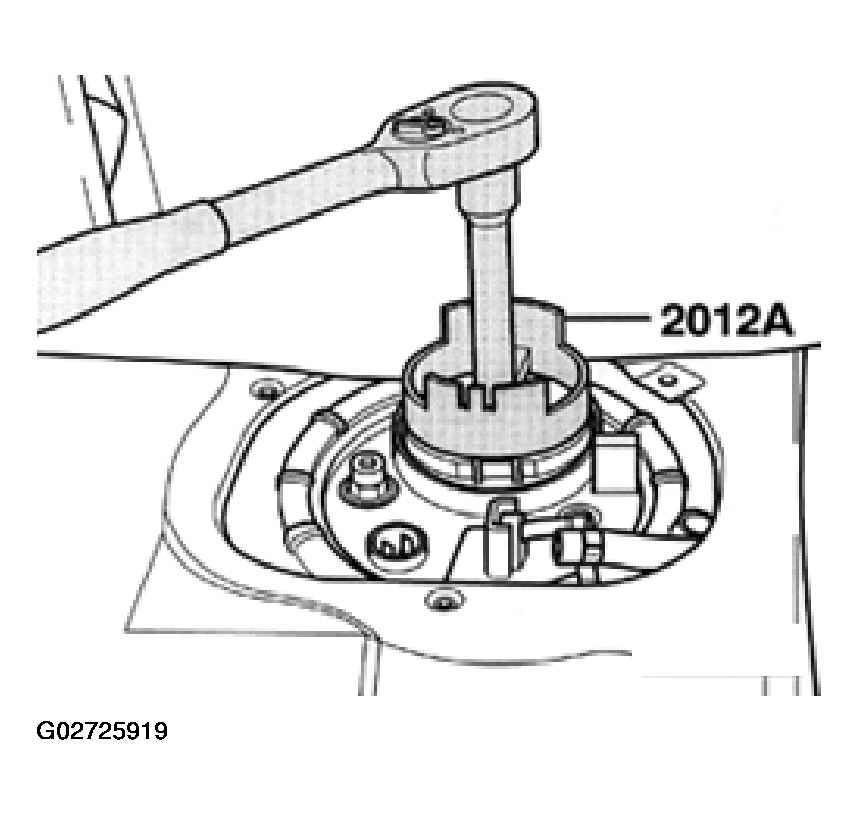

Using special tool 2012A, open cover by turning clockwise, then remove compression spring below.

Fig 1: Opening Cover Using Special Tool 2012A

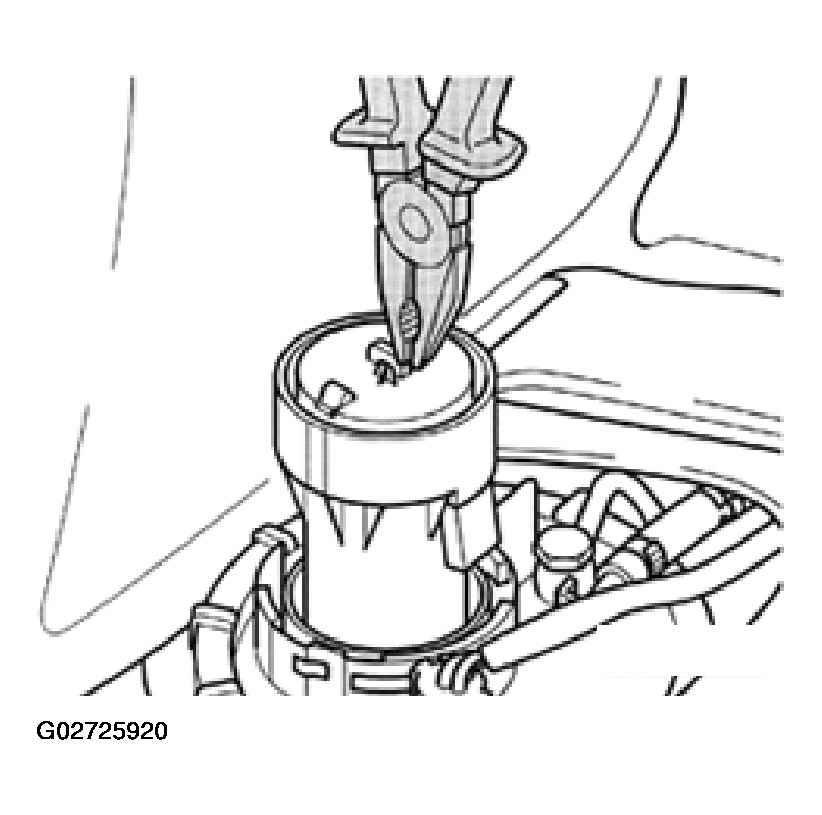

Using pliers, carefully lift sensor and disconnect electrical harness connector.
Remove fuel level sensor.

Fig 2: Lifting Sensor And Disconnecting Electrical Harness Connector Using Plier

NOTE: When removing and installing the sensor, make sure that the wiring is not damaged.
