Fuel expansion tank, removing and installing
WARNING: This page is about a different car, the 1999 Audi A8, 1998 Audi A8, and 1997 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
See notes about servicing fuel tank, fuel system and fuel supply components. See FUEL SUPPLY COMPONENTS, REMOVING AND INSTALLING
.
NOTE:

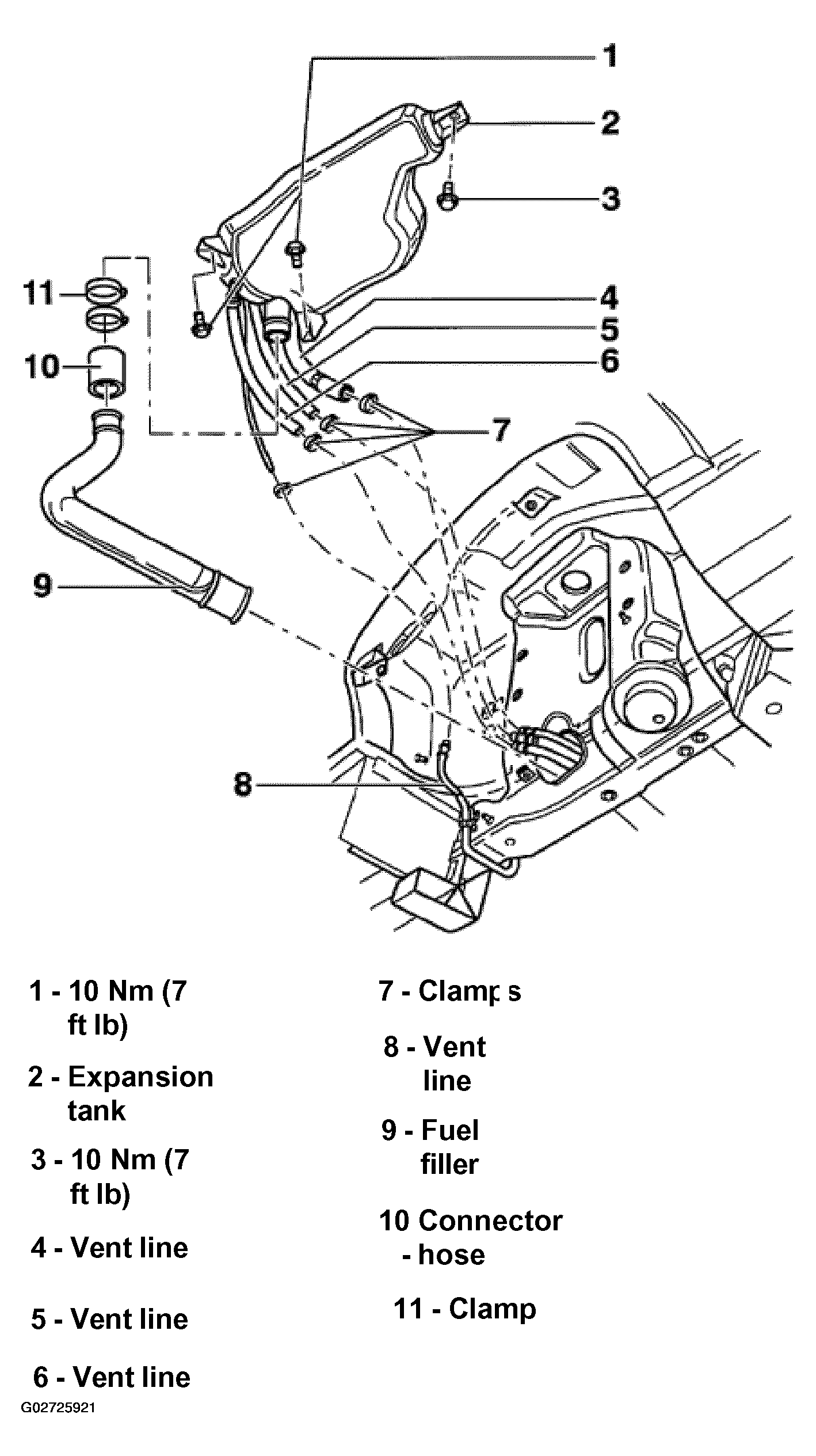

The following list refers to items in Fig 1
.
- 10 Nm (7 ft lb)
- Expansion tank
- 10 Nm (7 ft lb)
- Vent line
- From fuel tank
- White identification
- Vent line
- From fuel tank
- Vent line
- From fuel tank
- Clamps
- Vent line
- To Evaporative Emissions (EVAP) canister
- Fuel filler
- Connector hose
- Clamp
