Connecting remote control VAG 1348/3A with adapter cable VAG 1348/3-2

WARNING: This page is about a different car, the 1999 Audi A8, 1998 Audi A8, and 1997 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect fuel pump relay from relay panel (position 6).

Fig 1: Locating Fuel Pump Relay In Relay Panel (Position 6)
Connect lead of adapter cable into socket 52.

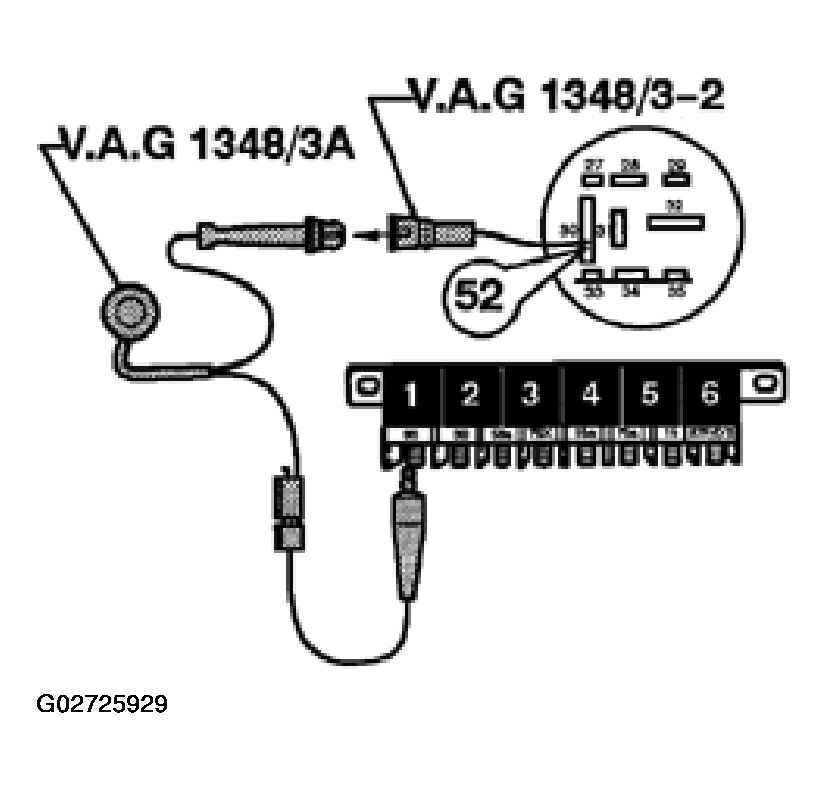

Fig 2: Connecting Lead Of Adapter Cable Into Socket 52
Connect clip from remote control to terminal 30, located under relay position 1.

NOTE:

The fuel pump relay is located on the relay panel in the passenger-side footwell.

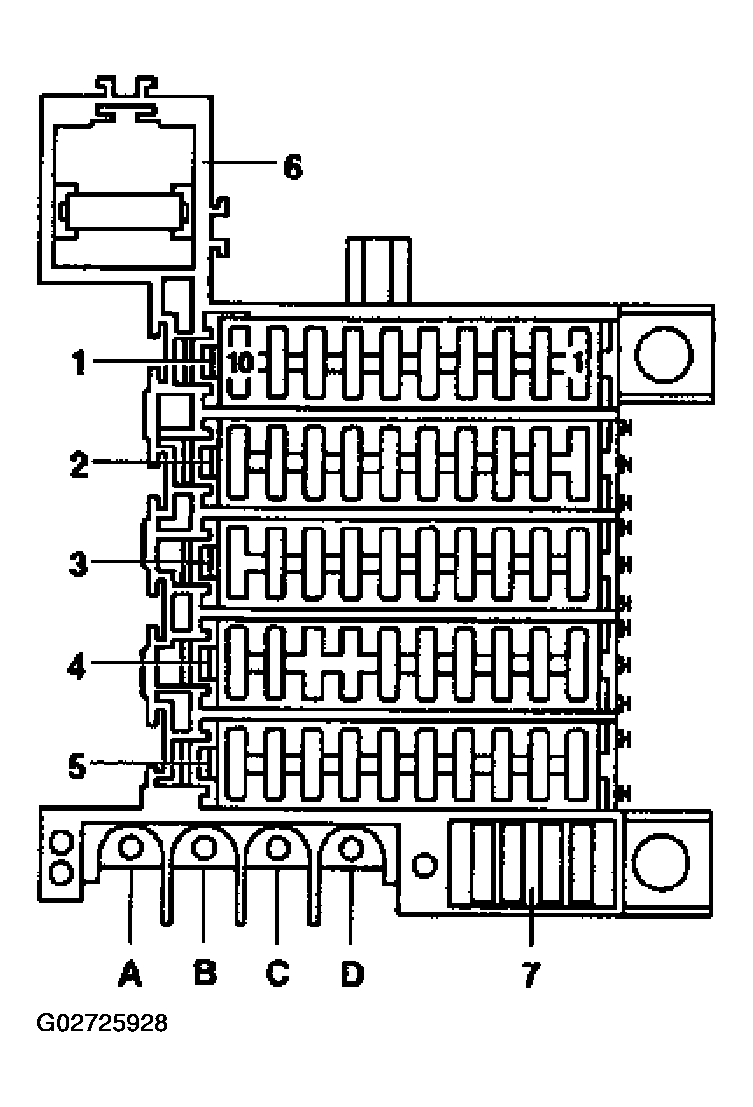

The fuse panel is located on the right-side A-pillar-fuse 1 in fuse holder 4.
