Fuel pump delivery rate, checking: Checking
WARNING: This page is about a different car, the 1999 Audi A8, 1998 Audi A8, and 1997 Audi A8. However, it is still accessible from the selected car via links, so may be relevant.
- Connect remote control. See FUEL PUMP, CHECKING .
- Remove return line at fuel pressure regulator.

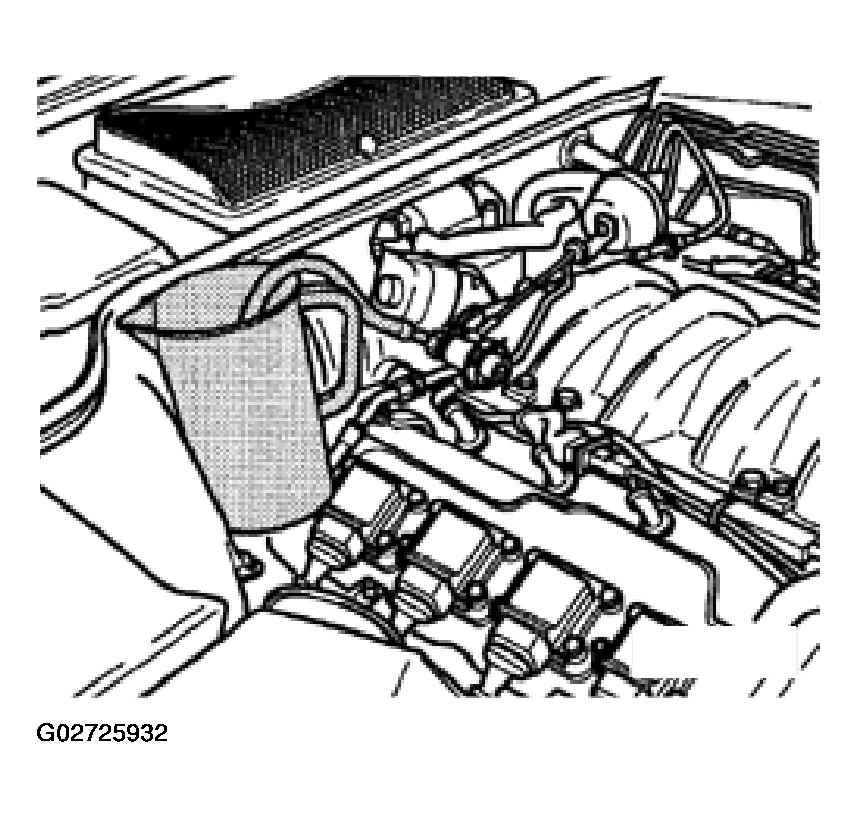

- Attach auxiliary hose, Part No. 8A0 201 351, to fuel pressure regulator and hold opposite end in measuring beaker.
- Actuate remote control to operate fuel pump continuously for 15 seconds.
- Compare fuel delivery rate to specified values in FUEL DELIVERY RATE SPECIFICATIONS table.
FUEL DELIVERY RATE SPECIFICATIONS
| Voltage at fuel pump | Rate |
|---|---|
| 12 volts | 460 cc (ml)in 15 sec. |
| 13 volts | 540 cc (ml) in 15 sec. |
NOTE:
After each test, approx. 3 liters (3/4 gal.) of fuel must be added to the fuel tank through the fuel filler.
