Viscous fan, removing and installing: Removing:
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.
- Remove intake air duct for air cleaner.
- Remove front bumper
See FRONT BUMPER .
- Adjust lock carrier to service position. See LOCK CARRIER, SERVICE POSITION .

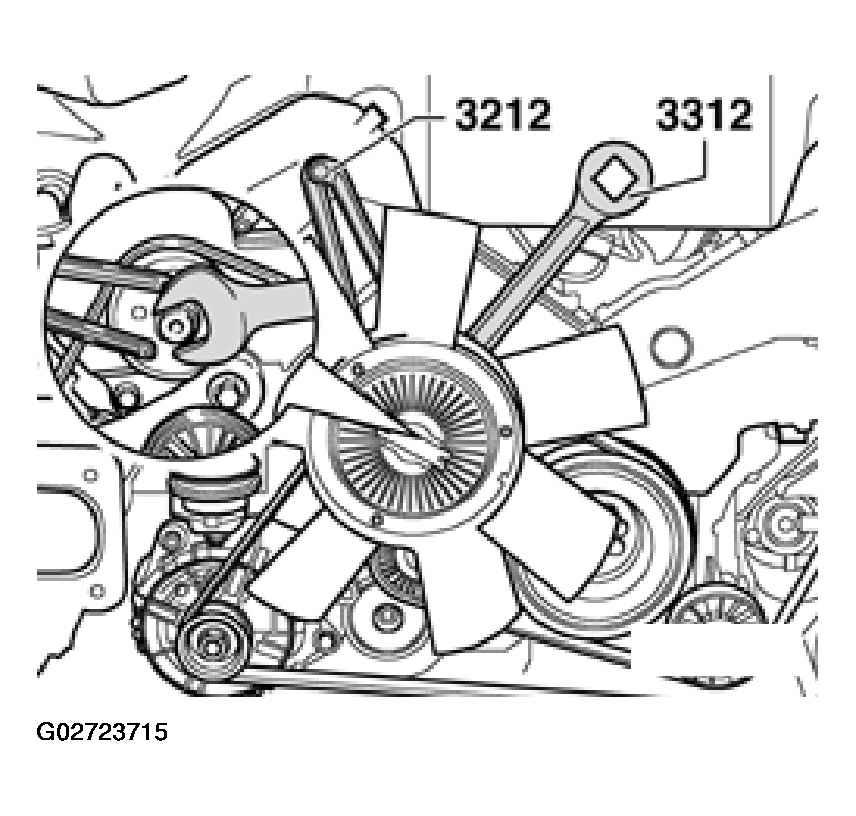

- Counter-hold viscous fan pulley with pin wrench 3212 and unscrew fan with open-end wrench 3312 (FAN HAS LEFT-HAND THREAD).
- Remove viscous fan with outer ring.
