Viscous fan, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Install viscous fan in reverse order of removal but note the following:

Install fan together with outer ring (FAN HAS LEFT-HAND THREAD).

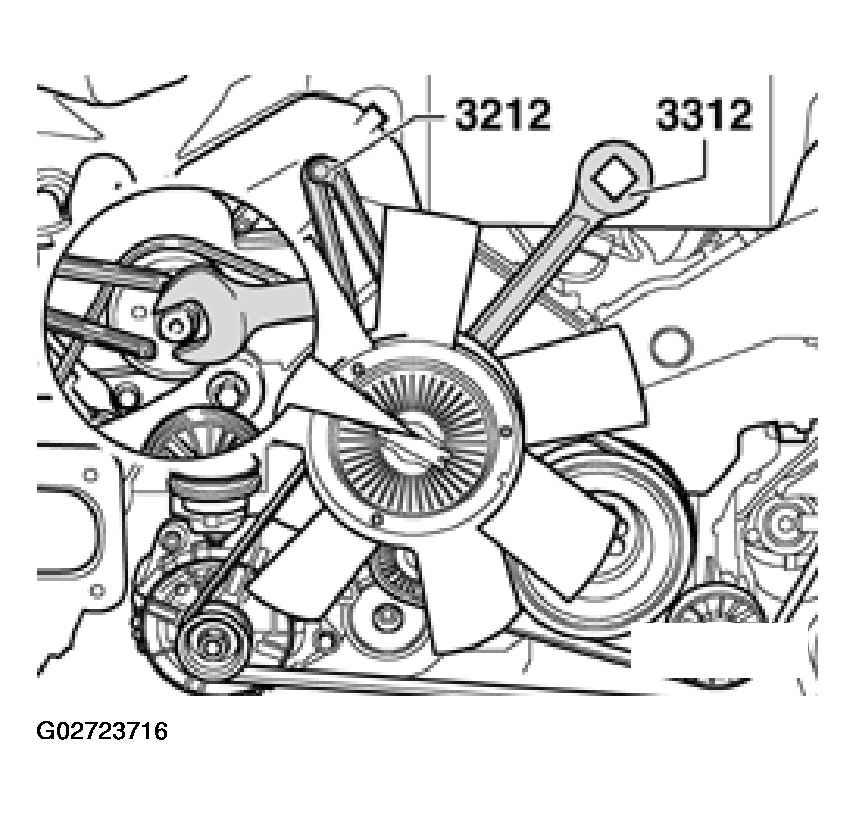

Fig 1: Locating Viscous Fan And Open-End Wrench 3312
Courtesy of AUDI OF AMERICA, INC.
Counter-hold fan pulley with pin wrench 3212 and tighten fan with open-end wrench 3312 and torque wrench 1331 (fan has left-hand thread).
