Oil pressure, checking

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Remove engine cover panel.

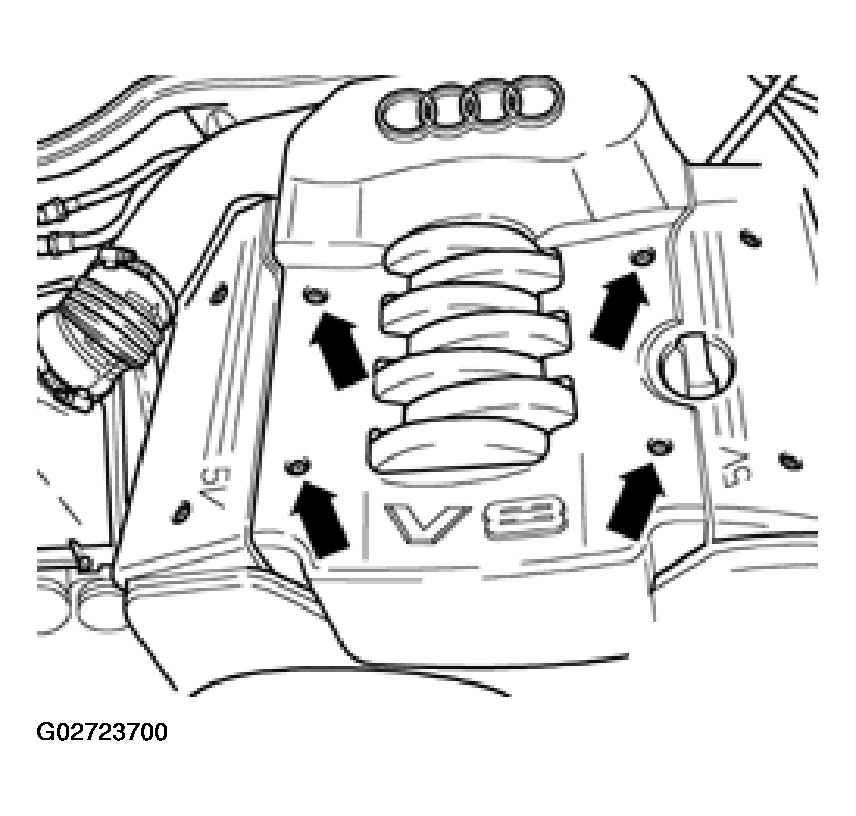

Fig 1: Removing Engine Cover Panel
Courtesy of AUDI OF AMERICA, INC.
Remove upper section of air cleaner and set aside.
Remove lower section of air cleaner.
Remove oil pressure switch and install adapter VAG 1342/3 in its place.
Install VAG 1342 into adapter VAG 1342/3.

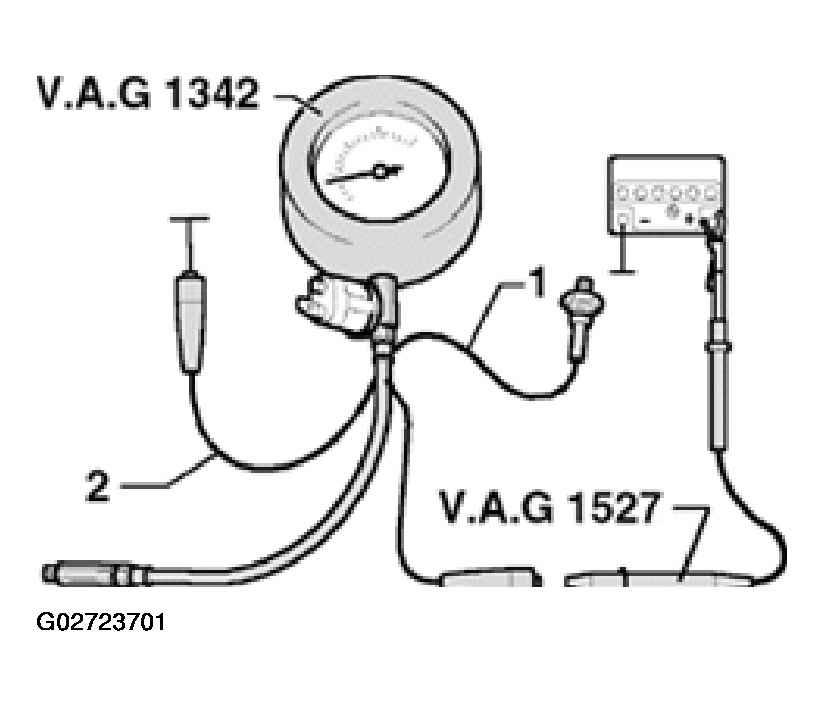

Fig 2: Installing VAG 1342 Into Adapter
Courtesy of AUDI OF AMERICA, INC.
Install oil pressure switch in VAG 1342.
Install lower section of air cleaner.
Install upper section of air cleaner.
Start engine.
Engine oil temperature must be at least 80°C (176°F).

OIL PRESSURE SPECIFICATION

Oil pressure at idling speed	1 to 2.5 bar
Oil pressure at 3000 rpm	3 to 5 bar

NOTE: If the oil pressure is excessively high (for example if pressure relief valve is sticking or has been installed incorrectly) the hydraulic lifters will jam. The engine will cut out soon after starting. When attempting to start the engine again it will be noticed that the engine turns over too quickly due to lack of compression.
