A - Dual-mass flywheel
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

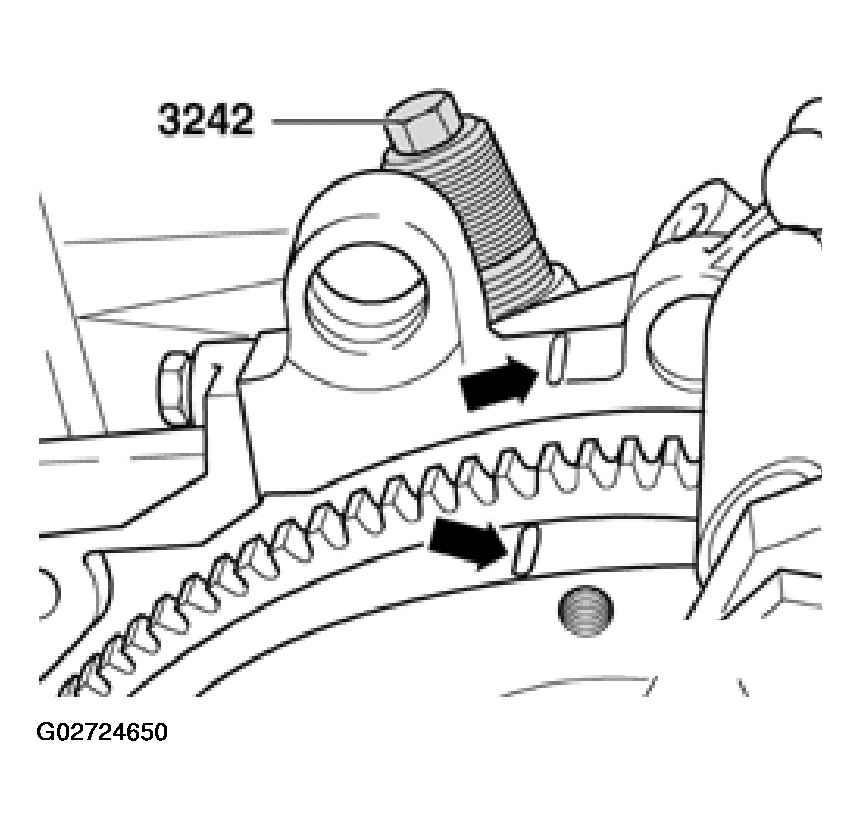

- With crankshaft at Top Dead Center (TDC), install 3242 crankshaft holder.
- Mark position of dual-mass flywheel and engine cylinder block (arrows).
- Remove bolts.
NOTE:
Replacement dual-mass flywheels are not supplied with the pilot needle bearing installed. When replacing the flywheel, always install a new pilot needle bearing.
TIGHTENING TORQUES: DUAL-MASS FLYWHEEL
| Fastener location | Tightening torque |
|---|---|
| Dual-mass flywheel to crankshaft | 60 Nm (44 ft lb) 1/2 -turn (180°) |
| Pressure plate to dual-mass flywheel | 20 Nm (15 ft lb) |
NOTE:
Always replace dual-mass flywheel mounting bolts.
