Work procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Switch ignition off.
Connect Vehicle Diagnostic and Information System VAS 5052 with diagnostic wire VAS 5052/3.

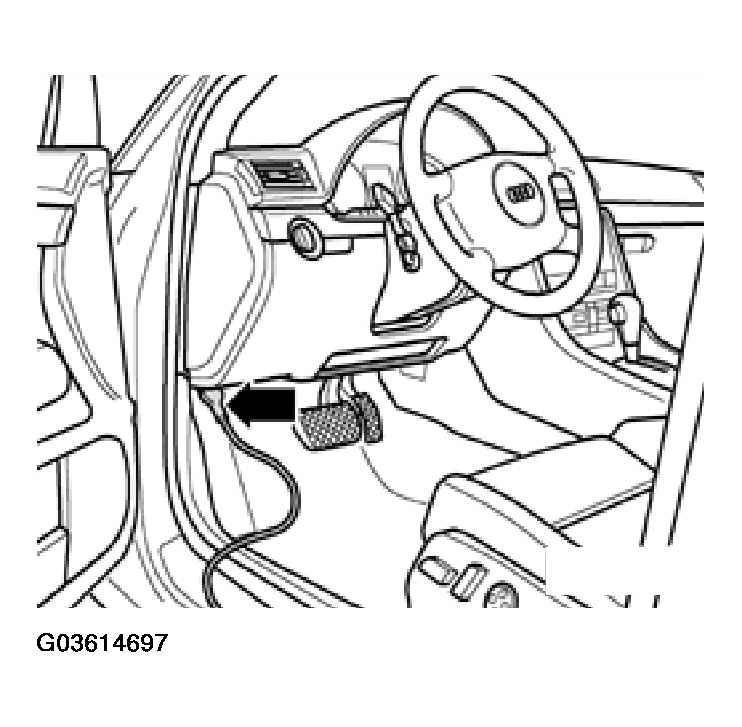

Fig 1: Connecting Vehicle Diagnostic And Information System VAS 5052 With Diagnostic Wire VAS 5052/3

Courtesy of AUDI OF AMERICA, INC.

CAUTION: Observe safety precautions. See SAFETY PRECAUTIONS .

NOTE: If a malfunction message is displayed:

See Operating instructions for Vehicle Diagnostic and Information System VAS 5052

Depending on the desired mode. See SELECT DIAGNOSTIC FUNCTION :

Switch ignition on.

Start engine.
