Measuring value block 140

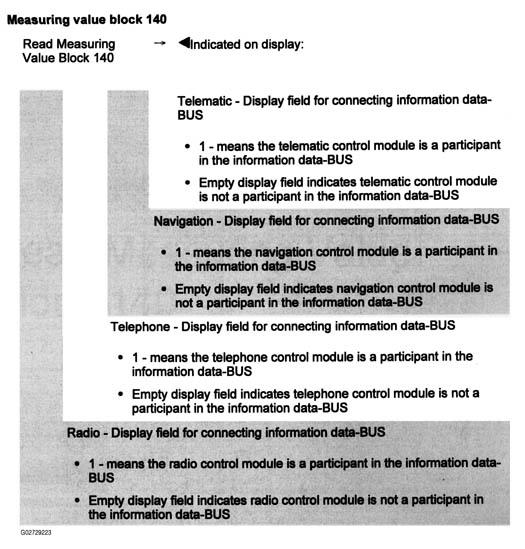

Fig 1: Measuring Value Block 140, Instrument Cluster

G02729223

Courtesy of AUDI OF AMERICA, INC.
