Read Measuring Value Block (function 08)
>>
Display group overview
Display group overview

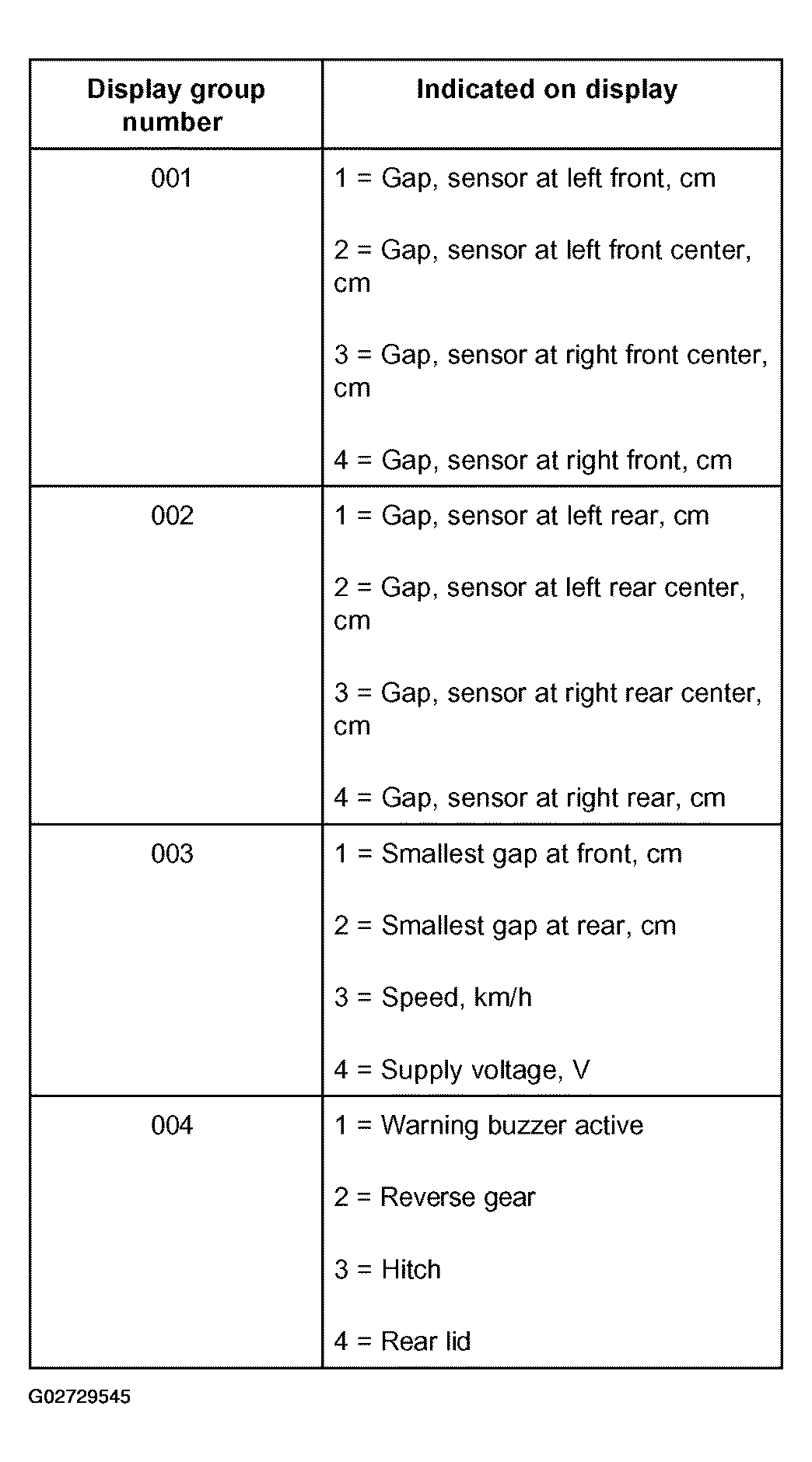

Fig 1: Display Group Overview 001-004, Acoustic Parking System
Courtesy of AUDI OF AMERICA, INC.

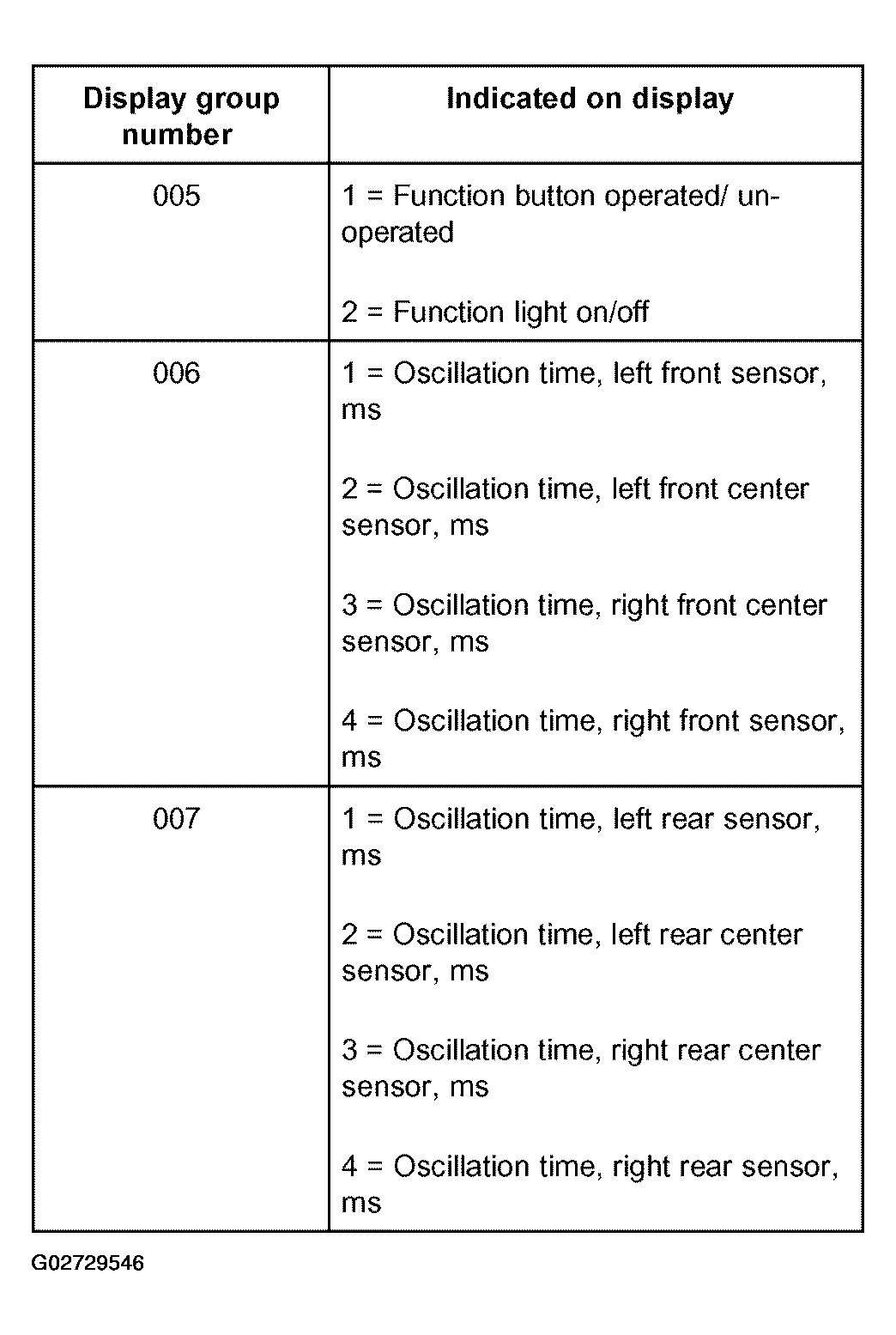

Fig 2: Display Group Overview 005-007, Acoustic Parking System
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
Courtesy of AUDI OF AMERICA, INC.
