Component locations, overview
NOTE:

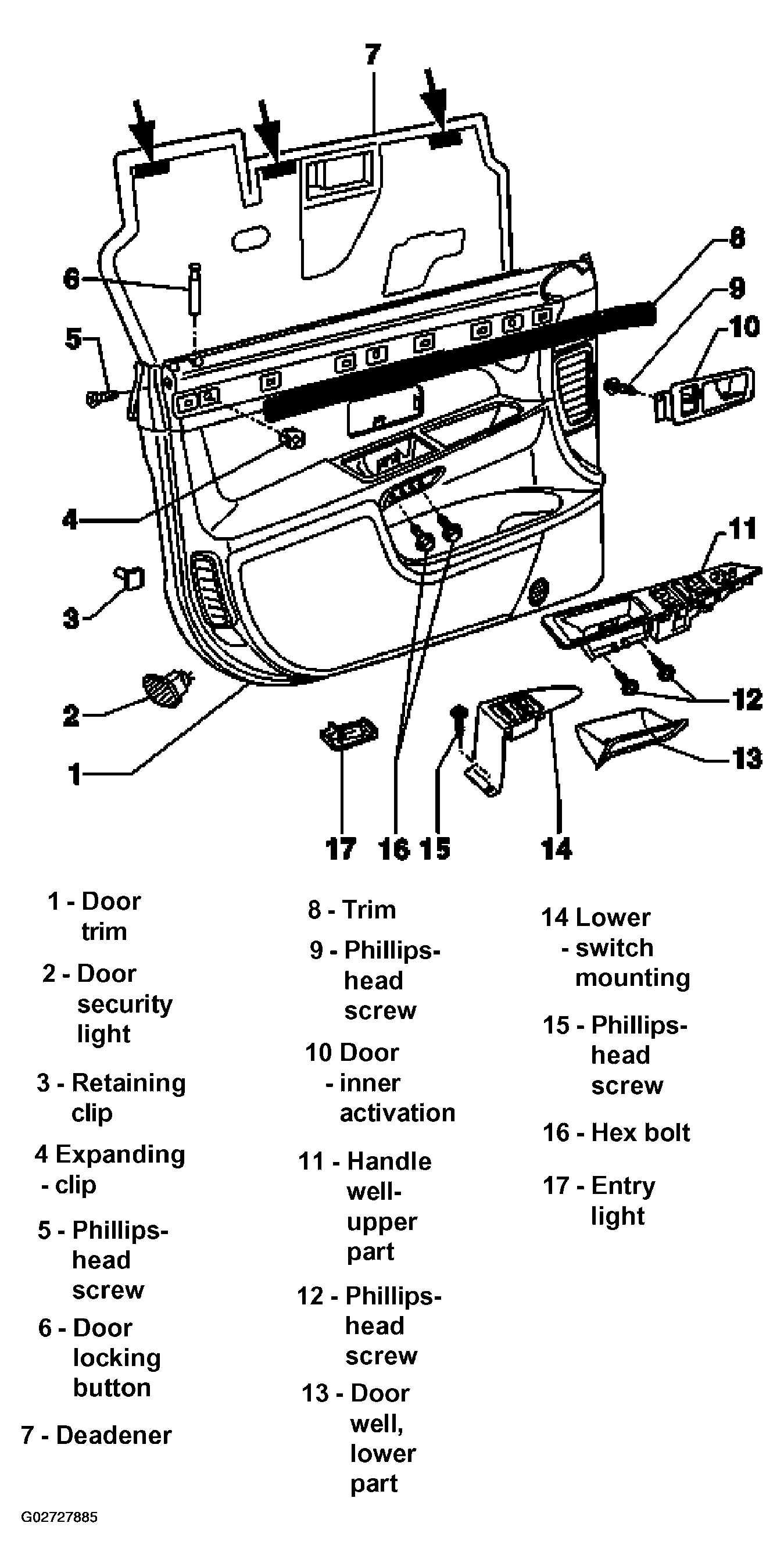

The following list refers to Fig 1.
- Door trim
- Removing. See FRONT DOOR TRIM, REMOVING AND INSTALLING .
- Door security light
- Clipped in door trim
- Retaining clip
- For door trim
- Expanding clip
- To remove, press pin approx. 4 mm inward
- To install, press pin from front until it locks in
- Depending on design status Phillips-head screws can be used instead of expanding clips
- Phillips-head screw
- 1.7 Nm (15 in.lb.)
- Door locking button
- Deadener
- Fasten to adhesive area (arrows) with dual sided tape
- Trim
- Inserted on to door trim
- Pry off carefully
- Phillips-head screw
- 1.8 Nm (16 in.lb.)
- Door inner activation
- Handle well-upper part
- With switch mounting
- To remove handle well, remove lower part and unscrew screws -12-
- Shown in one part version
- Phillips-head screw
- 1.8 Nm (16 in.lb.)
- 2 parts
- Door well, lower part
- Lower switch mounting
- Phillips-head screw
- Hex bolt
- 4.6 Nm (40 in.lb.)
- 2 parts
- Entry light
- Clipped in door trim
