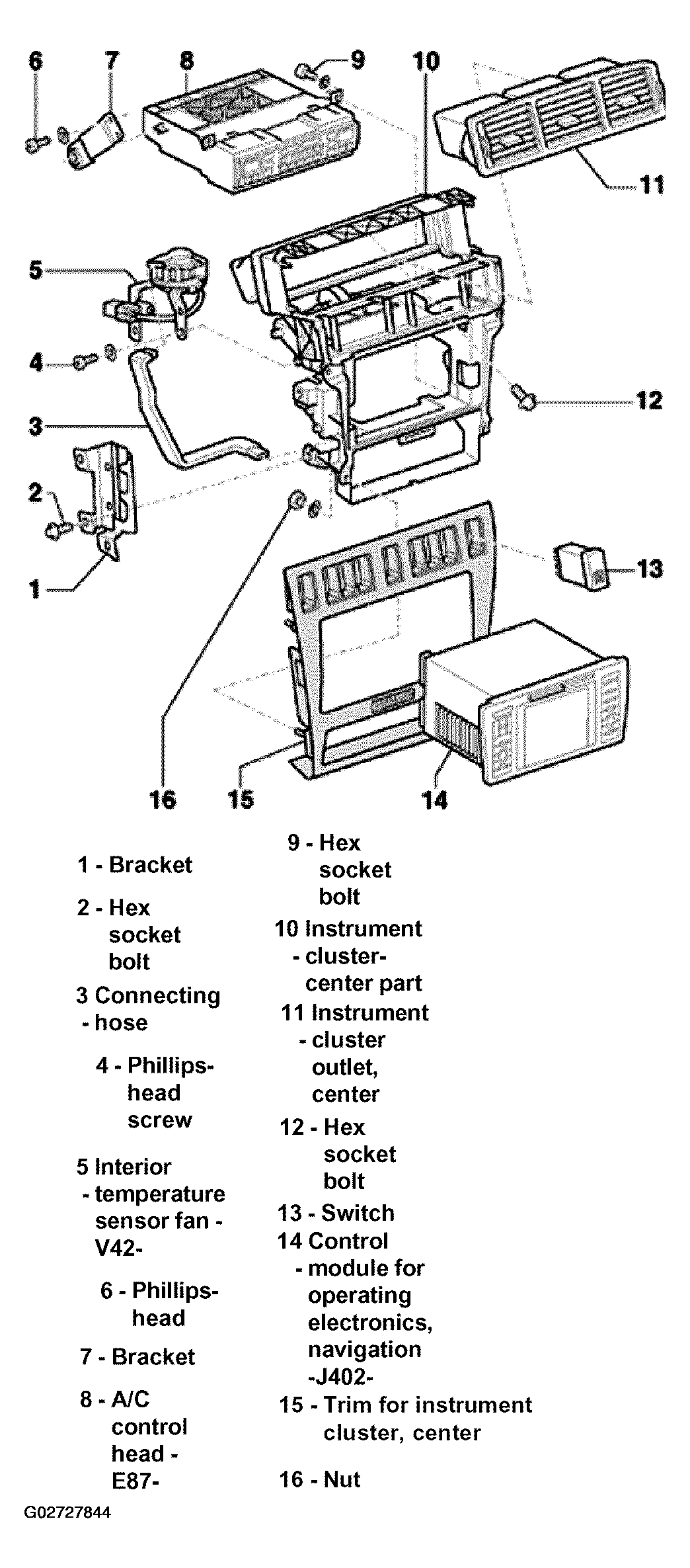

Instrument panel (center), assembly
NOTE:
Illustration shows version with Radio-Navigation system.
NOTE:
The following list refers to Fig 1.
- Bracket
- Hex socket bolt
- 2.5 Nm (22 in.lb.)
- 4 parts
- Connecting hose
- Phillips-head screw
- 1.2 Nm (10 in.lb.)
- 3 parts
- Interior temperature sensor fan -V42-
- Phillips-head screw
- 1.2 Nm (10 in.lb.)
- 4 parts
- Bracket
- A/C control head -E87-
- For air conditioning
- Hex socket bolt
- 2 Nm (17 in.lb.)
- Instrument cluster-center part
- Instrument cluster outlet, center
- Remove using auxiliary tool. See INSTRUMENT PANEL (CENTER), REMOVING AND INSTALLING .
- Hex socket bolt
- 2.5 Nm (22 in.lb.)
- Switch
- To remove, press trim from backside
- Control module for operating electronics, navigation -J401-
- Note coding, ask if necessary
- For removal and installation, see NAVIGATION CONTROL MODULE WITH CD DRIVE -J401-, REMOVING AND INSTALLING or NAVIGATION SYSTEM IV (BNS 4.0) FROM 01.01 .
- Trim for instrument cluster, center
- Nut
- Always replace
- 1.2 Nm (10 in.lb.)
- Self-locking
- 4 parts
