Removing and installing side impact bar

NOTE:
  • Top part -3- and bottom part -4- are caulked to each other and must not be separated.
  • Butyl cord -5- must always be installed; replace if necessary.

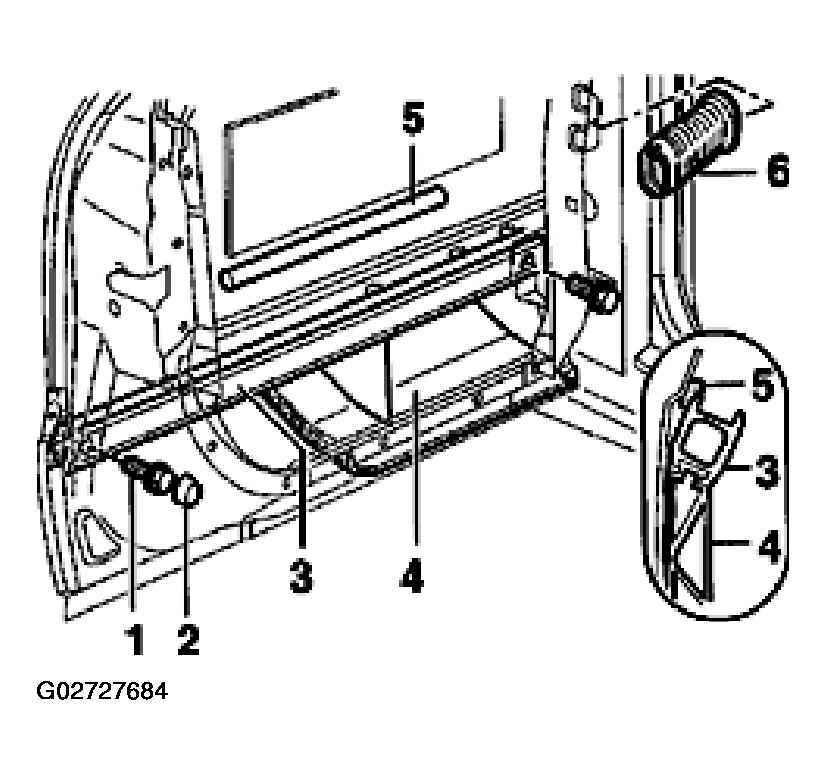

    • Fig 1: Removing/Installing Side Impact Bar
    G02727684Courtesy of AUDI OF AMERICA, INC.
