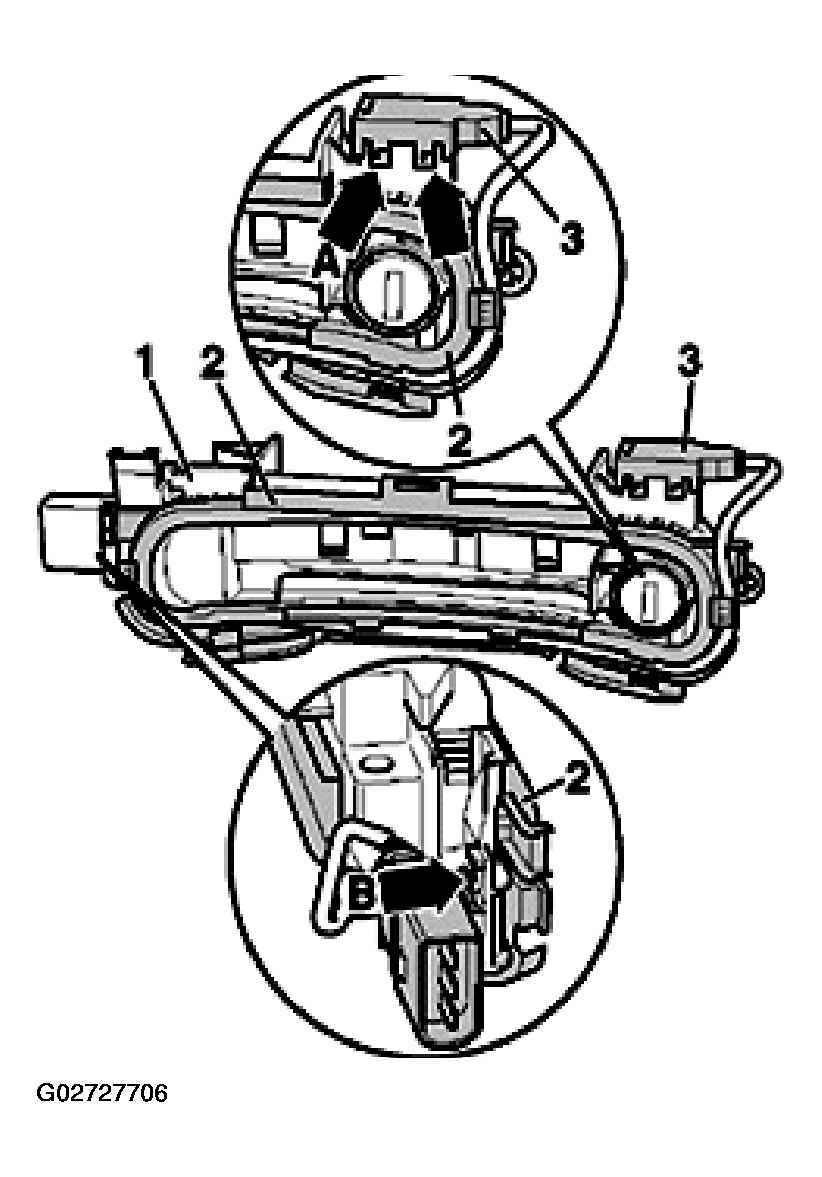

Removing and installing microswitch
- Mount for door handle -1- removed.
- Carefully release locking tabs (arrows) and remove microswitch -3- upward.
- Press back locking mechanism (arrow B) and slide harness connector up and out of mount.
- Pull connecting cable out of seal -2-
- When installing, be sure to press cable completely into seal as shown.
