Front wheelhousing liner, removing and installing
NOTE:

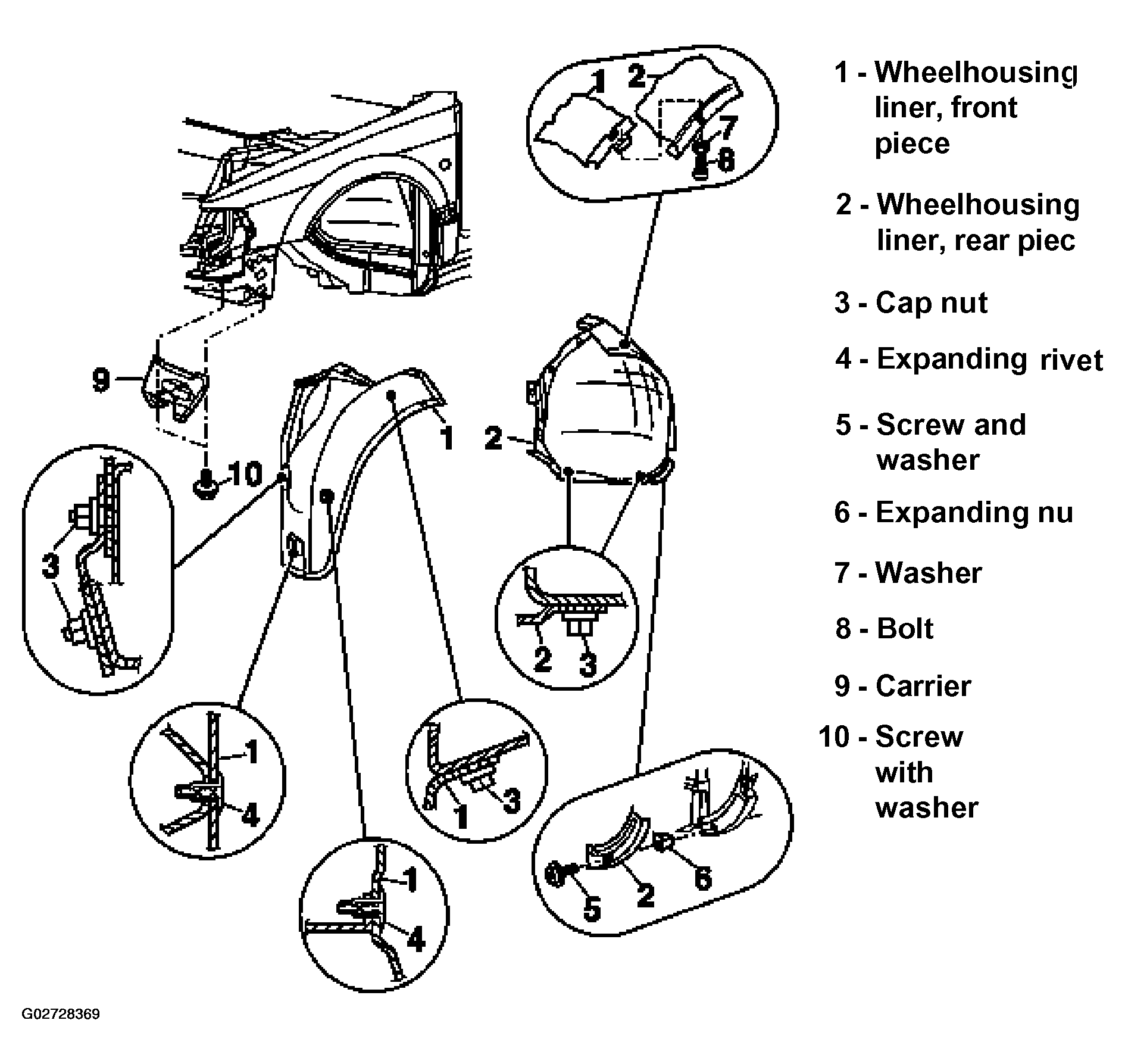

The following list refers to Fig 1
.
- Wheelhousing liner, front piece
Removing:
- To remove, first remove wheelhousing liner front piece completely.
- Remove cap nuts -3-, push through pin of expanding rivet -4-, remove expanding rivet and remove front piece.
- Wheelhousing liner, rear piece
Removing:
- Remove front piece before removing rear piece.
- Remove cap nuts -3-, screws -5- and bolt -8-, and remove rear piece.
- Cap nut
- 1 Nm (9 in. lb)
- Expanding rivet
- Push pin through and pull out expanding rivet.
- Screw and washer
- Expanding nut
- Washer
- Bolt
- Carrier
- For front wheelhousing liner
- To remove, remove screw with washer -10-.
- Screw with washer
