Noise insulation panel, removing and installing

NOTE: The following list refers to Fig 1 .
  1. Noise insulation panel, front

    Removing:

    • Remove quick-release screw -2-.
    • Pull noise insulation panel slightly downward and remove toward back.
    • When installing, push noise insulation over bumper -6- into bracket, as shown in bubble.
  2. Quick-release screws (6x)
  3. Washers (6x)
  4. Lock washers (6x)
  5. Speed nut
  6. Front bumper

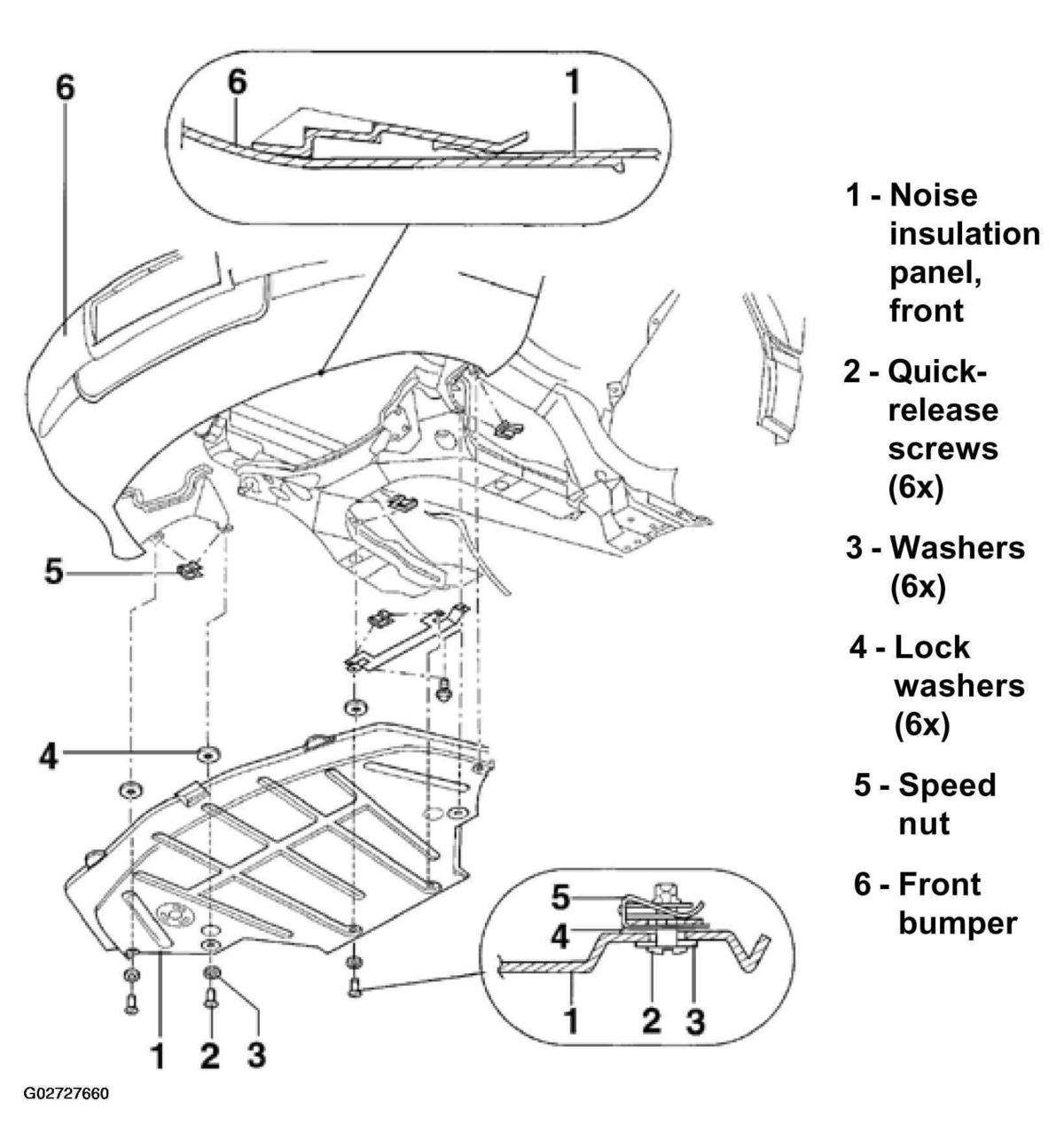

    7. Fig 1: Exploded View Of Noise Insulation Panel
    G02727660Courtesy of AUDI OF AMERICA, INC.
