V.A.G 1551 scan tool, connecting

NOTE: The scan tool V.A.G 1552 can be used instead of the scan tool V.A.G 1551, however a print out is not possible.

Test requirements:

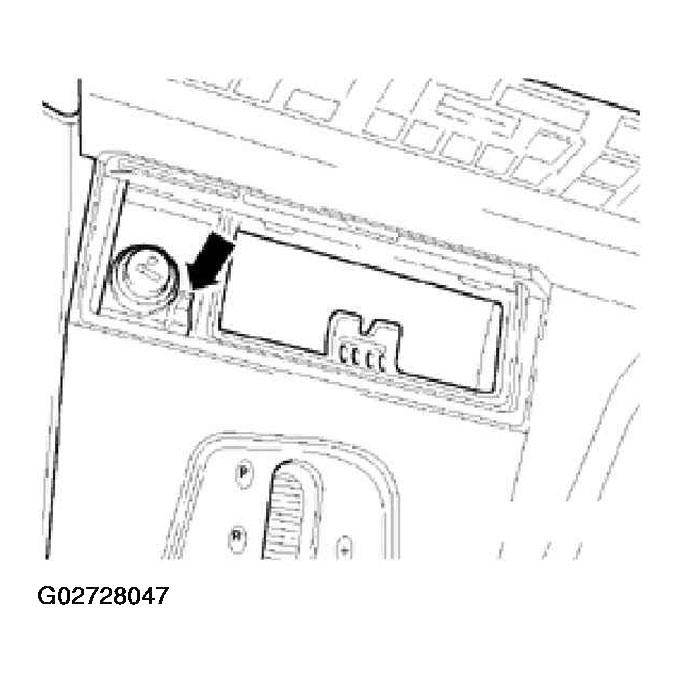

Release ashtray in center console by pressing small lever -arrow-.
Remove ashtray from center console and remove cover for diagnostic plug.

Fig 1: Releasing Ashtray In Center Console By Pressing Small Lever
Courtesy of AUDI OF AMERICA, INC.

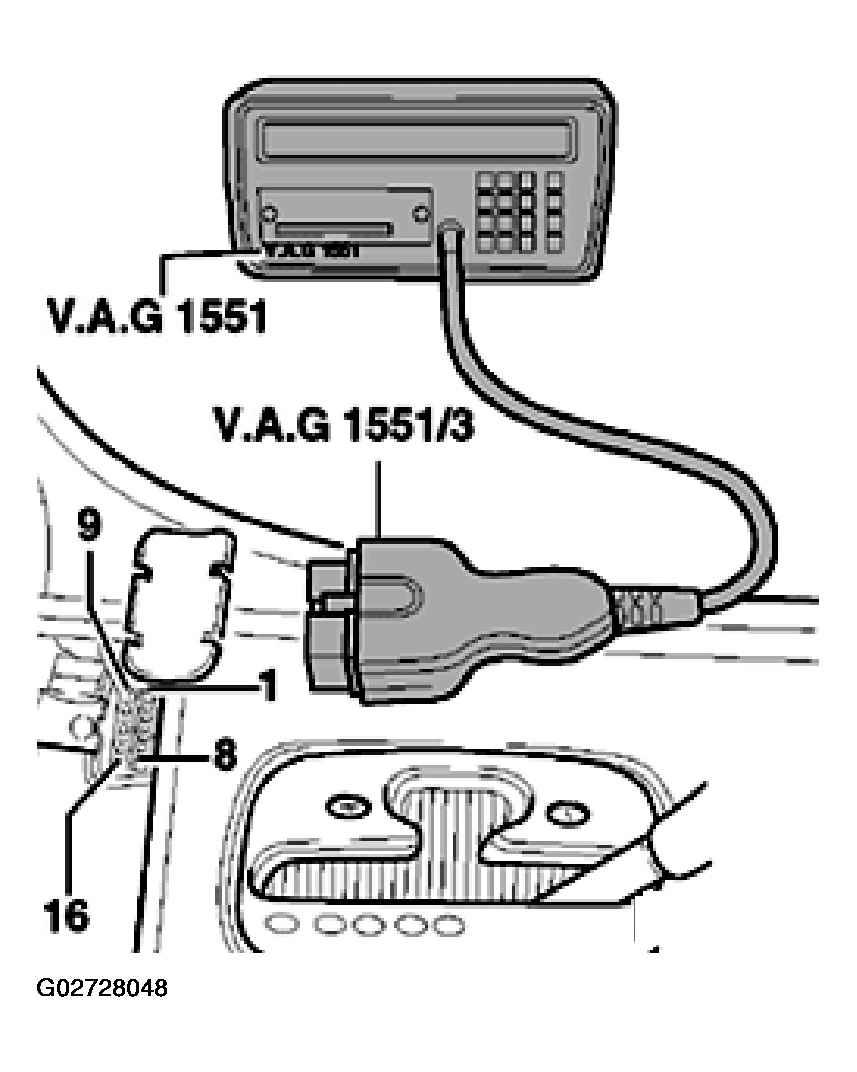

Connect scan tool V.A.G 1551 or scan tool V.A.G 1552 using cable V.A.G 1551/3.

Fig 2: Connecting Scan Tool V.A.G 1551 Or Scan Tool V.A.G 1552 Using Cable V.A.G 1551/3
Courtesy of AUDI OF AMERICA, INC.

Indicated on display:

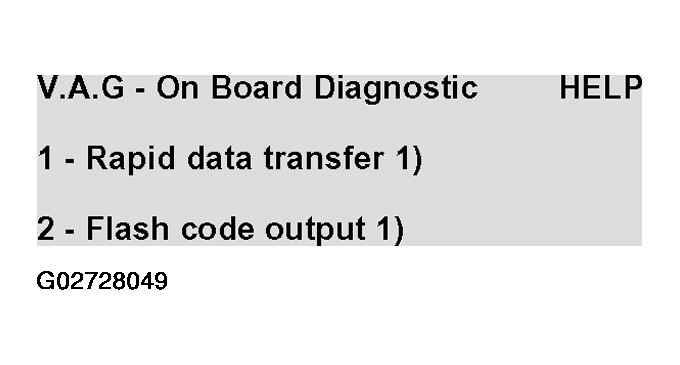

Fig 3: V.A.G 1551 Scan Tool Display - Connecting V.A.G 1551 Scan Tool (1 Of 7)

Courtesy of AUDI OF AMERICA, INC.

NOTE: If the display remains blank:

See scan tool operating instructions

Switch on the scan tool printer with the print key. The warning lamp in the key must light up.
Enter "1" to select "Rapid data transfer".

Indicated on display:

Fig 4: V.A.G 1551 Scan Tool Display - Connecting V.A.G 1551 Scan Tool (2 Of 7)

Courtesy of AUDI OF AMERICA, INC.

NOTE:

Address word 00 implements the automatic test sequence, i.e. the interrogation of the DTC memory via rapid data transfer for all vehicle systems with On Board Diagnostic (OBD) capability.
Indicated on display:

Fig 5: V.A.G 1551 Scan Tool Display - Connecting V.A.G 1551 Scan Tool (3 Of 7)

Courtesy of AUDI OF AMERICA, INC.

Press HELP key to print out a list of possible malfunction causes.
Perform troubleshooting in line with troubleshooting instructions for diagnostic cable.

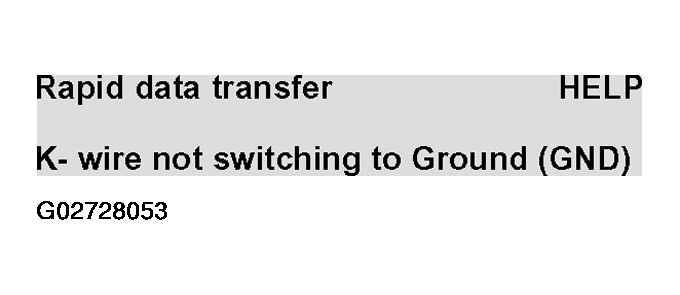

Fig 6: V.A.G 1551 Scan Tool Display - Connecting V.A.G 1551 Scan Tool (4 Of 7)
Courtesy of AUDI OF AMERICA, INC.

See the appropriate System Wiring Diagrams article.

Fig 7: V.A.G 1551 Scan Tool Display - Connecting V.A.G 1551 Scan Tool (5 Of 7)

Courtesy of AUDI OF AMERICA, INC.

Fig 8: V.A.G 1551 Scan Tool Display - Connecting V.A.G 1551 Scan Tool (6 Of 7)

Courtesy of AUDI OF AMERICA, INC.

Fig 9: V.A.G 1551 Scan Tool Display - Connecting V.A.G 1551 Scan Tool (7 Of 7)

Courtesy of AUDI OF AMERICA, INC.
