Hands-free Telephone through m.y. 2001, layout
NOTE:
The hands-free telephone is optional equipment.
NOTE:

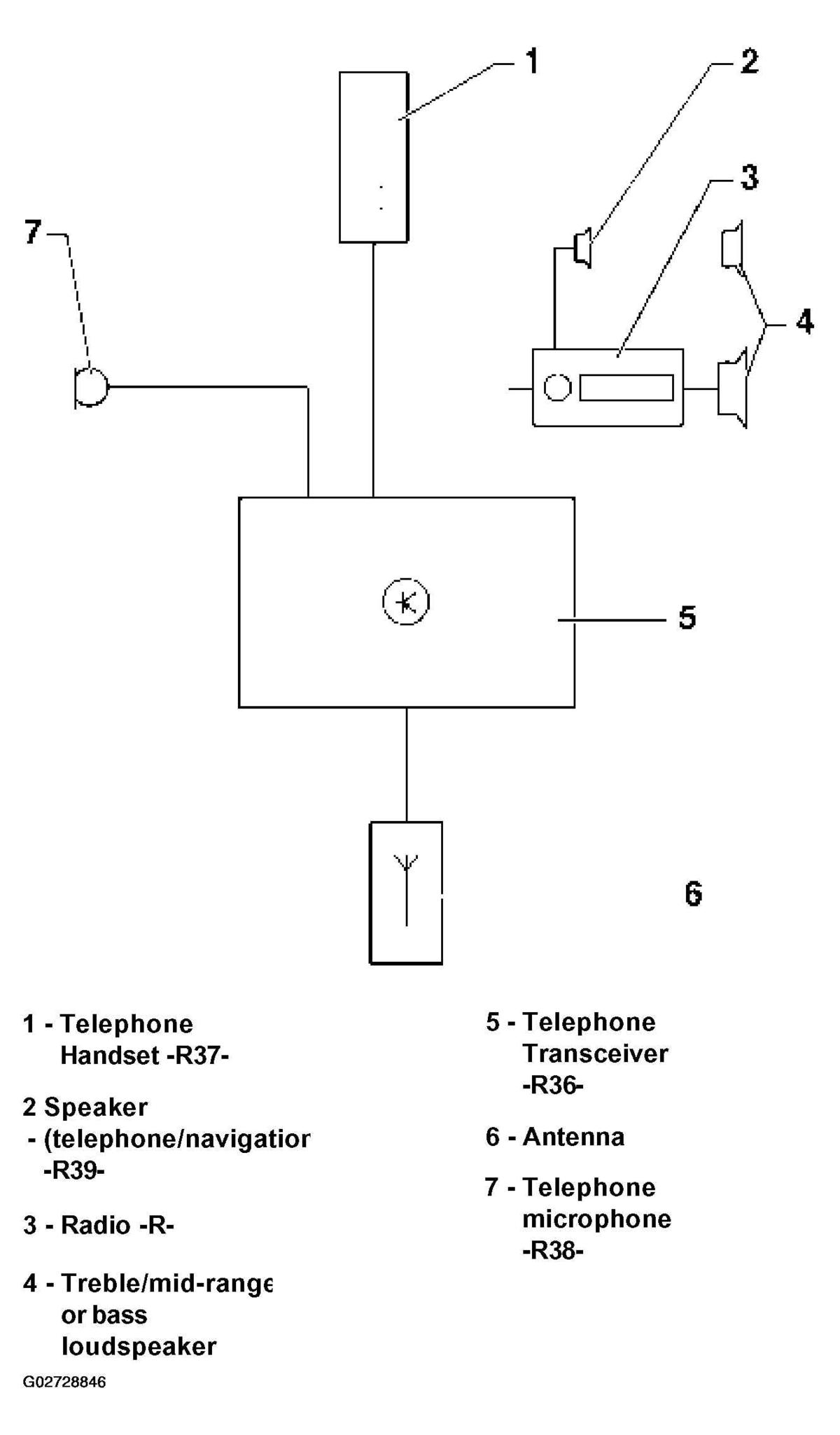

The following list refers to items in Fig 1
.
- Telephone Handset -R37-
- In center console
- Removing and installing docking station. See TELEPHONE DOCKING STATION IN CENTER CONSOLE, REMOVING AND INSTALLING .
- In center armrest
- Removing and installing docking station. See TELEPHONE DOCKING STATION RETAINER/BRACKET IN CENTER ARMREST, REMOVING AND INSTALLING
- Speaker (telephone/navigation) -R39-
- In driver's B-pillar trim
- Removing and installing. See SPEAKER (TELEPHONE/NAVIGATION) -R39-, REMOVING AND INSTALLING
- Radio -R-
- In center console.
- Removing and installing from. See "DELTA" & "CONCERT" RADIO, REMOVING AND INSTALLING .
- Treble/mid-range or bass loudspeaker
- In front door panel trim
- Removing and installing. See LOUDSPEAKERS, REMOVING AND INSTALLING .
- Telephone Transceiver -R36-
- In left rear luggage compartment storage box
- Removing and installing. See TELEPHONE TRANSCEIVER -R36-, REMOVING AND INSTALLING
- Antenna
- On rear window
- Telephone microphone -R38-
- Integral with front interior light module
- Removing and installing
- Through m.y. 1999. See TELEPHONE MICROPHONE -R38- THROUGH M.Y. 1999, REMOVING AND INSTALLING .
- From m.y. 2000. See TELEPHONE MICROPHONE -R38- FROM M.Y. 2000, REMOVING AND INSTALLING .
