Telematics system, layout
NOTE:

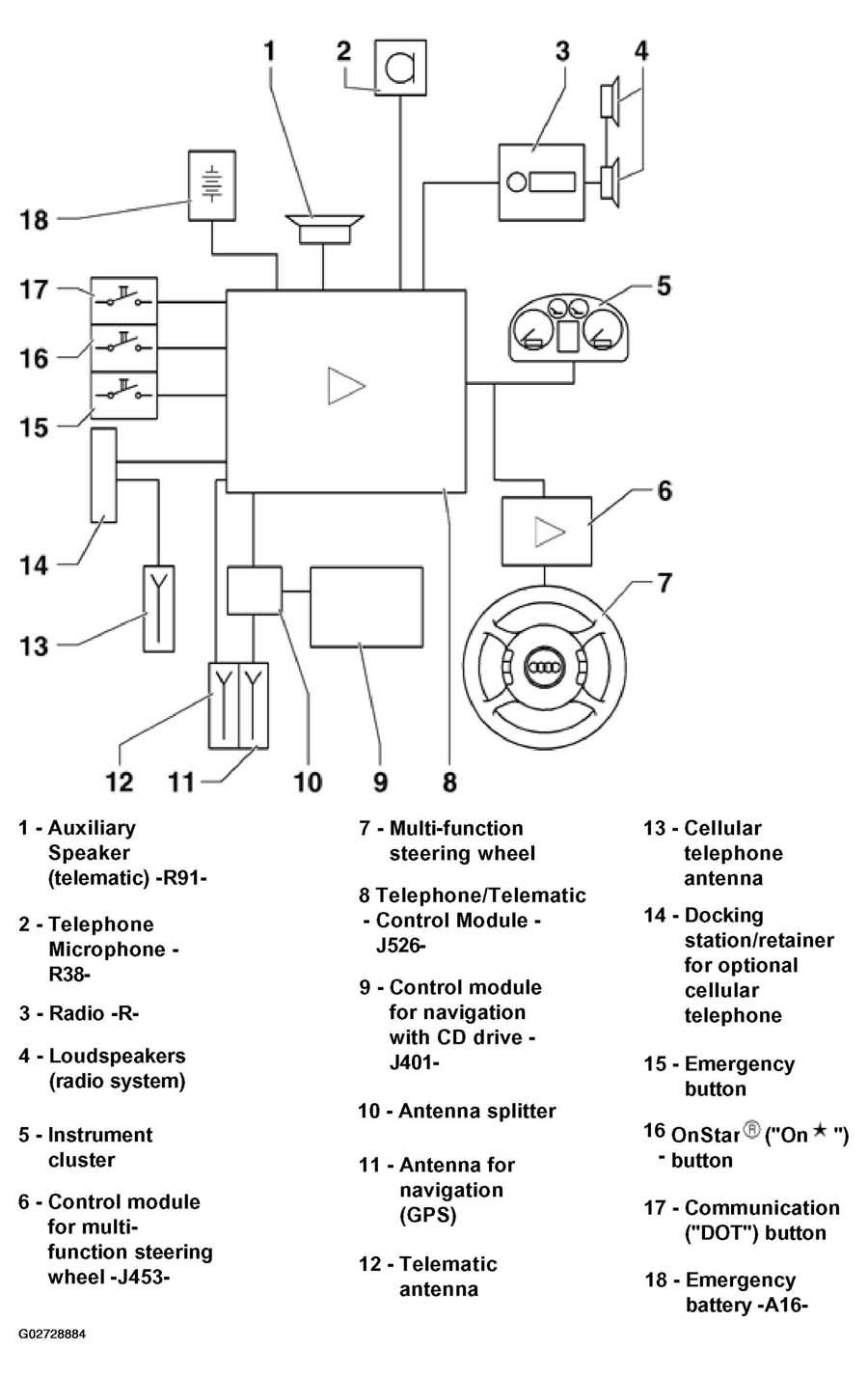

The following list refers to items in Fig 1
.
- Auxiliary Speaker (telematic) -R91-
- In right B-pillar
- Telephone Microphone - R38-
- In front interior light module
- Radio -R-
- Loudspeakers (radio system)
- In front door panels
- Instrument cluster
- Control module for multifunction steering wheel -J453-
- In 13-position relay carrier below driver's side storage compartment
- Multi-function steering wheel
- Telephone/Telematic Control Module - J526-
- In front passenger's footwell
- Control module for navigation with CD drive - J401-
- In left rear luggage compartment storage box
- Antenna splitter
- In left rear luggage compartment storage box
- Antenna for navigation (GPS)
- On roof
- Integral with telematic antenna
- Telematic antenna
- On roof
- Integral with GPS antenna
- Cellular telephone antenna
- In rear bumper
- Docking station/retainer for optional cellular telephone
- In center console
- Emergency button
- In Telematic Control Head - E264-
- OnStar(R) ("On ") button
- In Telematic Control Head - E264-
- Emergency battery -A16-
- On Telephone/Telematic Control Module - J526-
